Falcon CR-Laser Faq

Machine
1、How large is the working area of CR-Laser Falcon?
400mm*415mm
2、What's the type of the laser source?
Semiconductor laser unit
3. What's the radium engraving on the machine profile used for?
It is convenient to measure the size of the object and assist in locating the engraving area .
4、What will happen if the machine powered off during working？
It will stop working. The machine will be initialized when powered on.
5、Why is the engraving effect so shallow？
The imported image should be clear. Make sure that focusing correctly before engraving and
the power and speed are appropriate.
6、Why is the engraved effect different from the original image?
Check that the screws are tight and the belt is not too loose or too tight.
The tightness of the belt is appropriate if the laser module can slide slowly on the X-axis
profile perpendicular to the desktop by gravity, and any pulley in the laser module has no empty
sliding.
7、What should I do if the engraving effect is inconsistent in depth?
Ensure that the material to be engraved is flat. Observe the gradienter on the machine to
ensure that the machine is horizontal, and has been properly adjusted according to the operation
method of the user manual.

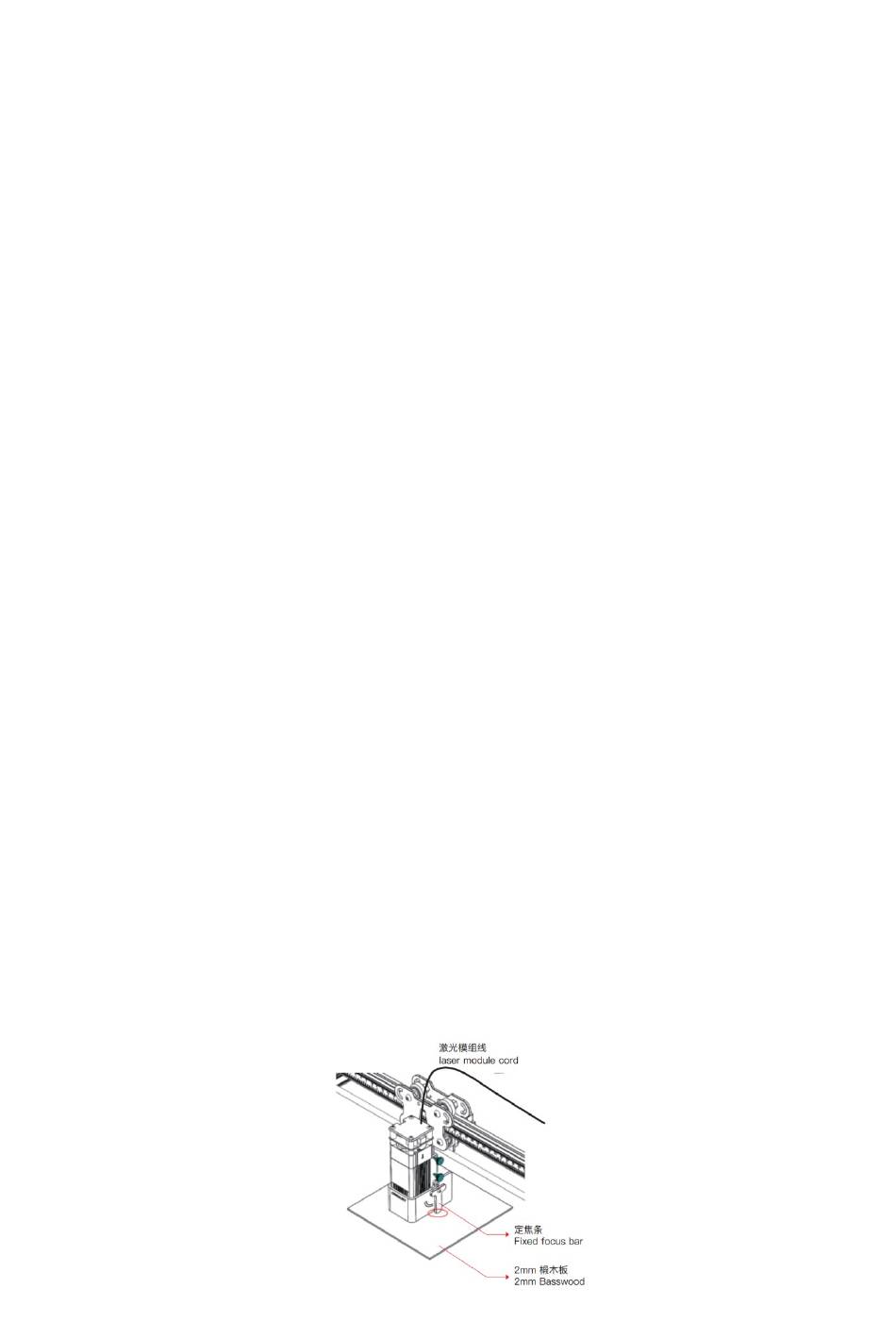

8、How to focus？
5W
Place the engraving material in the processing area before powering on, adjust the hand -tight
nut on the right side of the laser module, and turn the fixed focus bar counterclockwise to make it
contact with the surface of the material when it is naturally vertically downward. Then tighten the
hand-tight nut and turn the focus bar clockwise until it is attracted by the magnet.
CR-Laser Falcon FAQ
