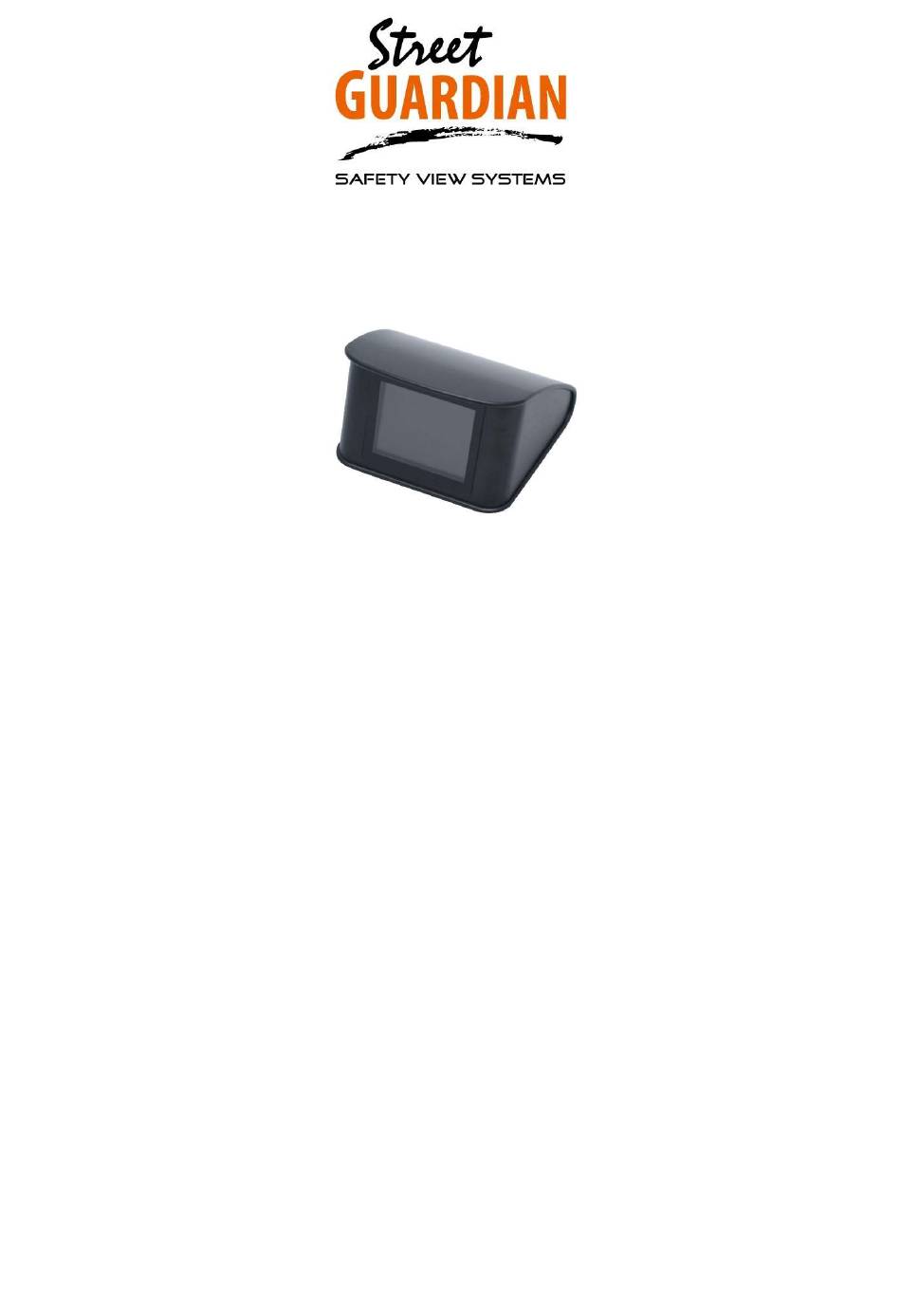

- Page 1 Auxiliary display sgobdad USER guide...
- Page 2 Product safety & precautions Thank you for purchasing the Street Guardian SGOBDAD Auxiliary Display, please read and follow this quick start guide before installation and use. The Auxiliary Display is designed to operate best at temperatures of between -20 c to +70 c, operating outside ...
- Page 3 Introduction The Street Guardian SGOBDAD Auxiliary Display is designed to be used as an additional easy to read speed display and can support a number of extra convenience and safety features. SGOBDAD features Speed Alert RPM alert Voltage alert Coolant temp alert...
- Page 4 The SGOBDAD is compatible with most OBDII and EUOBD formats in vehicles as follows Made in Australia - post 1 January 2006 Made in China (Petrol) - post 1 January 2010 Made in China (Diesel) - post 1 January 2011...
- Page 5 The speed information is taken directly from the vehicle ECU, the speedo in the vehicle is typically configured to display faster than actual speed, if using the SGOBDAD as...
- Page 6 an accessory display only you may wish to match the speed displayed to the same as what the vehicle speedo shows, in that case you can use the Speed Adjust menu option and adjust accordingly. When deciding the adjustment, it’s easiest to note the speed at 100km/h and compare the result between the vehicle displayed speed and the device display, adjustments to this setting should not be done...
- Page 7 Settings & KEY functions 1. Menu multi setting button 2. Light sensor 3. Power input The menu multi setting button operates by moving left or right, or by short or long press depending on the function required.
- Page 8 Short press in display mode will cycle through the various display options, short press in menu mode to enter any submenu or select and confirm a setting. Push left in display mode will change the display item on the left side, continue to push left to cycle through the various display options.
- Page 9 – sgobdad Language set – Allows you to choose the default display language (English) Sound Switch – Allows you to enable or disable the warning sounds (On) Speed Alarm – Selectable over speed warning (115 km/h) Coolant Alarm – Selectable option for overheat warning (120°C)
- Page 10 Change Colour 1 – Selectable option for the main display (White) Change Colour 2 – Selectable option for the left side menu display (Red) Change Colour 3 – Selectable option for the right side menu display (Green) Brightness – Selectable setting to control the LCD brightness (Auto) Temp Unit –...
- Page 11 Street Guardian. Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in...
- Page 12 This warranty does not cover transportation to or from the Street Guardian Service Centre. Goods presented for repair may be replaced by goods of equal type rather than being repaired. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to sending for repair.
- Page 13 Conformity Declaration The SGOBDAD complies with the requirements of EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2014, EN 61000-4-6:2014, EN 61000-4-8:2010, EN 61000-4-11:2004 according to directive 2014/30/EU and the associated standards and technical specifications...
- Page 14 The pictures used are for illustration purposes only. Information about the latest specification, amendments, the availability of replacement parts and accessories, warranty information, detail of other sales region product specifications and their respective user manuals are available on our website. www.streetguardian.info © Street Guardian 2018...
