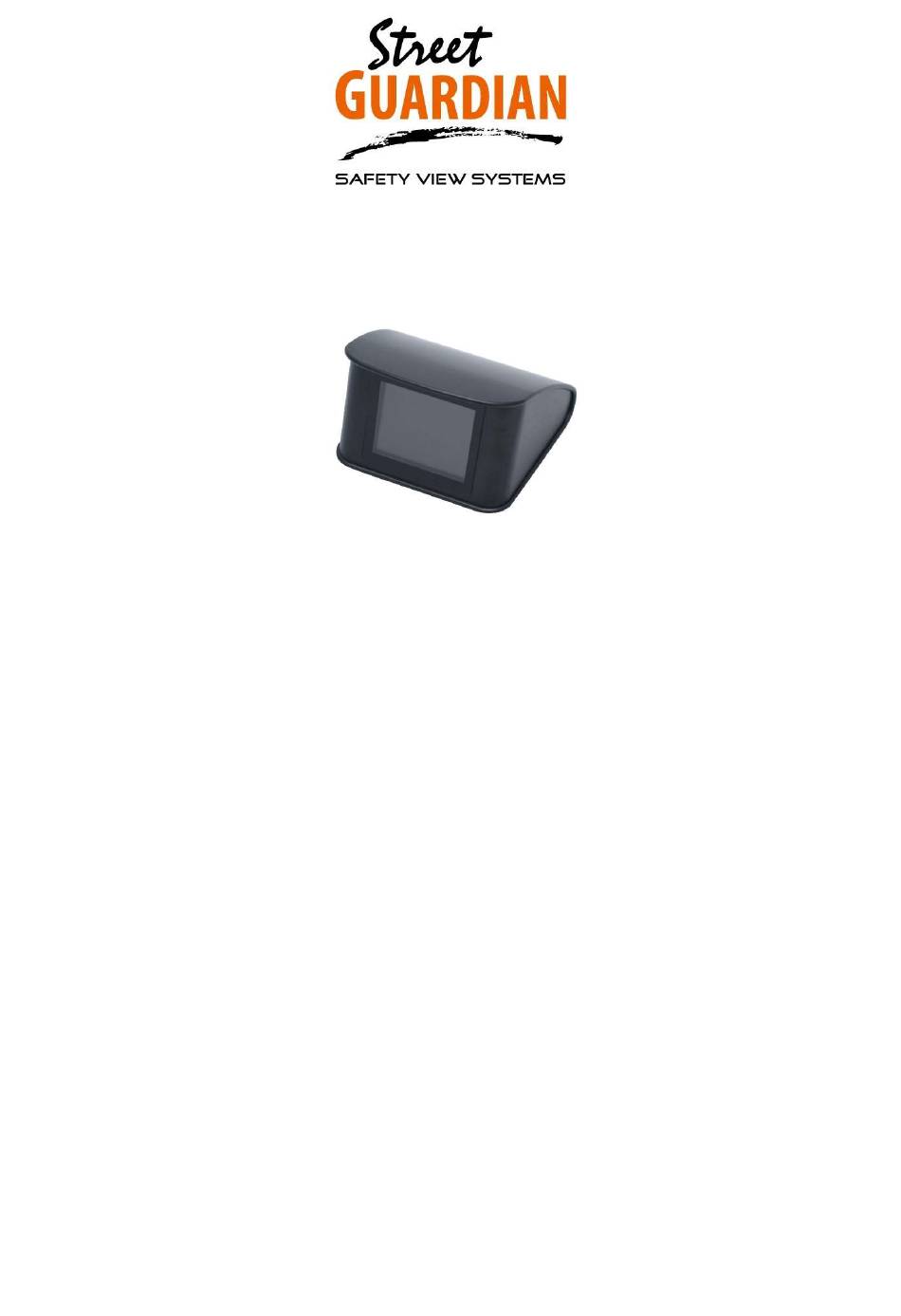

- Page 1 Auxiliary display Sggpsad user guide...
- Page 2 Product safety & precautions Thank you for purchasing the Street Guardian SGGPSAD Auxiliary Display The Auxiliary Display is designed to operate best at temperatures of between -20 c to +70 c, operating outside of these temperatures may produce unpredictable results and should be avoided.
- Page 3 Introduction The Street Guardian SGGPSAD Auxiliary Display is designed to be used as an additional easy to read speed display and can support a number of extra convenience and safety features. SGGPSAD features Speed alert GPS time Voltage alert Auto brightness...
- Page 4 Installation & configuration Choose a suitable mounting location where the unit is easy to see and cables can be routed without causing any interference with the operation of the vehicle. Use the appropriate mounting option to suit your vehicle, rubber sticky pad or Velcro adhesive, ensure that the cables have enough clearance to avoid damage and any excess cable is cable tied or routed so as not to interfere with the driving...
- Page 5 Settings & KEY functions 1. Menu multi setting button 2. Light sensor 3. Power input The menu multi setting button operates by moving left or right, or by short or long press depending on the function required.
- Page 6 Short press in display mode will cycle through the various display options, short press in menu mode to enter any submenu or select and confirm a setting. Push left in display mode will change the display item on the left side, continue to push left to cycle through the various display options.
- Page 7 Menu options Language set – Allows you to choose the default display language (English) Sound Switch – Allows you to enable or disable the warning sounds (On) Speed Alarm – Selectable over speed warning (115 km/h) Bat Alarm – Selectable low voltage warning (Off) Speed Adjust –...
- Page 8 Brightness – Selectable setting to control the LCD brightness (Auto) Speed Unit – Selectable MPH or km/h display (km/h) Power off time – Selectable power off time for vehicles without a switched power source (180sec) Sleep Voltage – Selectable voltage for power off for vehicles without a switched power source (Off) Time Adjust –...
- Page 9 Gps overview When the SGGPSAD is first powered on it will begin looking for satellite signals, if the SGGPSAD has not been used for several hours the time setting will revert to the selected offset value when there is no GPS signal, once signal has been detected the clock will update, once this has happened the GPS will begin negotiating the connection.
- Page 10 There are three distinct modes for the GPS, Cold start, Warm start and Hot start, A cold start is when the GPS has been off for more than 4 hours and this process must begin from scratch each time based on Almanac data of roughly where the Satellites might be.
- Page 11 It’s typical behaviour for the GPS to be slower to catch the signal initially when starting up undercover and with no signal, when there is no signal and a cold start or warm start happens if you don't get access to open sky within a relatively short time the GPS effectively gives up looking where it thinks it should be looking and starts looking elsewhere for signal which might not always be the...
- Page 12 Street Guardian. Please retain your sales documentation, as this should be produced to validate a warranty claim. This warranty is in...
- Page 13 This warranty does not cover transportation to or from the Street Guardian Service Centre. Goods presented for repair may be replaced by goods of equal type rather than being repaired. The repair of your goods may result in the loss of user generated data, please ensure that you have saved this data elsewhere prior to sending for repair.
- Page 14 Conformity Declaration The SGGPSAD complies with the requirements of EN 55032:2015 + EN 55035:2017 according to directive 2014/30/EU and the associated standards and technical specifications and is therefore entitled to bear the CE symbol.
- Page 15 The pictures used are for illustration purposes only. Information about the latest specification, amendments, the availability of replacement parts and accessories, warranty information, detail of other sales region product specifications and their respective user manuals are available on our website. www.streetguardian.info © Street Guardian 2018...
