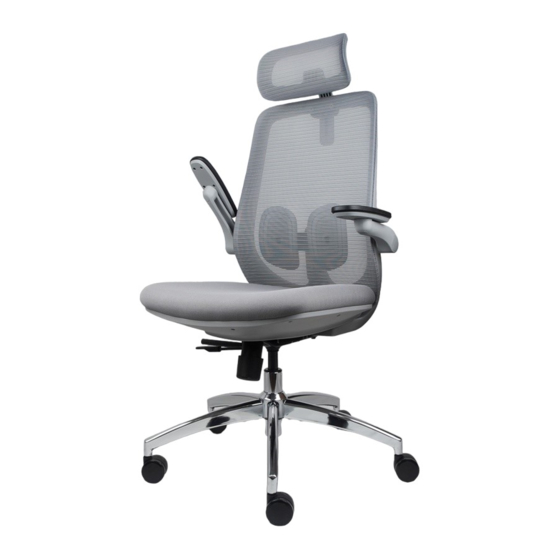

- Page 1 2022/2023 INSTRUCTION MANUAL ALTERSEAT (M) SDN BHD Add: B-1, 20, Jalan Persiaran Jalil 1, Bukit Jalil 57000 Kuala Lumpur. Tel: (+60) 166018581 Web: https://alterseat.com/...
- Page 2 TABLE OF CONTENTS INTRODUCTION………………………………………………….. 1 PARTS OF THE CHAIR…………………………………………… 2 INSTALLATION OF THE CHAIR……………………………… 3 ADJUSTING YOUR SEAT………………………………………… 12...
- Page 3 INTRODUCTION Welcome to the Alterseat Team and thank you altering your ergonomic experience with This product manufactured and designed solely by Alterseat (M)Sdn.Bhd. We specialize in producing and manufacturing office chairs for over 20 years including other furniture. Before proceeding into this manual, ensure that after unpacking and before any assembly, all items and parts of installation are clear of any damages.
- Page 4 PARTS OF THE CHAIR I PU Castors 5PCS Aluminium Heel 5PCS Aluminium Alloy Heel Connector Cap of Aluminium Heel Screws M6x15 2PCS Headrest Gas Lift Wrench Armrest 2PCS...
- Page 5 PARTS OF THE CHAIR II Gasket 4PCS Backframe Screws M6x45 5PCS Chassis Screws M6x35 4PCS Armrest Screws M8x40 2PCS Headrest Screws M6x20 2PCS Headrest Screws Cover Cap Cushion Mechanism Components Backframe...
- Page 6 ATTACHING THE FIVE-STAR-FOOT Remove the Cap from Aluminium Connector. Insert 5 of the Heels to the Connector. Pick “Detachable feet installation screws” to install the heel.
- Page 7 ATTACHING THE CASTORS Wrench install all the screws. Insert 5 of the Castors at the bottom of the Heel. Insert the Cap back to the Connector.
- Page 8 ATTACHING THE GAS LIFT Insert the Gas Lift to the Base. Place the Mechanism Component Cushion Seat. Pick “Backframe installation screws” to install.
- Page 9 ATTACHING THE MECHANISM Make sure there are 4 short screws + 5 long screws. (*colour varies) Insert 4 of the Gasket to the shorter screw. Insert 4 of the screws with the Gasket and install with Wrench.
- Page 10 ATTACHING THE BACKFRAME Gently attach Backframe Cushion Seat. Insert 5 of the longer screws and install it with the Wrench. Pick “Armrest installation spare part” to install the armrest.
- Page 11 ATTACHING THE ARMREST Insert the screw into the Armrest and Backframe. Install with Wrench. Spot the R & L indicator inside the Cover Cap. Insert the Cover Cap to Armrest accordingly.
- Page 12 ATTACHING THE HEADREST Pick “Headrest installation spare part” to install the Headrest. Insert 2 of the screws into the Headrest and Backframe. Install with the Wrench. Insert 2 of the Cover Cap to the hole.
- Page 13 ATTACHING THE TOP & BOTTOM PART Insert the top part to the bottom part of the chair. You are now ready to sit with Alterseat!
- Page 14 ADJUSTING YOUR SEAT...
- Page 15 ADJUSTING YOUR SEAT HEADREST A. Height: Adjust in an upward and downward motion. B. Angle: Tilt forward and backward.
- Page 16 ADJUSTING YOUR SEAT ARMREST C. Left and Right: Move armrest to angled left or right.
- Page 17 ADJUSTING YOUR SEAT ARMREST D. Foldable: Armrest can fold backwards.
- Page 18 ADJUSTING YOUR SEAT LUMBAR SUPPORT E. Adjust in an upward and downward motion.
- Page 19 2022/2023 THANK YOU ALTERSEAT (M) SDN BHD Add: B-1, 20, Jalan Persiaran Jalil 1, Bukit Jalil 57000 Kuala Lumpur. Tel: (+60) 166018581 Web: https://alterseat.com/...
