- Page 1 2021/2022 INSTRUCTION MANUAL for REVO-101 ALTERSEAT (M) SDN. BHD. Add: B-1, 20, Jalan Persiaran Jalil 1, Bukit Jalil, 57000 Kuala Lumpur Tel: 03-5033 2690 Web: www.alterseat.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ………………………………………………………………………… PARTS OF THE CHAIR ………………………………………………………………. ATTACHING THE HEADREST …………………………………………………… CONNECTING THE GAS LIFT …………………………………………………… CONNECTING THE TOP PIECE WITH LEG ………………………………... -
Page 3: Introduction
INTRODUCTION Welcome to the Alterseat Team and thank you altering your ergonomic experience with us. This product is manufactured and designed solely by Alterseat (M) Sdn. Bhd. We specialize in producing and manufacturing office chairs for over 20 years including other furniture. -
Page 4: Parts Of The Chair

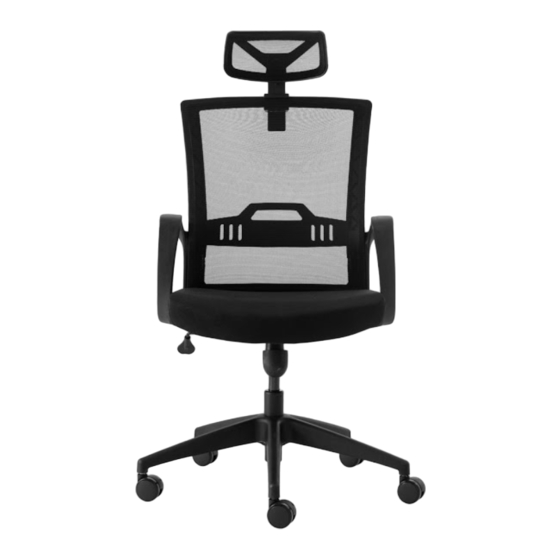

PARTS OF THE CHAIR TOP PIECE Back Piece Seat Piece Gas Lift Aluminum Base HEAD PIECE Headrest... -
Page 5: Attaching The Headrest
ATTACHING THE HEADREST HEAD PIECE INSTRUCTIONS A. Using the Allen Key provided, remove the 2 screws (loosely attached) to the headrest area of the top piece. B. Align the headrest according to the 2 pilot holes and tighten the screws with the same Allen Key provided. -
Page 6: Connecting The Gas Lift
CONNECTING THE GAS LIFT GAS LIFT W ALUMINUM BASE Gas Lift Aluminum Base INSTRUCTIONS F. Insert the wider end of the Gas Lift into the Aluminum Base. Note: No ‘click’ sound will be heard. -
Page 7: Connecting The Top Piece With Leg
CONNECTING THE TOP PIECE W LEG TOP PIECE W LEG PART Top Piece * Perform this step by slanting at an angle * INSTRUCTIONS G. Slant the ‘Top Piece’ on one side. Then insert the ‘Leg’ from a side angle to connect both segments together. - Page 8 CONNECTING THE TOP PIECE W LEG TOP PIECE W LEG PART INSTRUCTIONS H. Once both parts are successfully connected, lift your chair in an upwards and straight direction. You are now ready to sit with Alterseat!
- Page 9 THANK YOU...
