Summary of Contents for FeiYu Tech VIMBLE 3

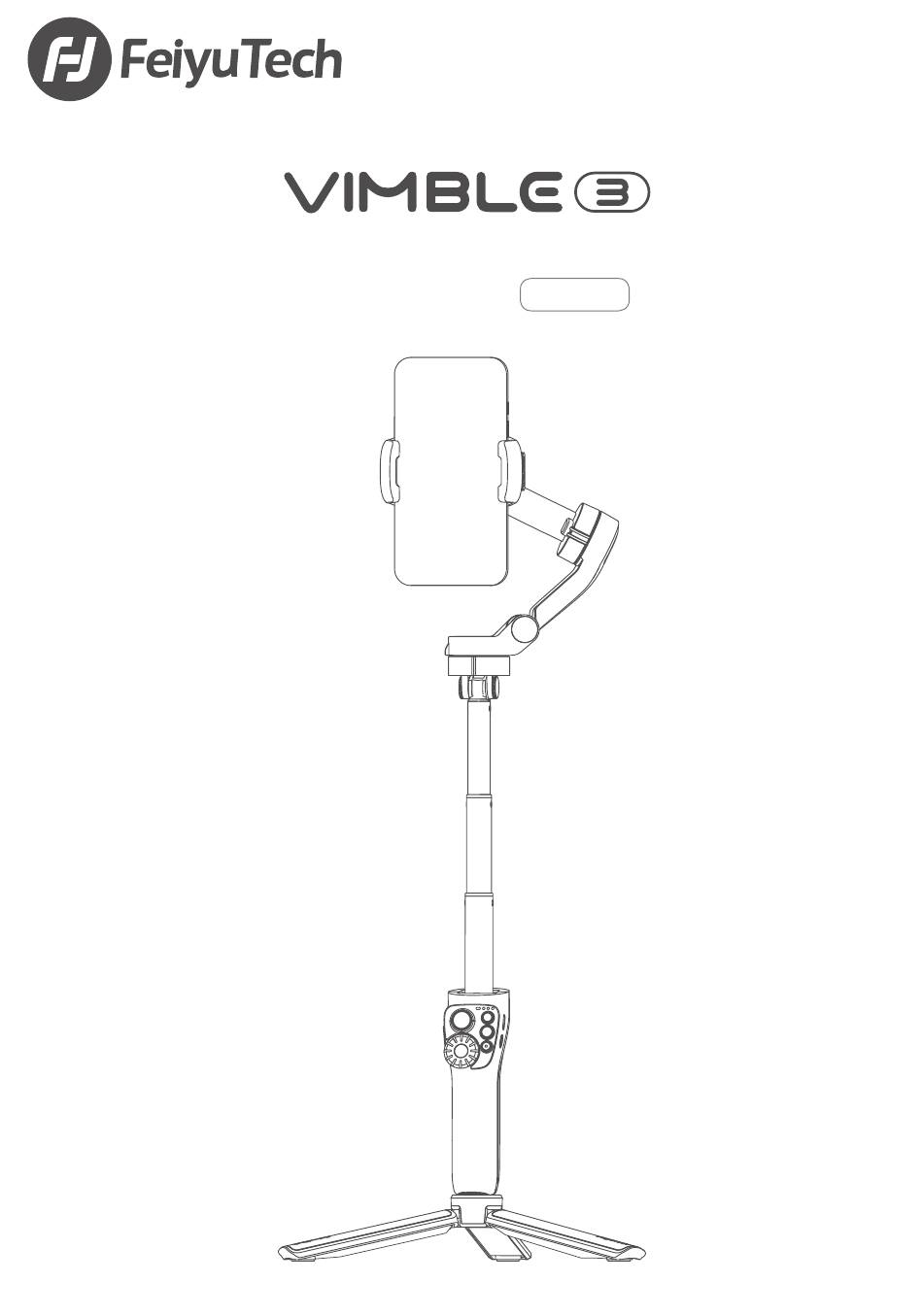

- Page 1 3-Axis Handheld Gimbal for Smartphone Quick start guide EN V 1.1...
-
Page 2: Table Of Contents
Contents 1. Overview ………………………………………………………… 2 2. Quick Experience ……………………………………………… 3 3. Charging ………………………………………………………… 4 4. Landscape & Portrait Mode Switching ……………………… 4 5. Extend and Reset the Handle ………………………………… 5 6. Tripod …………………………………………………………… 5 7. Connection ……………………………………………………… 6 8. Common Operation …………………………………………… 10 9. - Page 3 Vimble 3 is a three-axis handheld gimbal suitable for smartphone with extendable bar. It is small and foldable. The gimbal supports landscape and portrait shooting, which can also control phone shooting. Suggestion Feiyu Vimble 3 includes below information, please read the information before using the gimbal: 1.
-
Page 4: Overview
1. Overview [14] [19] [20] [21] [16] [22] [15] [17] [23] [18] [10] [24] [11] [13] [25] [12] [26] [27] [1] Roll axis [11] A button [20] Battery indicator [2] Cross arm [12] B button [21] Album button [3] Tilt axis [13] Zoom button [22] Mode button [4] Vertical arm... -
Page 5: Quick Experience
2. Quick Experience Step1：Unfold and fold Step2：Smartphone Installation Please power off the gimbal before install smartphone. It is recommended to remove the smartphone case before installation. Keep the logo of the smartphone holder upward. Keep the smartphone holder in center. If the smartphone tilted, please move the smartphone left or right to make it horizontal. -
Page 6: Charging
Step3: Power ON/OFF Long press the power button and release it when you hear the tone. USB-C port 3. Charging Please fully charge the battery before power on the gimbal for the first time. If the battery is too low, red light will flash fast, please charge the gimbal immediately. -
Page 7: Extend And Reset The Handle
5. Extend and Reset the Handle (1) Hold the handle with one hand, hold the bottom of pan axis with other hand. (2) Extending: Pull the extendable rod out to suitable length (Extendable range 0~198mm). Reset: Push upper grip to make the extendable bar down to handle part. Do not rotate the rod to extend or reset it. -
Page 8: Connection
7. Connection 7.1 Bluetooth Connection Turn on the gimbal. Method 1: Download and install Feiyu ON App, run the App, follow the prompts to turn on and connect with the Bluetooth. Method 2: Turn on the smartphone Bluetooth, connect the gimbal Bluetooth in the setting of phone, e.g. - Page 9 "connection succeed" after a while. (5) You can control the gimbal via App, including remote control the gimbal to move, switch follow modes and set parameters, etc. If the connection timeout or fail, please check the Bluetooth connection. Or try to exit and log in the App again.
- Page 10 · Before starting an update, make sure that the battery level at least medium level. ·Connect Vimble 3 with Feiyu ON App, you will be prompted if a new firmware is available. Please follow the steps below to update it.
- Page 11 · Do not exit Feiyu ON or run it in the background while updating the firmware. Pay attention to on-screen prompts. Noted: Gimbal has an update protection function. When the update fails, restart the gimbal, it will return to the previous firmware. Connect the app and update again to resolve the problem.
-
Page 12: Common Operation
8. Common Operation ① : Vimble 3 can achieve those functions after balanced gimbal. Basic ② : New available function which achieved after connected smartphone Bluetooth via Bluetooth with the functions in condition ① still available. ③ : New available function which achieved via Feiyu ON APP with the functions in condition ①... - Page 13 Diagram Button Condition Function Control the movement of the tilt and Basic pan axes · Select setting option · After enter album: move to left to choose previous Joystick photo/video; move to right to choose next photo/ video; move upward to play/pause; move downward to play/pause Switch the control object of dial: ·...
- Page 14 Diagram Button Condition Function When original camera APP is in photo/ video mode: Bluetooth ·Single tap: take photo, start/stop recording Shutter · Press halfway: focus button · Single tap: take photo, start/stop recording · Long press: switch between photo/video Slide up and down to adjust focus. Zoom ·Slide up (T direction): zoom in Bluetooth...
-
Page 15: Function Operation
Diagram Button Condition Function · Long press: enter lock mode (release it to exit) Basic Lower trigger · Double tap: recenter button Triple tap: Switch front/rear camera 9. Function Operation Mode Description The roll and tilt direction are fixed, and the smartphone Pan Mode moves according to the left-right movements of the user's hand. -
Page 16: Operation Mode
10. Operation mode The figures below depict the operation modes when using Vimble 3 in portrait mode. The same operation modes apply when used in landscape mode. Standard mode (Default): Double tap trigger button to recenter smartphone. Underslung mode: Hold gimbal upside down to enter underslung mode. (In which the smartphone can easily capture images from a lower position. - Page 17 Side grip mode: Rotate Vimble 3 to the right or left by 90° to make smartphone be horizonal to the ground. Low position mode: Extend the built-in extendable rod and adjust the angle as shown to enter low position mode. Use low position mode to shoot from a low angle.
-
Page 18: Indicator
11. Indicator Status indicator Battery indicator 11.1 Status indicator Status indicator Status Constant Blue light Bluetooth connected Blue light flash Bluetooth disconnected Blue light keeps flashing Unpairing Bluetooth Green light stays on Charging completed Green light flash Initializing Breathing light (green) Standby mode Red light stays on Charging... -
Page 19: Protection Mechanism
12. Protection mechanism State Status Battery is too low Gimbal power off after alarm sound Temperature is too high Gimbal enter standby mode after alarm Power on gimbal without load sound, and send message to App Overload Gimbal power off after alarm sound, and send Software conflict message to App Remove smartphone after... -
Page 20: Specifications
14. Specifications Product name: Feiyu Vimble 3 3-Axis Handheld Gimbal for Smartphone Product model: VB3 Max. Tilt Range: -35° ~ +35° Max. Roll Range: -50° ~ +50° Max. Pan Range: -80° ~ +174° Size: About 115×176×65mm (folded) Net gimbal Weight: About 387g (not including tripod) Battery: 1300mAh Charging time: About 2.5h... - Page 21 Notice: 1.Make sure motor spinning is not blocked by external force when the product is power on. 2.The product DO NOT contact water or other liquid if the product is not mark waterproof or splash-proof. Waterproof and splash-proof product DO NOT contact sea water or other corrosive liquid.
- Page 22 Guilin Feiyu Technology Incorporated Company www.feiyu-tech.cn | support@feiyu-tech.com | +86 773-2320865 This document is subject to change without notice.
