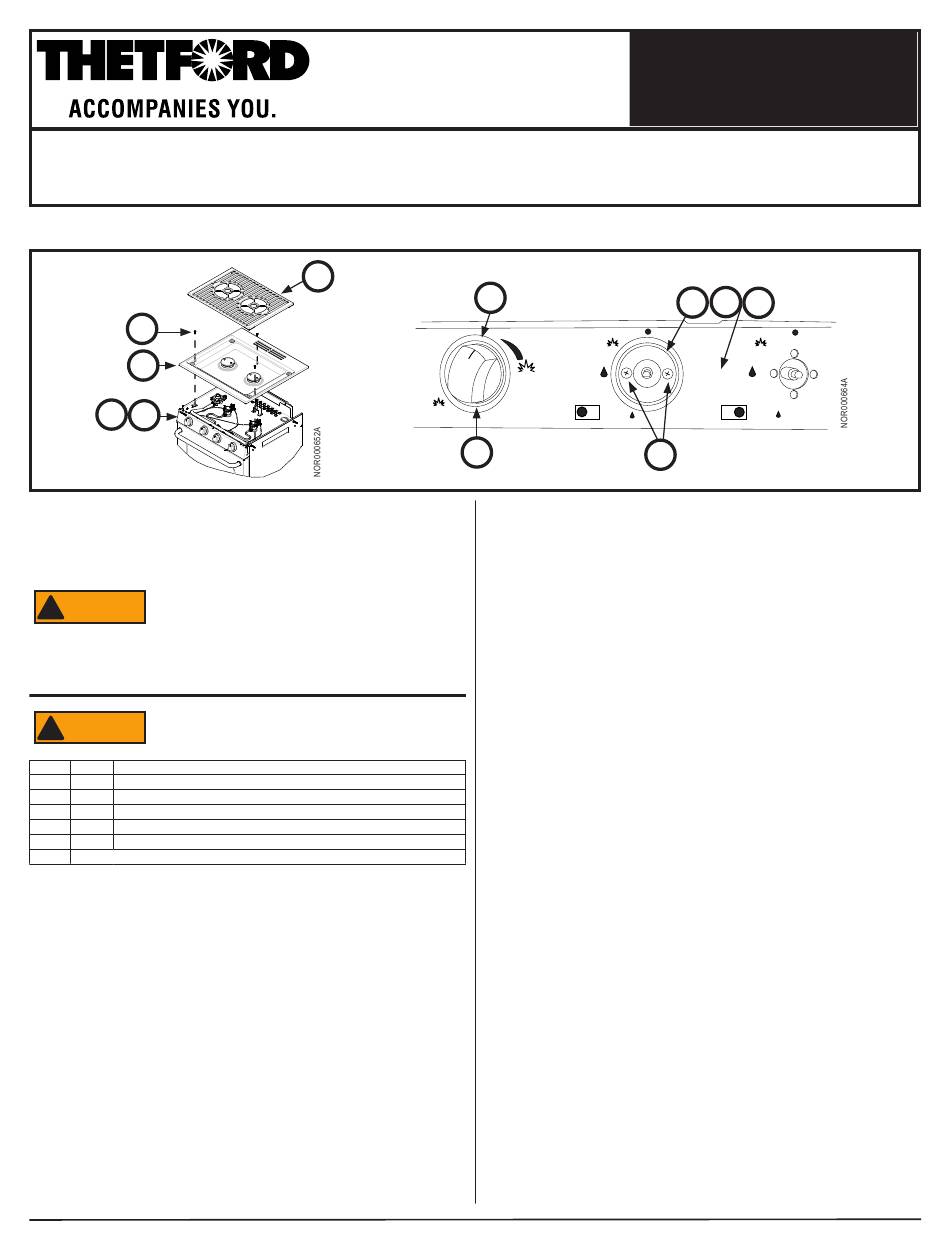

Thetford XR17200 Quick Start Manual

Kit Contents: K1
C1
C
A
K1
Tools Needed:
■ #2 Phillips Screwdriver
■ Installation / Owner's Manual
This procedure is to be performed by authorized service
WARNING
!
personnel only. Improper installation, adjustment, altera-
ATTENTION
tion, service or maintenance can cause injury or property
damage.
Replace Part
Be sure the appliance has been isolated from the pro-
WARNING
!
pane gas supply before starting!
ATTENTION
New Ref. Description
K1 A/A1 Control Cover / Screws
NI B Burner Grate
NI C/C1 Top Cover / Screws
NI D Control Knob
NI E/E1 Control Knob Base / Screws
NI Not Included: Reference Only
B
1. Remove ; set aside.
C1
2. Remove (3x); set aside.
C
3. Remove ; set aside.
A1 A
4. Remove (5x) from ; set aside.
D
5. Pull off (3x-cooktop) (4x-oven); set aside.
E1 E
6. Remove (2x) from each
E
7. Remove (3x-cooktop) (4x-oven) from
Using new part, reverse steps 7 through 1 to replace and reinstall.
Printed in U.S.A./Imprimé aux É.-U./Impreso en EE. UU.
Thetford Corporation
7101 Jackson Road
Ann Arbor, MI 48103
www.norcold.com
XR17200 and XC200
B
; set aside.
A
; set aside.
Control Cover
E
SPARK
BURNERS
D
Service Kit
Ensemble de réparation
Juego de servicio
E A
K1
E1
Part No. /N° de pièce/Pieza n.º 639478A (05.08.2017)
639479
639480
