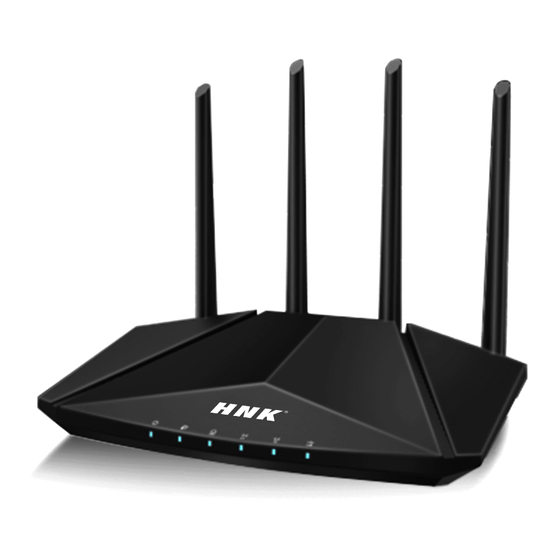

HNK RAX1501 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1.
215*145mm
2.
105g
3.
4.
5.
ROHS2.0
User manual
Wireless Router — HNK RAX1501
1mm.
24p
HF
WEEE
.
17.P6.XXXXXXXXX
CODE128
35*5mm
Arial 6pt

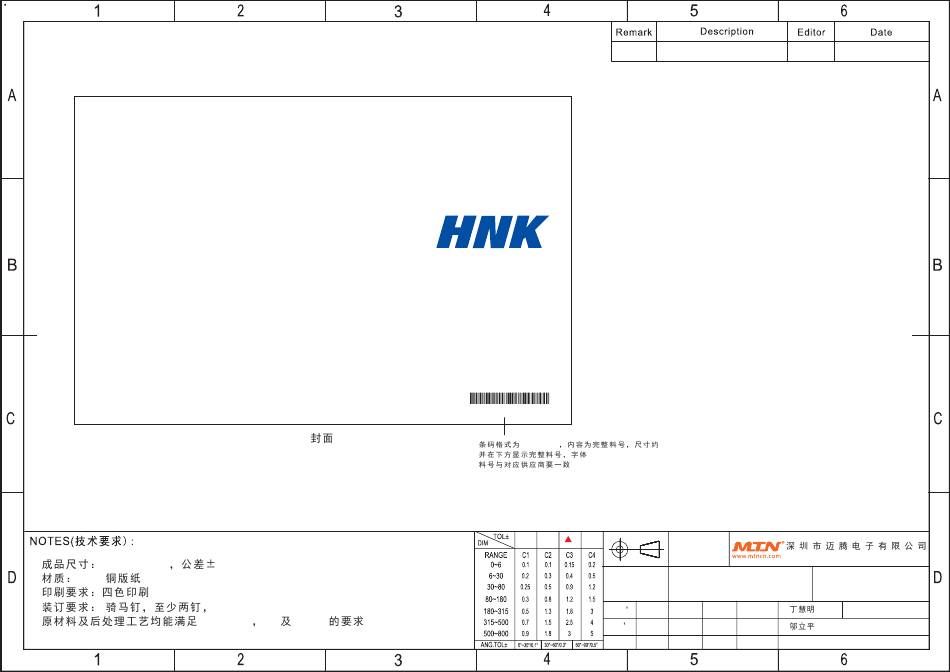

TITLE:
MANUAL
UNIT S
mm
MAT L
/
FINISH
/
CUSTOMER:
HNK
SHENZHEN MTN ELECTRONICS CO.,LTD
MODEL:
PART NO.:
MTO-WR1500AX
DATE:2022-04-07
VER:
A0
DRAW
CHECK
SCALE
1:1
SHEET
1/1
APPD
N/A
R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAX1501 and is the answer not in the manual?

Questions and answers

Related Manuals for HNK RAX1501

Summary of Contents for HNK RAX1501

  • Page 1 User manual Wireless Router — HNK RAX1501 17.P6.XXXXXXXXX CODE128 35*5mm Arial 6pt CUSTOMER: SHENZHEN MTN ELECTRONICS CO.,LTD 215*145mm 1mm. TITLE: MODEL: PART NO.: 105g MANUAL MTO-WR1500AX DATE:2022-04-07 UNIT S VER: DRAW ROHS2.0 WEEE MAT L CHECK SCALE FINISH SHEET APPD...
  • Page 2 User manual Wireless Router — HNK RAX1501 17.P6.XXXXXXXXX...

  • Page 4: Connect The Router

    3. Turn on the modem, and then wait about 2 minutes for it to restart. 4. Connect the power adapter to the router. 5. Verify the power LED on the top panel is solid on (green) . 6. Connect your computer or smartphone to the wifi named HNK-RAX1500 or HNK-RAX1500-5Ghz. Internet...

  • Page 5: Wizard Page

    4.Wizard Page 4.2.2 PPPoE Settings 4.1 Wizard Page Browser Type 192.168.0.1 , automatically jump to the configuration wizard page NO password in default Figure 4-1 Figure 4-3 4.2 WAN Connection Settings There are several connection types to choose: Static IP, DHCP and PPPoE. If you are unsure of your connection method, please contact your Internet Service Provider.
  • Page 6 4.2.3 Static IP Settings 4.3 Wireless SSID and Password Settings After configuring the static IP access method, please click Next to complete the wireless SSID configuration and wireless password settings. Figure 4-5 Figure 4-7 4.4 Admin Password Settings After configuring the wifi, click Next to set the user (Admin) password, and then click...
  • Page 7 6.Home Page Home page information is displayed. Figure 4-9 5.Web Management Landing Page 5.1 Management Page Login After completing the configuration wizard, please enter 192.168.0.1 in the browser to Figure 6-0 log in to the router management page. Admin Password The Device admin Password you set on Wizard Page. 6.1 Internet Information Display Page Internet connection status and connection information.
  • Page 8 6.3 Connected Clients Information Display Page 6.2 WiFi Information Display Page Connected Clients information display page: It shows Connected Clients information. 6.2.1 Router Mode Home>>RAX1500 Display Extender IPv4 mac address and wireless SSID. Figure 6-4 Figure 6-2 6.2.2 Repeater Mode Display the Extender IPv4 mac address and the uplink router s wireless SSID.

  • Page 9: Function Configuration

    7.Function Configuration Complete 2.4G advanced configuration, such as channel, security mode, 802.11 mode. 7.1 WIFI Setting Use this section to configure the wireless settings for your Router. Please note that settings made in this section may also need to be synchronized on your Wireless Client. Figure 7-3 Complete 5G advanced configuration, such as channel, security mode, 802.11 mode.
  • Page 10 7.1.2 Smart Connect 7.1.3 Guest Zone After the smart connection is closed, the extender 2.4G WIFI and the 5G WIFI can This feature lets you enable and configure a Wi-Fi Guest Zone. It allows you to create be searched on the terminal wireless device respectively, and there are two wireless bands a separate network for your guests to secure the main network.
  • Page 11 Figure 7-11 Advanced settings. Figure 7-9 7.2.2 IPV6 Settings All of your IPv6 Internet and network connection details are displayed on this page. Figure 7-12 Browser Type http://rax1501/ Login to the router administration page. Figure 7-10 Figure 7-13...
  • Page 12 7.3 Network Function Configuration 7.3.3 Network Advanced Settings Use this section to configure the network settings for your devices. You can enter a Set LAN advanced settings, UPnP function. name for your device in the management link field and use the link to access web UI in a web browser.

  • Page 13: Features Setting

    Select the router 2.4G or 5G WIFI SSID and enter the signal extension password. Figure 7-20 Figure 7-22 Click the scan function after entering the page to scan the uplink router wireless. 8.Features Setting 8.1 QOS Connected clients can be assigned Internet access priority. Click and drag the client cards into slots.
  • Page 14 8.2.1 Website Filter The website filter feature allows you to set rules that you can restrict access to a specified web address (URL) or block specified keywords in the URL. You can use Website Filter to restrict access to potentially harmful and inappropriate websites. Figure 8-2 Figure 8-5 8.2.2 IPv4 Rules...
  • Page 15 Create a new rule. 8.2.4 Remote Management Open Firewall Status>>Save>>IPv4 Rules>> Add Rule HTTP Remote Management Figure 8-10 Figure 8-7 8.2.5 WAN Ping 8.2.3 IPv6 Rules The IPv6 will also be supported by your router's built-in firewall. Some applications or clients may require special adjustments for better performance or extra protection. Figure 8-8 Figure 8-11 Create a new rule.
  • Page 16 8.3.1 Port Forwarding Your router helps to share a single IP address assigned by your ISP among several clients in your home. Port forwarding allows traffic requests from a specified application to be directed to a specified client inside. Figure 8-16 8.3.3 Virtual Server Your router helps to share a single IP address assigned by your Internet service provider among several clients in your home.

  • Page 17: Management Page

    9. Management Page 9.1 Time and Schedule 9.1.1 Time Your router's internal clock is used for data logging and schedules for features. The date and time can be synchronized with a public time server on the Internet, or set manually. Figure 8-19 8.4 DDNS Dynamic Domain Name Service(DDNS) allows your router to associate an easy-to-re-...
  • Page 18 Figure 9-5 Figure 9-3 9.3 Admin Page Settings To set the administrator password, you need to enter the original password for verifica- 9.1.3 Led Time tion; then enter a new administrator password and verify it again. Your router's internal clock is used for data logging and schedules for features. The date and time can be synchronized with a public time server on the Internet, or set manually.
  • Page 19 After modifying the administrator password, the browser will jump to the login page. 9.4.2 Load Settings from Local Hard Drive Enter the administrator password to login Import the configuration file to the Router to quickly configure the router or restore configuration information.
  • Page 20 9.5 Upgrade Page Settings 9.5.2 Online Firmware Upgrade Settings This page will display your current firmware version. Click on the Check for New Firmware button for detecting the latest firmware version. If have, you can upgrade your firmware to the latest version. Otherwise the page will prompt that the firmware is the latest version.
  • Page 21 10.Hardware 3. If the following error message is displayed (if no error message is displayed, go to Step 4), open task Manager, click Programs and Functions, and then click Enable/dis- 10.1 LED Indicator able firewall function, select SMB1.0/CIFS File Sharing support, and click OK. After the The power light is steady green: The device is on.
  • Page 22 Figure 10-7 Figure 10-5 4. Enter \\192.168.0.1, click OK, and double-click the folder in the picture below. The input box for account and password will pop up. Figure 10-8 Frequently Asked Questions: Unable to open the router's administrative interface: Make sure the computer is "Obtain an IP address automatically". Make sure the computer is connected when the router is wireless.
  • Page 23 FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless Method 1: Log in to the App Store or Google Store, search for "HNK Router", the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification download and install the APP.
  • Page 24 24hour Online After-Sales Service Scan QR Code To Visit https://hnk.afterservice.vip HUIZHOU MTN WEIYE TECHNOLOGY DEVELOPMENT CO.,LTD. Address: NO.2 Huitai Road,Huinan High-tech Industrial Park,Huiao Avenue,Huizhou City,Guangdong Province,China Tech Support :Support@hnknet.com Copyright©2021SHENZHEN ZK TECHNOLOGY CO., LTD. ALL right reserved. The content of this document maybe updated from time to time...
