KS22 - Trio Safestart for G621

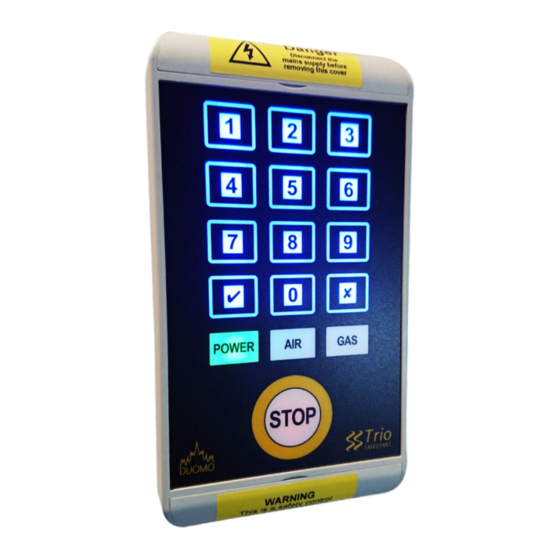

KS22 Trio Safestart for G621
Gas
Proving
System
Touchpad
Control
Access
Code
G621
Compatible
FEATURES
■
Touchpad control panel suitable for use with G621
■
Gas Safestart Gas proving system.
■
Unique, programmable access code
■
Starts ventilation, checks fan operation, starts Gas
■
Visually displays failure type (Air or Gas)
■
Automatically isolates gas supply at low pressure
■
Checks downstream pipework before initiating gas
supply.
■
IGE/UP/2 Edition 2 and BS6173:2009 compliant
■
2 year guarantee - 3 year by registering at duomo.co.uk
Dimensions
t: 01905 797989
e: sales@duomo.co.uk | w: www.duomo.co.uk
SPECIFICATION
Power
Power Supply
230VAC 50Hz/60Hz ± 15%
Power Consumption
7VA Maximum
Max out Current (All relays)
3A resistive
Max out Switching Voltage 250VAC / 100VAC
Max out breaking capacity
2500VA
Out contact operations
> 100 x 103
External limit contact > 3A @250VAC
Line Fuse 5 x 20
SNOWBLOW 3A
Technical Specification
Dimensions Width 200mm | Height 110mm | Depth 60mm
Display
N/A (Illuminated Touchpad)
Mounting
Wall mounted
Relative Humidity Also condensing 90% max
Working Temperature
0 to 60°C
Storage Temperature
20 to 80°C
Protective Rating IP66
Configuration
G621 Safestart Assembly max 50mbar
Operating Pressure
Approvals, Certifications and Guarantee
Guarantee
2 year as standard
3 year by registering at www.duomo.co.uk
