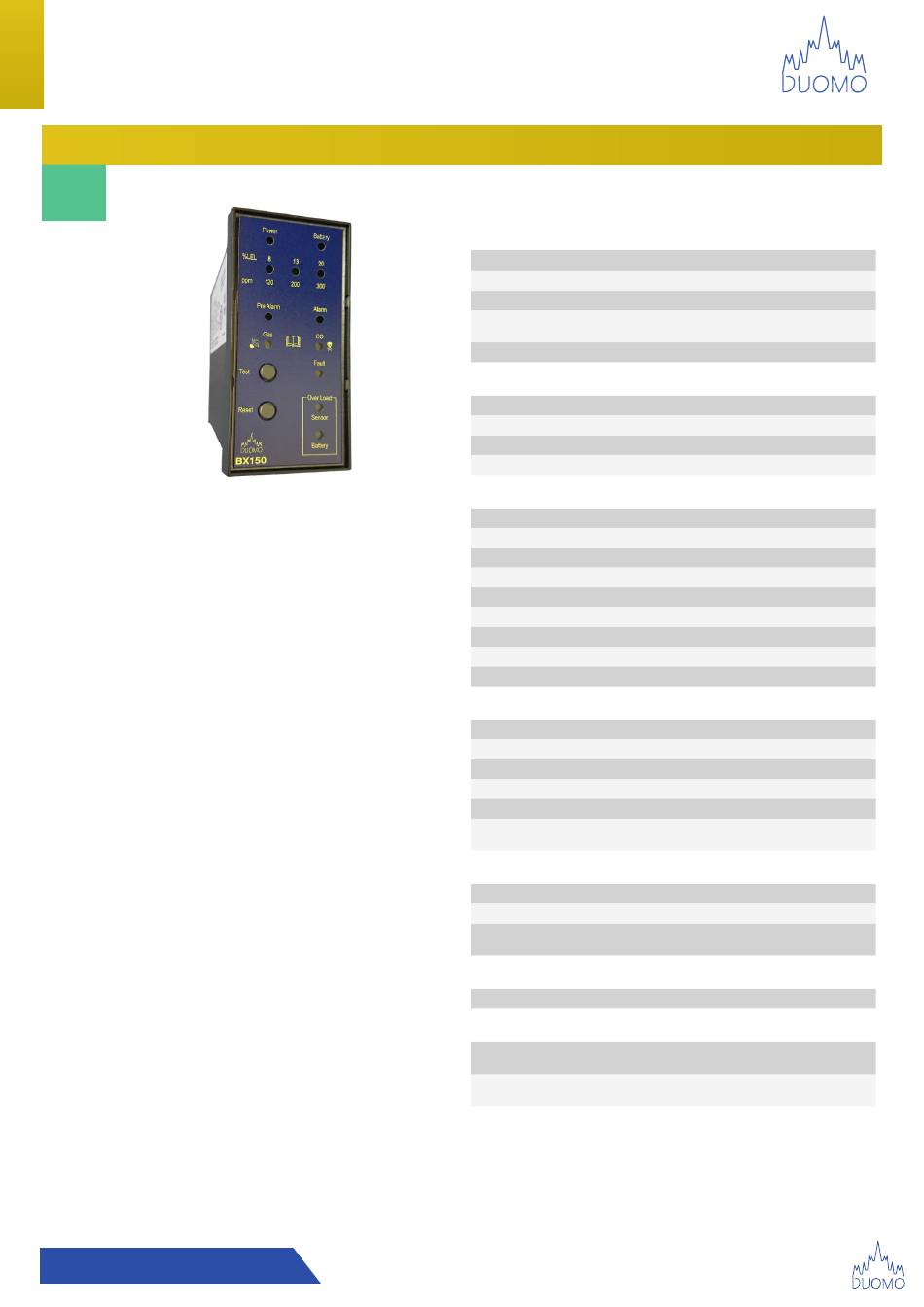

BX150 Gas Detection Controller
BX150 1 Channel Panel Mounted Gas Detection Controller
1
Channel
Panel Mounted
Only
Manual test
Self-diagnostic
4-20mA
IP42
FEATURES
■
Single channel protection
■
230VAC or 12VDC supply
■
Panel mounted only
■
Positive safety option
■
Internal audible alarm
■
Manual test function
■
Self-diagnostic
■
Detection of Toxic 0-300ppm / Explosive Gas(es)
0-20%LEL
■
4-20mA signal input
■
2 alarm stages - Pre-alarm and main alarm
■
Sensor fault relay output
■
IP42 protective rating
■
CE certified and approved to EN 61010-1, EN 50270,
EN 50271, EN 45544-3, EN 60079-29-1
■
2 year guarantee - 3 year by registering at duomo.co.uk
OVERVIEW

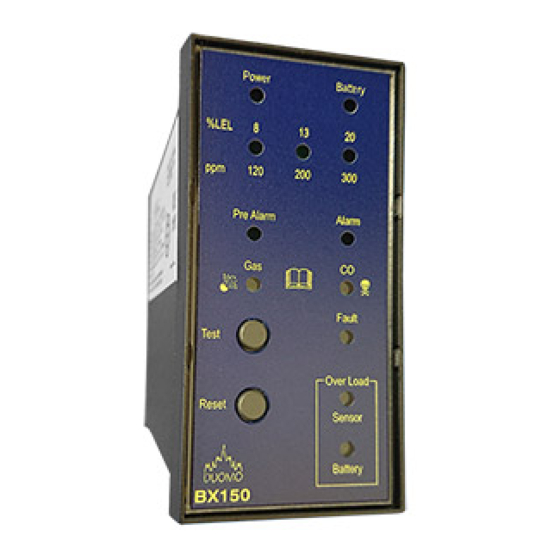

The BX150 is a single channel, panel mounted gas detection
controller. It can be connected to toxic and explosive sensors.
If the remote sensor senses the presence of gas, it sends a
proportional 4-20mA signal back to the BX150. When the first
alarm level is reached the pre-alarm relay is activated (See Alarm
Settings). If the level continues to rise the main alarm relay will be
energised.
For explosive or toxic gases, the electrical supply to the safety shut
off valve is broken when the main alarm threshold is reached. A
general alarm is sounded.
Should the controller enter fault condition the safety shut off valve
closes to failsafe. A self-diagnostic feature looks for return sensor
voltage and ensures correct functionality.
The BX150 controller is compatible with all the Duomo conventional
sensors shown on pages 6 & 7.
t: 01905 797989
e: sales@duomo.co.uk | w: www.duomo.co.uk
SPECIFICATION
Power
Power Supply
230VAC 50Hz ± 10%
Secondary Battery 12VDC ± 10% max 2.2Ah
Battery Charger
Charger capacity 2.2Ah
Power Consumption
12V - 2.5W maximum
230V - 9W maximum
Relay Contact Range
10A resistive
Alarm Settings
Pre-Alarm No.1
13% LEL / 200ppm
Pre-Alarm No.2
N/A
Main Alarm Fixed at 20% LEL / 300ppm
Sensor Fault
Short circuit, interruption, sensor deterioration
Technical Specification
Dimensions Width 48mm | Height 96mm | Depth 119mm
Display
N/A
Mounting
Panel mounted
Input Signal 4-20mA
Device Precision
1% FS
Reaction Time
<2 seconds
Working Temperature -10°C to 40°C
Start-up Self-Diagnostic Delay
120 seconds
Protective Rating
IP42
Configuration
Positive Safety
Yes (ON/OFF)
Main Alarm Relay Actuation
Yes (Latching/Temporary Alarm)
Gas Type Selection Yes (Toxic/Explosive)
Timed Sensor Test Facility
No
Emergency Stop Connections
No
O Compatibility as Standard No
2
Perhipheral Specification
No. of Remote Sensors
1
Maximum Sensor Distance
100m
Cable Diameter for Sensors 1mm
(Screened and earthed at the controller end)
Compatibility
Sensor Compatibility
All Duomo sensors
Approvals, Certifications and Guarantee
Approvals EN 61010-1, EN 50270, EN 50271, EN 45544-3,
EN 60079-29-1
Guarantee
2 year as standard
3 year by registering at www.duomo.co.uk
