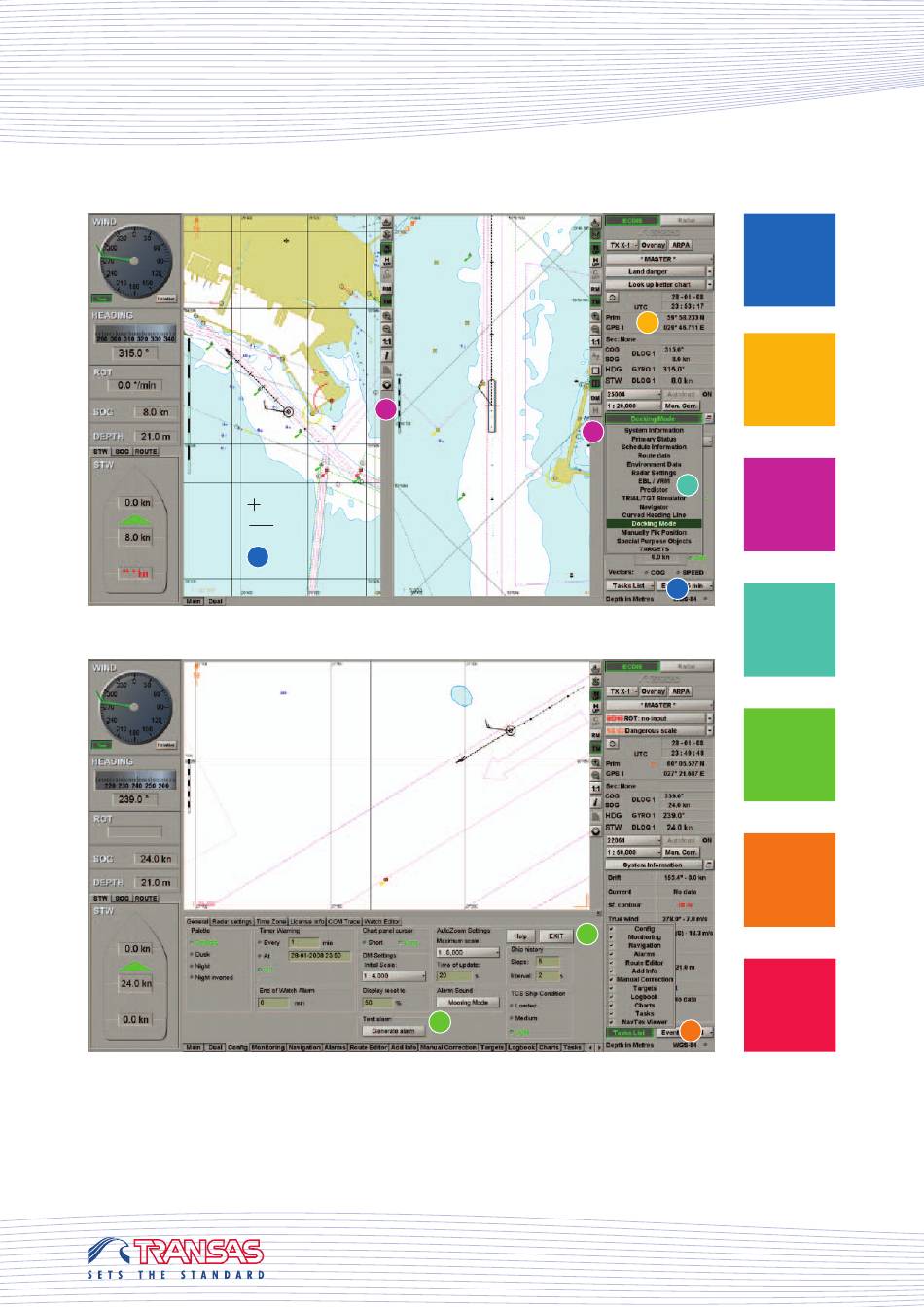

- Page 1 NAVI-SAILOR 4000 ECDIS MFD QUICK REFERENCE GUIDE Chart Panel Control Panel Chart View Panel Bar Display Mode Panel Functionality Panel Operation Panel Keyboard Transas 24/7 Service: +46 771 460 100, service@transas.com...
- Page 2 NAVI-SAILOR 4000 ECDIS MFD QUICK REFERENCE GUIDE Transas Integrator Toolbar To show or hide Transas Integrator toolbar press on the keyboard Icon Click Function Turning OFF the workstation Restart the workstation Left-click Turning ON ECDIS task The task allows reproducing information archived by the ECDIS...
- Page 3 NAVI-SAILOR 4000 ECDIS MFD QUICK REFERENCE GUIDE Chart Panel In the chart area of “Main” panel, the cursor may have a form of different tools switched by pressing the right trackball/mouse button: Cursor Click Function To turn ON Review function...
- Page 4 NAVI-SAILOR 4000 ECDIS MFD QUICK REFERENCE GUIDE Control Panel Button Click Function Return to own ship’s position on the chart panel Position Dropped Choose radar overlay source (optional) TX X-1 Left-click Radar overlay ON/OFF (optional) Overlay Choose the type of sensor for targets presentation (optional)
- Page 5 NAVI-SAILOR 4000 ECDIS MFD QUICK REFERENCE GUIDE Chart Panel Bar Icon Click Function Return to the own ship’s position on the chart panel Set Own Ship symbol at any location on the chart panel Left-click Switch to North Up orientation...
- Page 6 NAVI-SAILOR 4000 ECDIS MFD QUICK REFERENCE GUIDE Display Mode Panel Click on button to open Drop Down menu. System Information Button Click Function Display Drift, Current, Safety Contour, Wind, Water temperature, System Information Depth and Tide information Display positioning information from Electronic Position Fixing Primary Status System (e.g.
- Page 7 NAVI-SAILOR 4000 ECDIS MFD QUICK REFERENCE GUIDE Functionality Panel Click on button to open Drop Down menu. Task List Tab, Button Click Function Customize general system settings Config Launch Electronic Help Help Left-click Exit ECDIS Task Exit Set parameters for Route monitoring, Safety alarms and Navigational...
- Page 8 NAVI-SAILOR 4000 ECDIS MFD QUICK REFERENCE GUIDE Keyboard Transas 24/7 Service: +46 771 460 100, service@transas.com...
