1. Place the squared section edges and the adjustable
corners without tightening the screws.
3

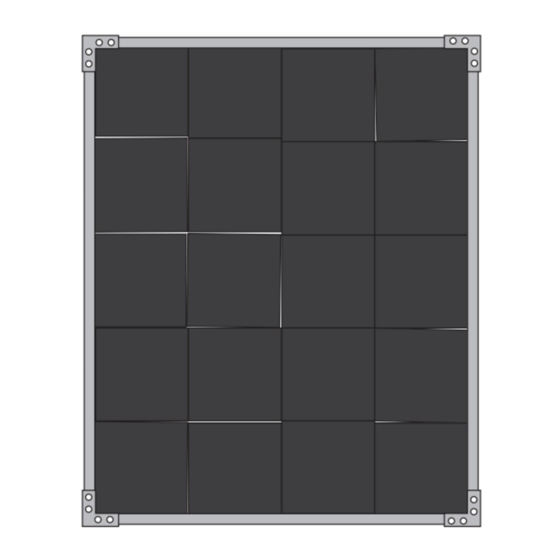

3. Use a rubber mallet to align the tiles and close
the gaps.
5
5. Use a rubber mallet to align the tiles and close
the gaps
METEM S.r.l. - via Le Canevare, 50 - 31100 Treviso -ITALY- Tel.: +39 0422 267010 - Mail: info@metemsrl.com - www.metemsrl.com
MAGNITUDO
Installation Phases
pag.1/3
2
2. Lay the rubber surface.
4
4. Fix the first corner using the provided screws
and flat washers.
6
6. Fix the second corner using the provided screws
and flat washers
