Model 640A10

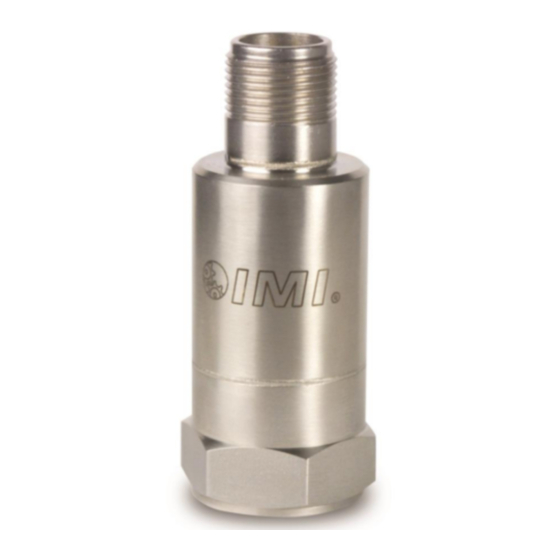

Industrial vibration sensor, 4 to 20 mA output, 0 to 0.5 in/sec pk, 3 to 1k Hz,
Installation and Operating Manual
For assistance with the operation of this product,
contact PCB Piezotronics, Inc.
Toll-free: 800-959-4464
24-hour SensorLine: 716-684-0001
Fax: 716-684-3823
E-mail: imi@pcb.com
Web: www.imi-sensors.com
Advertisement
Table of Contents
Related Manuals for PCB Piezotronics IMI SENSORS 640A10
Summary of Contents for PCB Piezotronics IMI SENSORS 640A10
- Page 1 Industrial vibration sensor, 4 to 20 mA output, 0 to 0.5 in/sec pk, 3 to 1k Hz, Installation and Operating Manual For assistance with the operation of this product, contact PCB Piezotronics, Inc. Toll-free: 800-959-4464 24-hour SensorLine: 716-684-0001 Fax: 716-684-3823 E-mail: imi@pcb.com...
- Page 2 Returning Equipment – Following the equipment to PCB Piezotronics for these procedures will insure that your repair. User servicing or repair is not returned materials are handled in the recommended and, if attempted, may most expedient manner.
- Page 3 PCB Piezotronics, Inc. Warranty – All equipment and repair 3425 Walden Ave. services provided by PCB Piezotronics, Depew, NY 14043 USA Inc. are covered by a limited warranty Toll-free: (800) 828-8840 against defective...
- Page 4 INDUSTRIAL MONITORING INSTRUMENTATION DIVISION The 640/641/645/646 Series Industrial 4-20 mA Sensor Operating Guide with Enclosed Warranty Information 3425 Walden Avenue, Depew, New York 14043-2495 Phone (716) 684-0003 Fax (716) 684-3823 Toll Free Line 1-800-959-4IMI MANUAL NUMBER: 18663 MANUAL REVISION: NR...
-
Page 5: Table Of Contents
INDUSTRIAL MONITORING INSTRUMENTATION DIVISION table of contents Introduction............................... page 3 Operation................................page 3 Figure 1 – Wiring: Loop Powered ......................page 3 Figure 2 – Wiring: Loop Powered/DC Source ..................page 3 Taking Measurements............................page 4 RV Option ..............................pages 4-5 Figure 3 –... -
Page 6: Introduction
INDUSTRIAL MONITORING INSTRUMENTATION DIVISION Introduction The Model 640/641/645/646 Series Industrial 4-20 mA Sensors combine the capabilities of a piezoelectric vibration sensor and a 4-20 mA vibration transmitter into a ruggedized housing. The sensors output a 4-20 mA signal that is proportional to the overall velocity or acceleration of the machinery. Ideal for monitoring the vibration of process equipment such as fans, motors and pumps, the output of the sensor is used for process control or predictive maintenance. -
Page 7: Taking Measurements
INDUSTRIAL MONITORING INSTRUMENTATION DIVISION Taking Measurements When reading the current output from the unit, use the following formula to calculate the vibration level: Measured mA 640AX0 640AX1 640AX2 4.00 0.0 ips, pk 0.0 ips, pk 0.0 ips, pk 8.00 0.125 ips, pk 0.25 ips, pk 0.5 ips, pk 12.0... -
Page 8: Intrinsically Safe Option
INDUSTRIAL MONITORING INSTRUMENTATION DIVISION RV Option continued . . . For integral cable sensors: 4-20 mA Positive BLACK 4-20 mA Negative (same as green) GREEN Acceleration Negative (same as black) WHITE Acceleration Positive Note: The acceleration signal Negative has to be isolated from any grounding. If this is grounded, the 4-20 mA loop will short, causing no output. -
Page 9: Installation
INDUSTRIAL MONITORING INSTRUMENTATION DIVISION Installation When choosing a mounting method, consider closely the advantages and disadvantages of each technique. Typical mounting types are stud, direct adhesive, adhesive mounting base and magnetic mounting base. Since the frequency response is limited to 1 kHz on the 640/641, any of the four methods can be used without seriously affecting the data values. - Page 10 INDUSTRIAL MONITORING INSTRUMENTATION DIVISION Standard Stud Mount Procedure continued . . . STEP 1 First, prepare a smooth, flat mounting surface, and then drill and tap a mounting hole in the center of this area as shown in Figure 3. A precision-machined mounting surface with a minimum finish of 63 µin [0,00016 mm] is recommended.
-
Page 11: Adhesive Stud Mount Procedure
INDUSTRIAL MONITORING INSTRUMENTATION DIVISION Adhesive Stud Mount Procedure Adhesive mounting is often used for temporary installation or when the machine surface cannot be adequately prepared for stud mounting. Adhesives like hot glue or wax work well for temporary mounts; two-part epoxies and quick-bonding gels provide a more permanent mount. -
Page 12: Direct Adhesive Mount Procedure
INDUSTRIAL MONITORING INSTRUMENTATION DIVISION Direct Adhesive Mount Procedure For restrictions of space or for convenience, most sensors (with the exception of integral stud models) can be adhesive-mounted directly to the machine surface. STEP 1 Prepare a smooth, flat mounting surface. A minimum surface finish of 63 µin [0,00016 mm] generally works best. - Page 13 INDUSTRIAL MONITORING INSTRUMENTATION DIVISION Magnetic Mount Procedure continued . . . figure 8 – magnet types Sensor Stud M ounts to Top Surface of M a gnet Dual-R ail M agnet Flat M agnet M ounting Pad w ith M agnet ALL SUR FA CES S HOULD BE FLAT AN D SM O O TH STEP 1 After choosing the correct magnet type, inspect the unit, verifying that the mounting surfaces are flat and smooth.
-
Page 14: Esd Warning Information
2 – ESD sensitivity This equipment is designed with user safety in mind; however, the protection provided by the equipment may be impaired if the equipment is used in a manner not specified by PCB Piezotronics, Inc. caution 1 – ESD sensitivity Cables can kill your equipment. -
Page 15: Warranty, Service & Return Procedure
INDUSTRIAL MONITORING INSTRUMENTATION DIVISION warranty IMI instrumentation is warranted against defective material and workmanship for 1 year unless otherwise expressly specified. Damage to instruments caused by incorrect power or misapplication, is not covered by warranty. If there are any questions regarding power, intended application, or general usage, please consult with your local sales contact or distributor. -
Page 16: Customer Service
IMI, a division of PCB Piezotronics, guarantees Total Customer Satisfaction. If, at any time, for any reason, you are not completely satisfied with any IMI product, IMI will repair, replace, or exchange it at no charge. You may also choose, within the warranty period, to have your purchase price refunded.
