Infinity Micro II Owner's Manual page 3

I
MPORTANT
3 Micro II Satellite/Subwoofer System – Owner's Manual
M
OUNTING
To mount the Micro II either vertically or hori-
zontally on a wall or corner, proceed as follows:
1. Remove the top and bottom plates of the
satellites by turning them counterclockwise.
2. Slide the satellites away from their mounting
brackets.
3. Connect the speaker wire to the black and
red terminals located on the rear of the
satellites (read the section on CONNECTING
THE SYSTEM (page 5) before making these
connections if you are not familiar with how
to hook up polarities). Before connecting the
speaker-hookup wire, first slide it through
the hole on the rear, top or bottom of the
mounting bracket. If you fail to slide the wire
through the holes located on the mounting
bracket, connection to the speaker will be
very difficult later. See Diagram A below.
4. Mount the bracket on the wall or corner of
your listening room. BE SURE THAT THE
SCREWS HOLDING THE MOUNTING
BRACKET TO THE WALL ARE SCREWED
INTO A WALL STUD. IF THIS IS NOT
POSSIBLE, USE A HEAVY DUTY MOLY
FOR EACH SCREW. MAKE SURE THE
MOLY CANNOT TEAR OUT OF THE WALL
5. Replace the satellites into the mounting
brackets and refasten the top and bottom end
plates.
6. Carefully adjust the Infinity logo. See Diagram B (page 4).
!

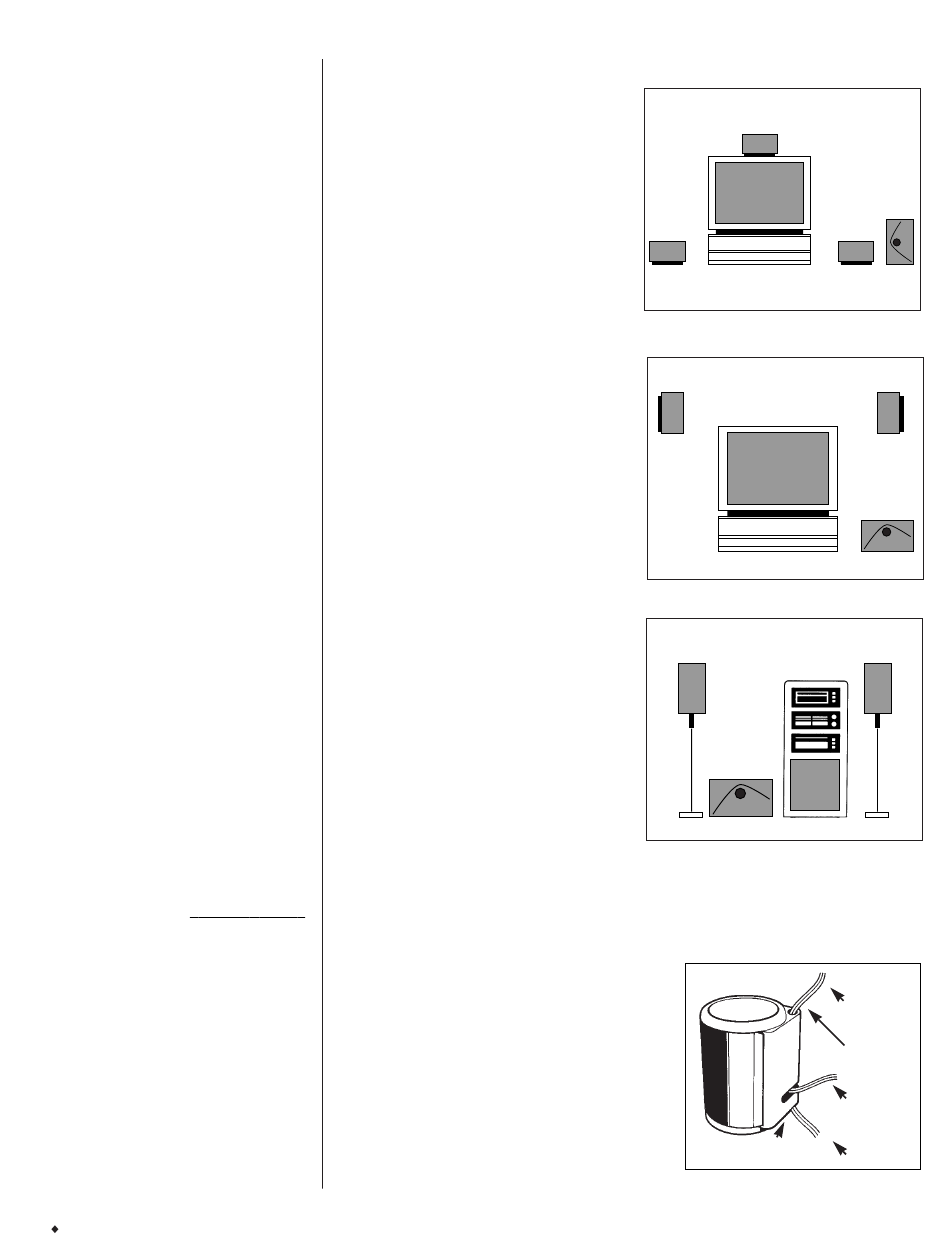

When wall or corner mounting the satellites, be sure the left and right speakers are placed at
exactly the same height.
CENTER-CHANNEL SATELLITE
TV
MONITOR
SATELLITES
ON THE
FLOOR WITH
BRACKET
ATTACHED
SATELLITES
MOUNTED
VERTICALLY
ON THE
WALL
SATELLITES
AUDIO-
ON STANDS
COMPONENT
RACK
SUBWOOFER
DIAGRAM A
BOTTOM HOLE
SUBWOOFER
TV
MONITOR
SUBWOOFER
SPEAKER
WIRE
(Option #1)
TOP HOLE
SPEAKER
WIRE
(Option #2)
SPEAKER
WIRE
(Option #3)
