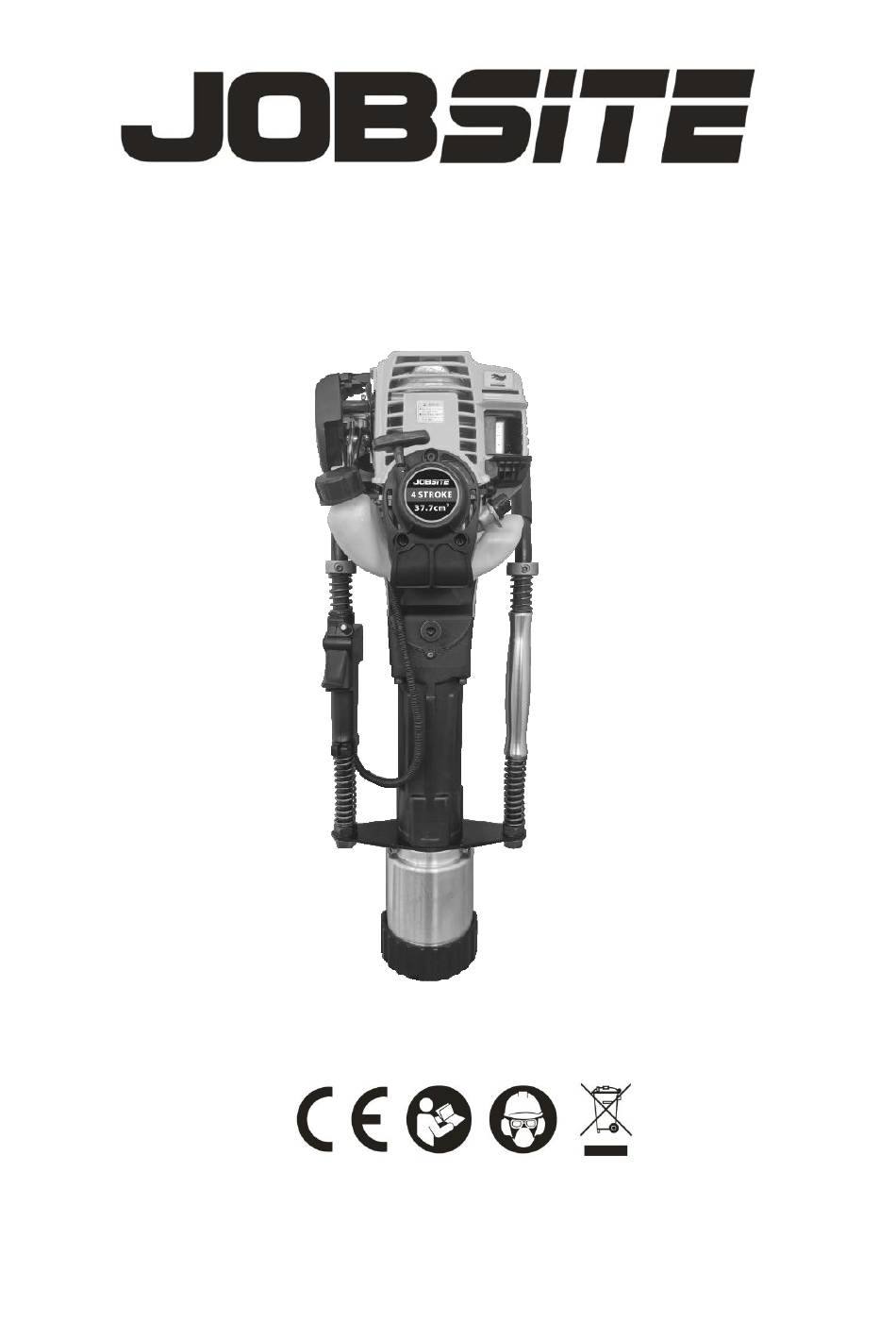

- Page 1 4 STROKE 37.7 cm3 GASOLINE PILE DRIVER CT4343 ORIGINAL INSTRUCTIONS Read the operating instructions thoroughly before work and keep it for future reference. Cannon Tools Limited Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
-
Page 3: Product Description
In case of alteration of the machine, not agreed upon by us, this declaration will lose its validity. Product description: 4 STROKE 37.7 cm3 GASOLINE PILE DRIVER Model: CT4343 Applicable EC Directives: EC-Machinery Directive 2006/42/EC EC- Directive of Electromagnetic Compatibility： 2014/30/EU... -
Page 4: Name Of Main Parts
1. NAME OF MAIN PARTS Name of Part Name of Part Name of Part Handle Positioning Bush Stop Swtich Combination Switch Piling Bush Retainer Piling Bush Hammer Case Throttle Switch Regulating Switch Fuel Tank Fuel Tank Lid Air Filter Fuel Bubble Damper Spanner Throttle Cable Starter... - Page 5 2. DESCRIPTION OF SAFE OPERATION 1. The operator must wear slip-resistant safety shoes and suitable clothing. For long-time operation, he or she must wear goggles, the helmet and earplugs. 2. While operating the machine, please keep balance of body; the user shall stand in front of Air Filter and operate the machine.
-
Page 6: Preparation Before Use
3. MAIN PURPOSE AND FUNCTION 3.1 Purpose: It can be used for outside piling operation in farms, orchard fences or barriers. 3.2 Function 3.2.1 It is a handheld gasoline pile driver which boasts light weight and low discharge capacity. 3.2.2 The product conforms to design of man-machine engineering, reduces working strength of the operator to the greatest extent, and boasts simple and comfortable operation. - Page 7 4.2.6 The machine uses pure gasoline. 4.3 Inspection and Supply of Engine Oil 4.3.1 To prevent gasoline engine damage, before starting the engine, check for the necessity of replacing gasoline; after the engine has worked for over 10 hours, please check the oil level and supplement to the upper limit. 4.3.2 Place the gasoline engine horizontally, turn off the oil scale and check the liquid level as shown in Fig.
-
Page 8: Operation
5. STARTING 5.1. Before starting the new machine, press the transparent and semi-circle fuel bubble repeatedly (Fig.4) until carburetor is filled with fuel. (If the engine is cool, close the air door. Open air door after starting.) Damper off Damper on Fig. -
Page 9: Technical Maintenance
Stop Switch Fig 7 8. TECHNICAL MAINTENANCE 8.1 Air Filter Check air filter regularly. Soot deposit blocking filter element of air filter will reduce power of gasoline engine and service life. If the filter has too much soot deposit, clean it with warm water and detergent, and then wipe dry it with dry cloth, and then install the air filter. - Page 10 8.4 Spark plug To ensure normal operation of the engine, spark plug gap must be proper. Remove carbon sediment with a wire brush. Proper gap of spark plug is 0.5-0.7 mm. See Fig. 11. Fig 11 8.5 Muffler Regularly clean dirt on the inlet and outlet of the muffler or clean dirt inside the muffler with detergent.
- Page 11 d. Place the engine horizontally, and add recommended oil to the edge of the refueling month bottom and the refueling amount can be referred to that in Fig. 4. e. After engine oil discharge, residual oil may exist. Refuel when the residual oil is less than 100mL and slowly refuel to the edge of the refueling month bottom.
-
Page 12: Failure Analysis And Troubleshooting
FAILURE ANALYSIS AND TROUBLESHOOTING Problem analysis and solving Example 1: Difficulties in starting engine in cooling state. Whether Spark Plug is damp →Wipe dry Spark Plug ↓ Whether the spark plug produces electric spark →Replace Spark Plug ↓ Too much fuel absorbed →Reduce the fuel supply Example 2: Difficulties in restarting after a sudden stop Whether fuel is used up or carburetor is blocked... - Page 13 10. KEY DATA OF PRODUCT Gasoline engine type 4-stroke, overhead camshaft, single cylinder,Huasheng 140FA Model CT4343 L×W×H (mm) 805×275×360 Fuel 86 octane unleaded gasoline or higher Oil level 0.08L Oil can capacity 0.65L Weight 20.2Kg Displacement 37.7cm Max power and rotate speed 1.0KW/6500r/min...
-
Page 14: Maintenance Cycle
11. MAINTENANCE CYCLE The following Data are common data of the product. Under worse working conditions such as thick dust or long work hours of pile driver, the maintenance cycle should be shortened correspondingly. Outlook check (state, √ √ The whole machine tightness of screws) Clean √... - Page 15 12. PARTS LIST AND EXPLODED VIEW OF PILE DRIVER Parts Description Q’ty Parts Description Q’ty engine Flange Nut M18×1.5 Inner Hexagon Screw M6×25 Hammer Guide Sleeve Inner Hexagon Screw M6×20 Inner Hexagon Screw M8×20 Gearbox Piling Bush Deep Groove Ball Bearings Inner Hexagon Screw 6202-2RZ M8×40...
- Page 16 Exploded View of Pile Driver...
- Page 17 Exploded view of gasoline engine and part list Description Q’ty Description Q’ty Description Q’ty Screw M5*15 Ignition Stator Nut M8 Cylinder Cover Screw M4*14 Washer Screw M5*12 Stapping Wire Clutch Cylinder valve Exhaust Valve Washer cover Oil gas separator Inlet valve Screw Pin Inside cover Balancing...
- Page 18 Engine Exploded View...
- Page 20 CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Made in China...
