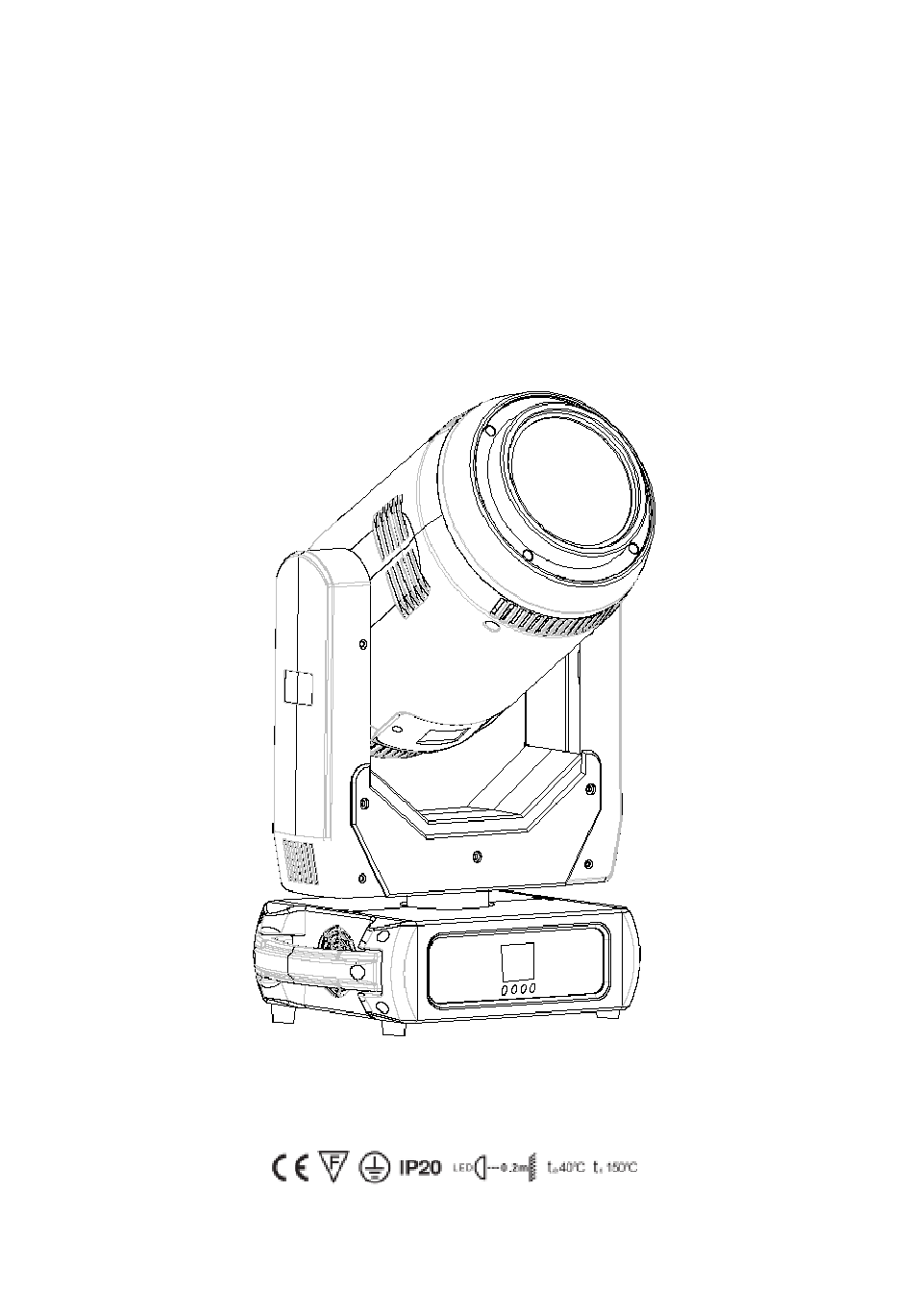

- Page 1 350W LED 3in1 Moving Head Light User Manual...
-
Page 2: Table Of Contents
Note: This manual include important information on how to install and use it safely. Please read it carefully before install and operate as required. At the same time, please keep this manual properly for emergencies. Contents 1. Safety warning …………………………………………………………3 2. -
Page 3: Safety Warning
The warranty period of the whole machine is one year, and the light source is not within warranty. SAFETY INSTRUCTIONS Notice Please read the safety requirements in this section carefully before installing, energizing, operating or repairing ! The following important safety signs will be used in this product manual ●... - Page 4 ● Do not look directly at the light source of the lamp (especially for patients with epilepsy) to avoid damage to the eyes! ● Do not connect this lamp to any other dimming device. ● If visible damage occurs to the light source, lens or display protective cover on the lamp, it is damaged to the extent of failure.
- Page 5 ● Under normal working conditions at room temperature, the temperature of the outer metal surface of the lamp (including the surface of the radiator) will reach 50°C at the highest temperature. ● There will be smoke and peculiar smell before the light is turned on for the first time.
-
Page 6: User Instructions
USER INSTRUCTIONS Cleaning and Maintenance When the lamp cannot be started, please check whether the power fuse of the lamp is blown. The lamp is equipped with an overheating protection device. The protection device will automatically cut off the power when it is overheated. When this happens, please check whether the fan is running normally and whether the fan and fan net are blocked by dust. - Page 7 please use the Y-axis control channel to keep the lamp head down. ● Do not wipe the lamp housing with organic solvents such as alcohol to avoid damage. ● Do not use any solvents containing chemical components to clean the coated color filters.
-
Page 8: Lamp Appearance
LAMP APPEARANCE INSTALLATION Warning!! To ensure safety, please pass the safety rope through the connection hole to ensure safety. Clamps Safety cable Take out the 2 hooks and 1 safety rope that came with the machine, use the 4 hook quick knobs attached to the hooks to install the 2 hooks on the bottom of the luminaire, and then hang the luminaire on the fixed bracket with the hooks and twist Tighten the... - Page 9 hook and lock bolts to fix the whole lamp. Please confirm that the lamp is installed firmly and reliably, and ensure that the hoisting position has enough strength to bear the weight of the lamp. For safety reasons, please follow the warning shown in the figure above to pass the safety rope provided with the lamp through the safety hole at the bottom of the lamp holder for auxiliary lifting to ensure safety.
- Page 10 ● Connection of control signal: The connection between the lamp and the controller and between the lamp and the lamp must use a two-core shielded wire with a diameter of not less than 0.5 mm. Please use a 3-pin (included) XLR plug/seat to connect the DMX512 output/inlet of the lamp. The connection between the XLR plug/socket and the wire is shown in the list above.
-
Page 11: Function Setting
Signal in Lopper DMX512 DMX loop plug In the "controller mode", the DMX output port of the last lamp must be connected to the DMX loop plug. This circuit is inserted between pin 2 and pin 3 of the "Canon" plug and connected with a resistance of about 120Ω... - Page 12 To view or modify the function settings of the lamp, press any key (in the power-on state) to light up the screen, and then press the UP and DOWN keys to enter the corresponding menu of the lamp. There are corresponding sub-menus in the function operation main menu, and each menu represents a specific function of the lamp.
- Page 13 ● Stand-alone mode Do not connect the controller and the control line. When the automatic program of the host mode of the lamp is set to be valid, the lamp will run in the stand-alone mode. ● Master/Slave synchronization mode If you need to connect multiple lamps to the master/slave synchronization mode, first connect the XLR-XLR control line from the DMX output port of the first lamp to the DMX input port of the second lamp, and from the DMX output port of the second lamp...
-
Page 14: Menu Operation
MENU OPERATIONS MENU Address Set Set Address Numbers] 001-255 Pan reverse (On/Off) Tilt reverse (On/Off) Display (On/Off) Screen Reverse (On/Off) Setup [Function Setting] Channel (16/18CH Select) Sensitivity (01-100) Motor zero Reset Factory Set [DMX] Run Mode [AUTO] Auto 1- Auto 2 [SOUND] [MANUAL] Manual Test... -
Page 15: Dmx Channel
DMX CHANNEL 18/16 channel mode sheet Channel 18CH 16CH Function Description Value 0-255 0-540° Pan fine 0-255 Pan Fine Tilt 0-255 0-270° Tilt Fine 0-255 Tilt Fine X, Y speed 0-255 From fast to slow 0-255 From dark to bright Dimmer Turn on LED Strobe... - Page 16 open Gobo1 7-13 Gobo2 14-20 Gobo3 21-27 Gobo4 28-34 Gobo5 35-41 Gobo6 42-48 Gobo7 49-55 Gobo 8 56-63 Gobo 8 shake 64-70 Static gobo CH10 Gobo 7 shake wheel 71-77 Gobo 6 shake 78-84 Gobo 5 shake 85-91 Gobo 4 shake 92-98 Gobo 3 shake 99-105...
- Page 17 Gobo Rotate CW from slow to fast 128-191 Gobo Rotate CCW from slow to fast 192-255 0-15 open Gobo Rotation 0-250 16-95 Gobo Rotating 0-90 96-135 Gobo Rotating 0-300 136-155 Gobo CH10 CH12 Gobo Rotating 0-360 156-175 Rotation Gobo self-rotating CW from slow to 176-215 fast Gobo self-rotating CCW rotating from...
-
Page 18: Technical Parameters
300-253 Reset 254-255 No action TECHNICAL PARAMETER 350W High Output White LED · · 50,000 hours lifespan and low power consumption · Zoom angle 8°~35°, focus function · High light output,25000LUX@5M at White light zoom in, · 1500LUX@5M at White light zoom out ·... - Page 19 Specifications Input Voltage: AC90-260V 50/60Hz Light Source: 350W High Output White LED Control Signal: DMX 512, master-slave and sound activated or auto operation Control Channel: 16/18 DMX Channels USITT DMX-512 Power Consumption: 450W Dimensions: 312(L)*222(W)*590(H)mm Packing size: 390(L)*310(W)*710(H)mm Net Weight: 16kg,Gross Weight: 19kg...
-
Page 20: Photometric Data
PHOTOMETRIC DATA...
