Power Fist 8843732 Instructions Manual

Power Fist 8843732 Instructions Manual

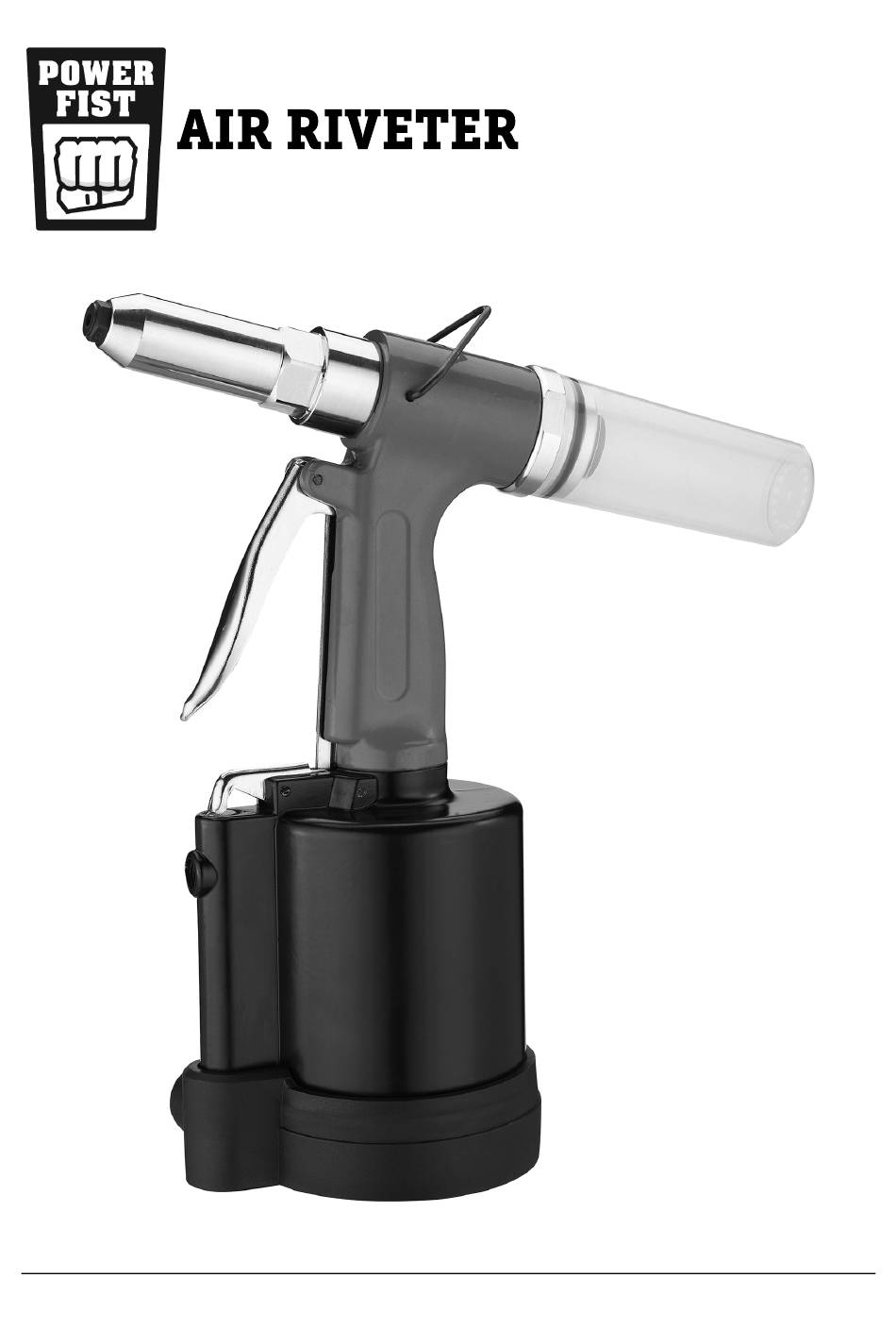

1/4 in. air riveter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
V1.0
8843732
1/4 IN.
Please read and understand all instructions before use. Retain this manual for
future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8843732 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Power Fist 8843732

Summary of Contents for Power Fist 8843732

  • Page 1 V1.0 8843732 1/4 IN. Please read and understand all instructions before use. Retain this manual for future reference.

  • Page 2: Specifications

    8843732 1/4 in. Air Riveter V1.0 SPECIFICATIONS Air Inlet 1/4 in. Rivet Size 1/4, 3/16, 5/32, 1/8 in. Air Consumption 0.03 CFM Pressure Rating 90 PSI Pulling Force 3,083 lb Material Aluminum and Steel Housing HAZARD DEFINITIONS Please familiarize yourself with the hazard notices found in this manual. A notice is an alert that there is a possibility of property damage, injury or death if certain instructions are not followed.

  • Page 3: Work Area

    V1.0 1/4 in. Air Riveter 8843732 INTRODUCTION The 1/4 in. Air Riveter is ideal for installing 1/8 to 1/4 in. long blind rivets. The air riveter can use either steel or aluminum rivets. The air riveter holds the ejected pins into a clear safety cap for later disposal.

  • Page 4: Specific Safety Precautions

    8843732 1/4 in. Air Riveter V1.0 Wear steel toe footwear or steel toe caps to prevent a foot injury from falling objects. PERSONAL PRECAUTIONS Control the tool, personal movement and the work environment to avoid personal injury or damage to tool.
  • Page 5 V1.0 1/4 in. Air Riveter 8843732 exceed the maximum pressure rating of the tool (see Specifications). Exceeding the maximum PSI rating can create a bursting hazard, causing injury and property damage. Never use oxygen, combustible gas or any other bottled gas as a power source.
  • Page 6 8843732 1/4 in. Air Riveter V1.0 Do not allow people, mobile equipment or vehicles to pass over the unprotected air hose. Position the air hose away from high traffic areas, in a reinforced conduit or place planks on both sides of the air hose to create a protective trench.

  • Page 7: Assembly And Installation

    V1.0 1/4 in. Air Riveter 8843732 Contents: • Air Riveter • Wrench x 2 • Nosepiece x 4 • • O-ring x 4 (#B02 and B12) IDENTIFICATION KEY Nosepiece Outer Sleeve Hanging Hook Safety Cap Trigger Air Filter Air Cylinder 1/4 in.

  • Page 8: Operation

    8843732 1/4 in. Air Riveter V1.0 NOSEPIECES Remove the base cover (#34) from the air cylinder (Fig. 2) Select the appropriate sized nosepiece (A) for your task from the four nosepieces stored in the bottom (Fig. 3). Fit the wrench’s center hex (#C02) over the nosepiece and twist counterclockwise to free it (Fig.

  • Page 9: Care And Maintenance

    V1.0 1/4 in. Air Riveter 8843732 the mandrel at the rivet head and eject the scrap mandrel into the safety cap. Repeat Steps 3 to 5 until all rivets are installed. Shut the compressor down and discharge all air from the system before changing the nosepiece for a different diameter rivet.
  • Page 10 8843732 1/4 in. Air Riveter V1.0 Unscrew the air cylinder cover (#24) by turning the nut counterclockwise and then lifting the cover and piston assembly away from the cylinder (Fig. 5). The hydraulic oil level should barely cover the lock nut (#18) connecting the air cylinder to the handle (#11).
  • Page 11 V1.0 1/4 in. Air Riveter 8843732 CLEANING AND CHANGING THE JAWS Remove the outer sleeve with the small wrench’s (#C02) box end. Slide the small wrench’s (#C02) open end onto the flats of the socket (#7). Slide the large wrench’s (#C03) open end onto the jaw carrier’s (#3) flats.

  • Page 12: Troubleshooting

    8843732 1/4 in. Air Riveter V1.0 NOTICE! Never use a penetrating oil to lubricate an air tool. Penetrating oil acts as a solvent that will dissolve the tool’s grease packing and may damage the o-rings, causing the tool to seize or malfunction.
  • Page 13 V1.0 1/4 in. Air Riveter 8843732 Problem(s) Possible Cause(s) Suggested Solution(s) Tool runs at 1. Have a qualified technician Motor parts worn. normal speed, but service the tool. loses power 2. Replace tool or parts. under load. Tool runs slowly.
  • Page 14 8843732 1/4 in. Air Riveter V1.0 Problem(s) Possible Cause(s) Suggested Solution(s) The stroke is too 1. The rivet pin is not 1. Fully insert the rivet pin. short. properly inserted into 2. Top up the hydraulic oil the riveter. reservoir and prime the 2.

  • Page 15: Parts Breakdown

    V1.0 1/4 in. Air Riveter 8843732 PARTS BREAKDOWN Visit www.princessauto.com for more information...
  • Page 16 8843732 1/4 in. Air Riveter V1.0 PARTS LIST DESCRIPTION Linker Nosepiece Press plank Outer sleeve Air valve Jaw carrier Valve spring Jaw assembly Copper washer Riveter pusher Plastic seal Spring Spring Socket Clamp nut Base cover Principal axis B01 O-ring...
  • Page 17 V1.0 1/4 in. Air Riveter 8843732 Visit www.princessauto.com for more information...
  • Page 18 8843732 1/4 in. Air Riveter V1.0 For technical questions call 1-800-665-8685...
  • Page 19 V1,0 8843732 DE 1/4 PO Vous devez lire et comprendre toutes les instructions avant d'utiliser l'appareil. Conservez ce manuel afin de pouvoir le consulter plus tard.

  • Page 20: Spécifications

    8843732 Riveteuse pneumatique de 1/4 po V1,0 SPÉCIFICATIONS Entrée d’air 1/4 po Taille de rivet 1/4, 3/16, 5/32, 1/8 po Consommation d’air 0,03 pi cubes/min Pression nominale 90 lb/po carré Force de tirage 3,083 lb Matériau Boîtier en aluminium et acier DÉFINITIONS DE DANGER...
