KTC ATBX12 Instruction Manual

Brake Service Tool Set (ATBX12) Instruction Manual
Thank you for purchasing KTC Brake Service Tool Set.
In order to use the tool safely and correctly, please be sure to read this handling instruction before use.
(Please keep this instruction manual with the product.)
This product is an assembly / disassembly tools for Drum Brake.

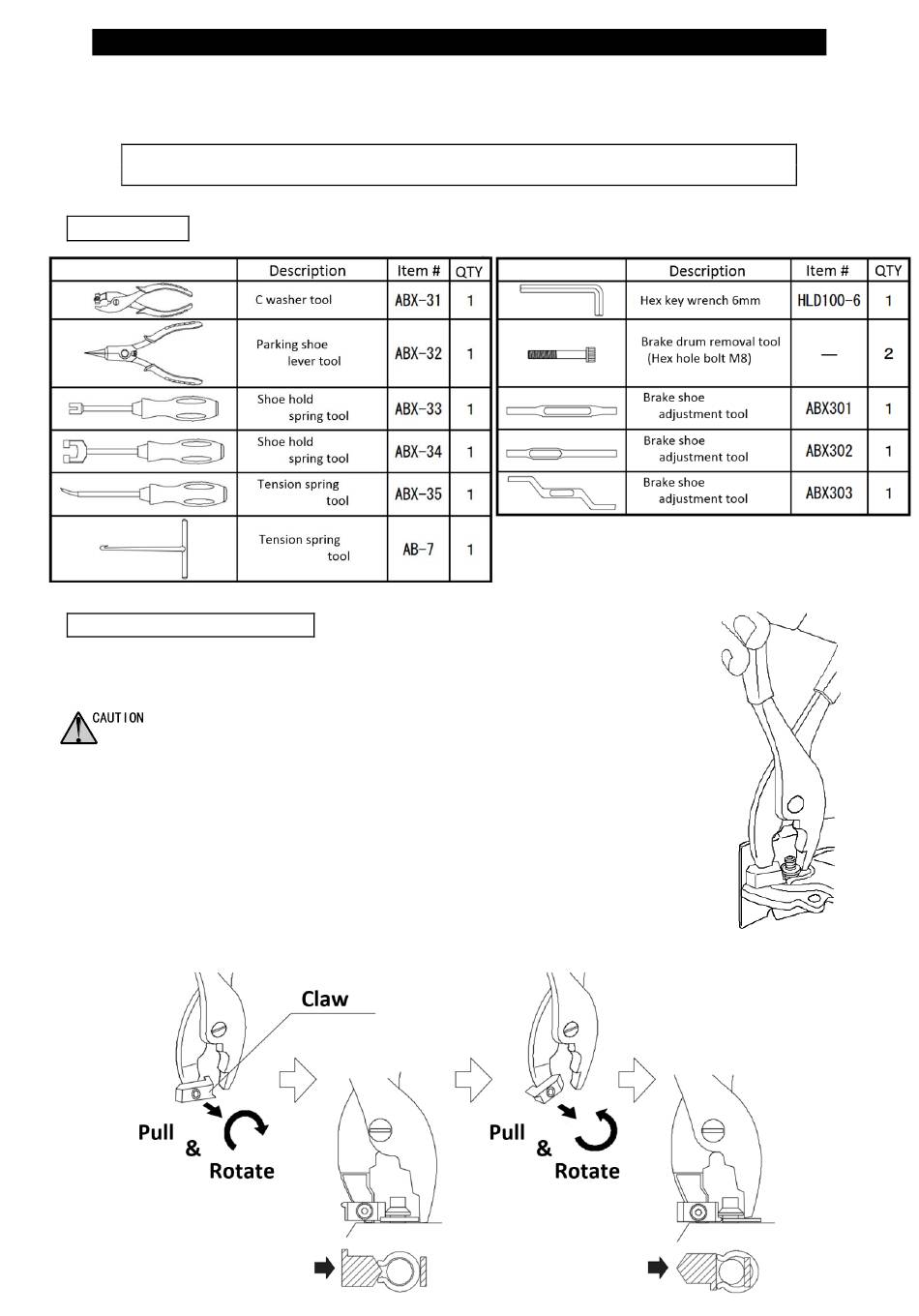

Includes

C Washer Tool (ABX-31)

Pliers that are used for removing C-Washer which is fixed on Brake Shoe.
This pliers can be used for standard-sized automobile and small track (2 tons class)
Please use this product only for its intended use.
Do not use the tool if there is crack or deformation.
Usage Instructions
1. Pull and rotate the Claw. Wedge should be facing inward.
2. Align the caulking part of C-Washer with wedge of Claw.
Hold the grip, and expand the width of C-Washer.
3. Pull and rotate the Claw again. Planar part of Claw should be facing inward.
4. Attach the planer part of Claw with expanded C-Washer. Hold the grip, and force out the C-Washer.
Please use this product only for its intended use.
