GENERAL DESCRIPTION
The MAC-32-OD is a thirty-two output control unit that offers a wide choice of communication options.
Listed below are the major features of this versatile unit.
Outputs

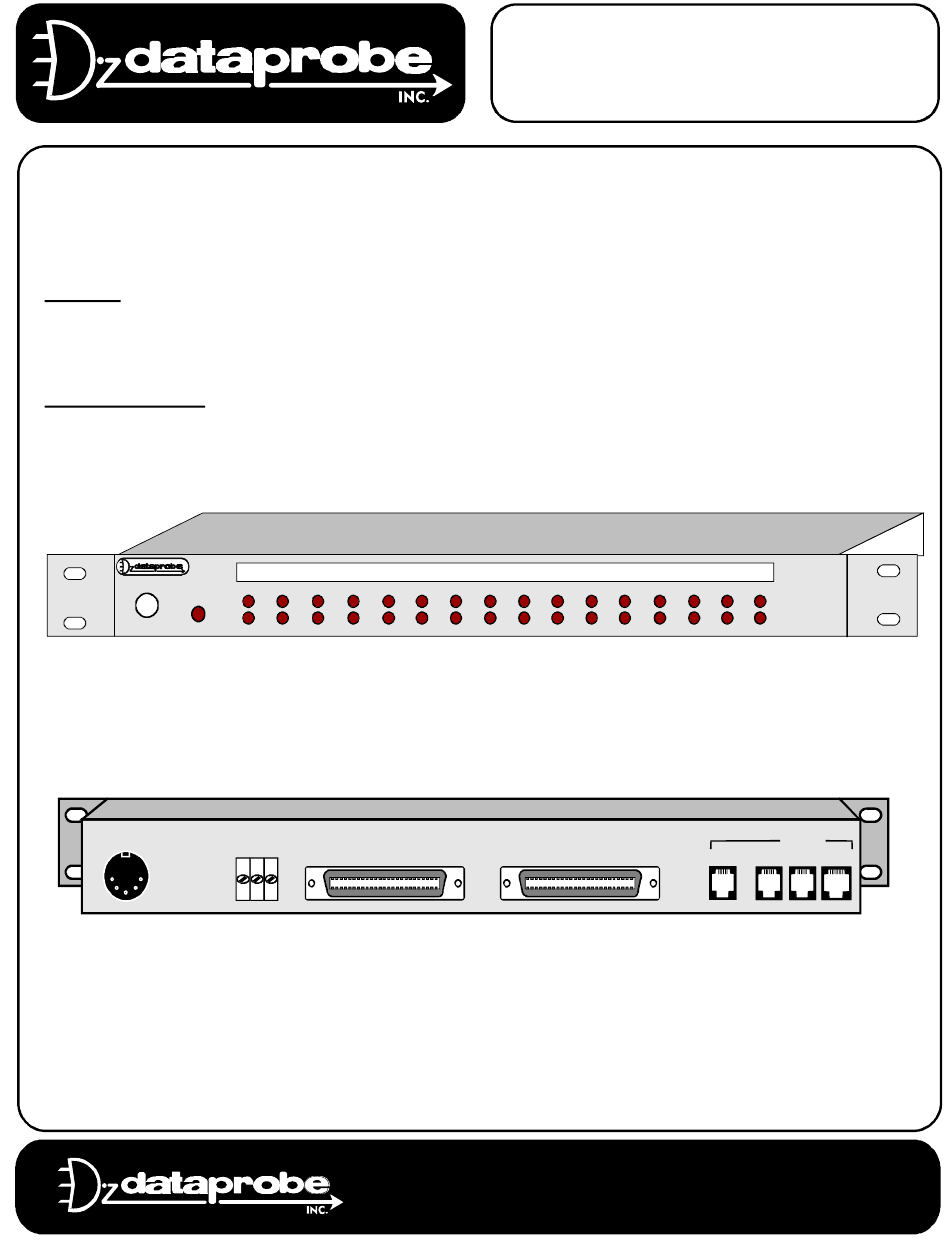

The MAC-32-OD has 32 form 'C' relays that can be controlled by a remote terminal. Connection to
these relays is made via two 50 pin telco connectors on the rear of the unit. The status of each of the
32 relays is displayed by 32 LED's (two banks of sixteen).
Communications
The MAC-32-OD offers both RS-232 and RS-485 communications facilities. An internal modem and
software options are available.
