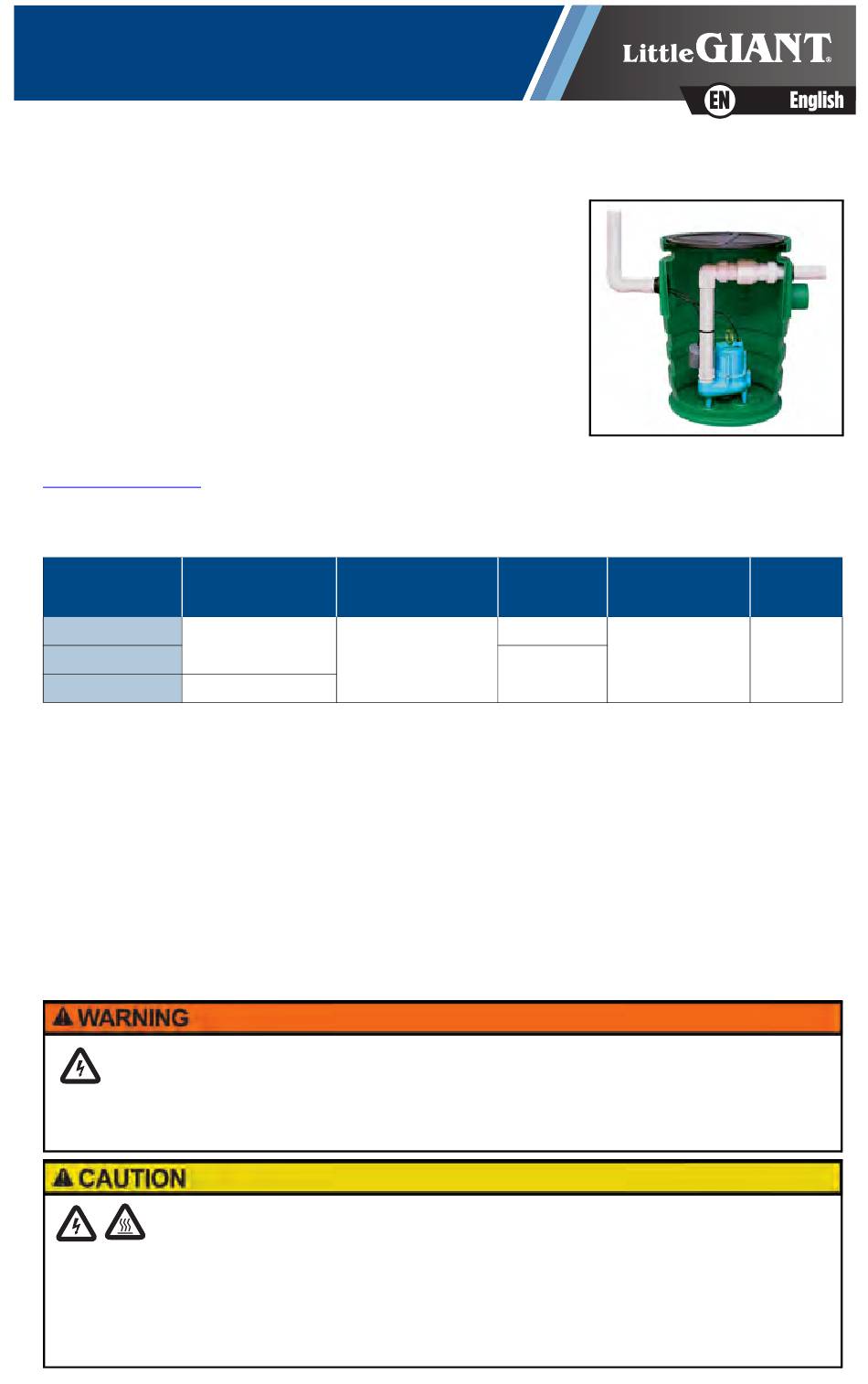

OWNER'S MANUAL
WCR Series

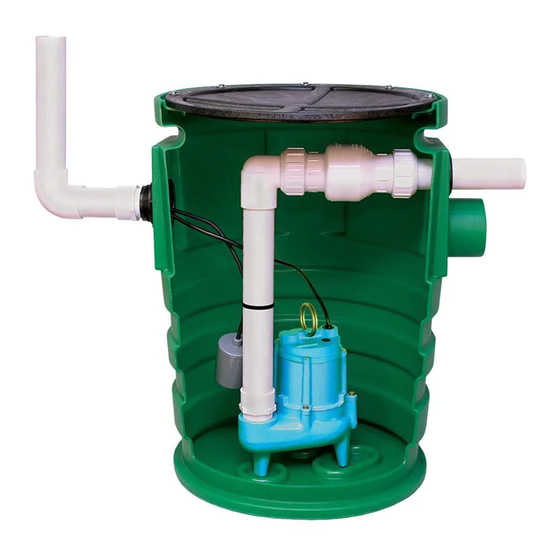

The WCR water collection removal basin is designed for use in residen-
tial applications to collect surface drainage and divert it away from
structures, erosion-poor landscapes, and poor drainage areas. The cover
is not suitable for heavy traffic load. Locate the basin in low spots in
landscaping that anticipate rainfall.
The basin inlet is designed to fit a 4-inch perforated PVC pipe. The outlet
can be routed to street curbs or other runoff areas. Install the basin so
the cover is flush or above surface level.
This product is covered by a Limited Warranty for a period of 3 years
from the date of original purchase by the consumer. For complete warranty information, refer to
www.LittleGiant.com.

Specifications

Model
WCR-16GP
WCR-9SP
WCR-9SS

SAFETY INSTRUCTIONS

This equipment should be installed and serviced by technically qualified personnel who are familiar with
the correct selection and use of appropriate tools, equipment, and procedures. Failure to comply with
national and local electrical and plumbing codes and within Little Giant recommendations may result in
electrical shock or fire hazard, unsatisfactory performance, or equipment failure.
Know the product's application, limitations, and potential hazards. Read and follow instructions carefully to
avoid injury and property damage. Do not disassemble or repair unit unless described in this manual.
Failure to follow installation or operation procedures and all applicable codes may result in the following
hazards:
Risk of severe injury or death by electrical shock.
Check local electrical and building codes before installation. The installation must be in accordance with their regulations as well
as the most recent National Electrical Code (NEC) and the Occupational Safety and Health Act (OSHA).
Do not use the power cord for lifting the unit.
Risk of bodily injury, electric shock, or equipment damage.
This equipment must not be used by children or persons with reduced physical, sensory or mental abilities, or lacking in experi-
ence and expertise, unless supervised or instructed. Children may not use the equipment, nor may they play with the unit or in
the immediate vicinity.
Operation of this equipment requires detailed installation and operation instructions provided in this manual for use with this
product. Read entire manual before starting installation and operation. End User should receive and retain manual for future use.
Keep safety labels clean and in good condition. Keep work area clean, well-lit, and uncluttered.
Cover
Structure Foam
Steel
Discharge
Pump HP
inches (mm)
2 (51)
Check Valve
1
2" Slip x Slip
4/10
Volts
115

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WCR Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Little Giant WCR Series

  • Page 1 Failure to comply with national and local electrical and plumbing codes and within Little Giant recommendations may result in electrical shock or fire hazard, unsatisfactory performance, or equipment failure.
  • Page 2 INSTALLATION Typical Installation INSTALLATION Typical Installation 2" adapter Washers 2" adapter 10" PVC pipe 2 Pump float 5" PVC pipe 2" street elbow 4" intake 9SC-CIA-RF 3 Air bleed hole 2" elbow Cover pump 509412 4 Ty-Rap 11" PVC pipe Check valve Pump power cord and 5 17"...
  • Page 3 REPLACEMENT PARTS Vent Plumbing Vent Plumbing 1. Assemble rubber washer inside tank and plastic washer on outside of tank. 2. Install 2-inch bulkhead fitting, PVC conduit, and elbow. • Use only adequate primers and solvent cements for PVC pipe. • Use the provided 2-inch PVC Schedule 40 conduit to bring the power and switch cords safely above ground or to a depth of at least 18 inches below surface.
  • Page 4 For technical assistance, parts, or repair, please contact: 800.701.7894 | littlegiant.com Franklin Electric Co., Inc. | Oklahoma City, OK 73157-2010 987363 Rev. 004 08/22 Copyright © 2022, Franklin Electric, Co., Inc. All rights reserved.
