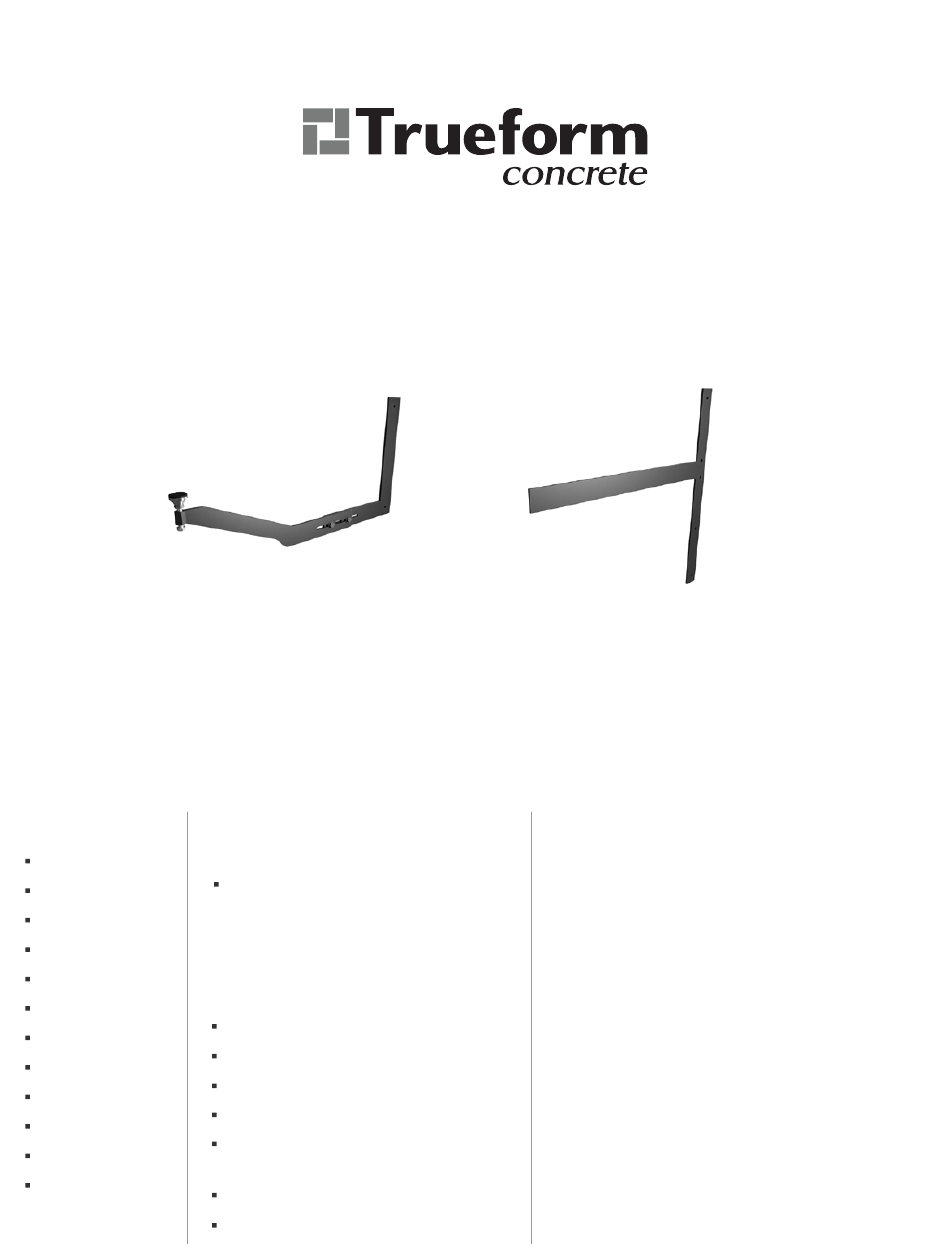

"J1" (ADJUSTABLE) BRACKETS IN COMBINATION WITH "T" BRACKETS
APPLICATIONS
Trueform Adjustable Stud Brackets and T Brackets can be mounted to either wood studs or steel* studs.
TOOLS NEEDED
Pencil
Tape Measure
Laser level
Torpedo level
2 C-clamps
Drill
3/16" drill bit
5/16" drill bit
1/2" socket
1/2" box wrench
9/16" socket
Silicone
INSTALLING YOUR CONCRETE SINK USING
FSB-B1-AS
FSB-B1-AL
INCLUDED HARDWARE
T Bracket
5/16" x 2-1/2" hex head wood screw
(5 per bracket)
Each Adjustable Stud Bracket (FSB-B1-AL
or FSB-B1-AS) includes the following:
Part B1
Part AL or AS (depends on sink depth)
3/8" swivel foot (1 per bracket)
3/8" x 2" hex head screw (1 per bracket)
5/16" x 1-1/2" hex head wood screw
(2 per bracket)
5/16"-18 x 1" bolt (2 per bracket)
5/16"-18 nut (2 per bracket)
FSB-T
MOUNTING TO WOOD STUDS
Complete mounting hardware is included for wood
stud applications only.
*MOUNTING TO STEEL STUDS (MIN. 18 GA)
Although these brackets are engineered for both
wood and steel studs, Trueform strongly
recommends outfitting the wall with wood studs
when possible. Therefore, mounting screws are
not included for steel stud applications.
If brackets must be installed on steel studs, we
recommend using 5/16" hex-head sheet metal
screws. Also note that applicable steel studs
should be no thinner than 18 gauge.
Advertisement
Table of Contents
Related Manuals for TRUEFORM FSB-B1-AS
Summary of Contents for TRUEFORM FSB-B1-AS
- Page 1 “J1” (ADJUSTABLE) BRACKETS IN COMBINATION WITH “T” BRACKETS FSB-B1-AS FSB-T FSB-B1-AL APPLICATIONS Trueform Adjustable Stud Brackets and T Brackets can be mounted to either wood studs or steel* studs. TOOLS NEEDED INCLUDED HARDWARE MOUNTING TO WOOD STUDS T Bracket Pencil Complete mounting hardware is included for wood stud applications only.
- Page 2 Determine and mark the distance from Center to where the left and right brackets will be mounted. The Bracket-to-Center dimensions are found on your Trueform Custom Drawing. If there is no stud where the brackets will be attached, either a full stud must be added or an existing nearby stud must be packed to meet this distance.
- Page 3 Use the 5/16” and 3/16” drill bits in the same manner as the T Bracket installation steps 7 & 8. Use the 1/2" socket to drive the 5/16” x 1-1/2” hex head wood screws into the stud. Repeat steps 1-6 for all Parts B1. The wall can now be closed up and finished with drywall or tile. Attach Parts AS or AL slightly less than hand-tight to Parts B1 using the 5/16”-18 nuts and bolts so you can adjust Parts AS or AL to their final locations.
- Page 4 Warranties, Limitations of Liability and Exclusive Remedies TRUEFORM warrants for a period of one (1) year from the date of delivery that its Products shall perform in a good and workmanlike manner in accordance with applicable standards; comply with any applicable laws, rules or regulations; and not violate or infringe upon any presently issued patent or copyright of any third party.
