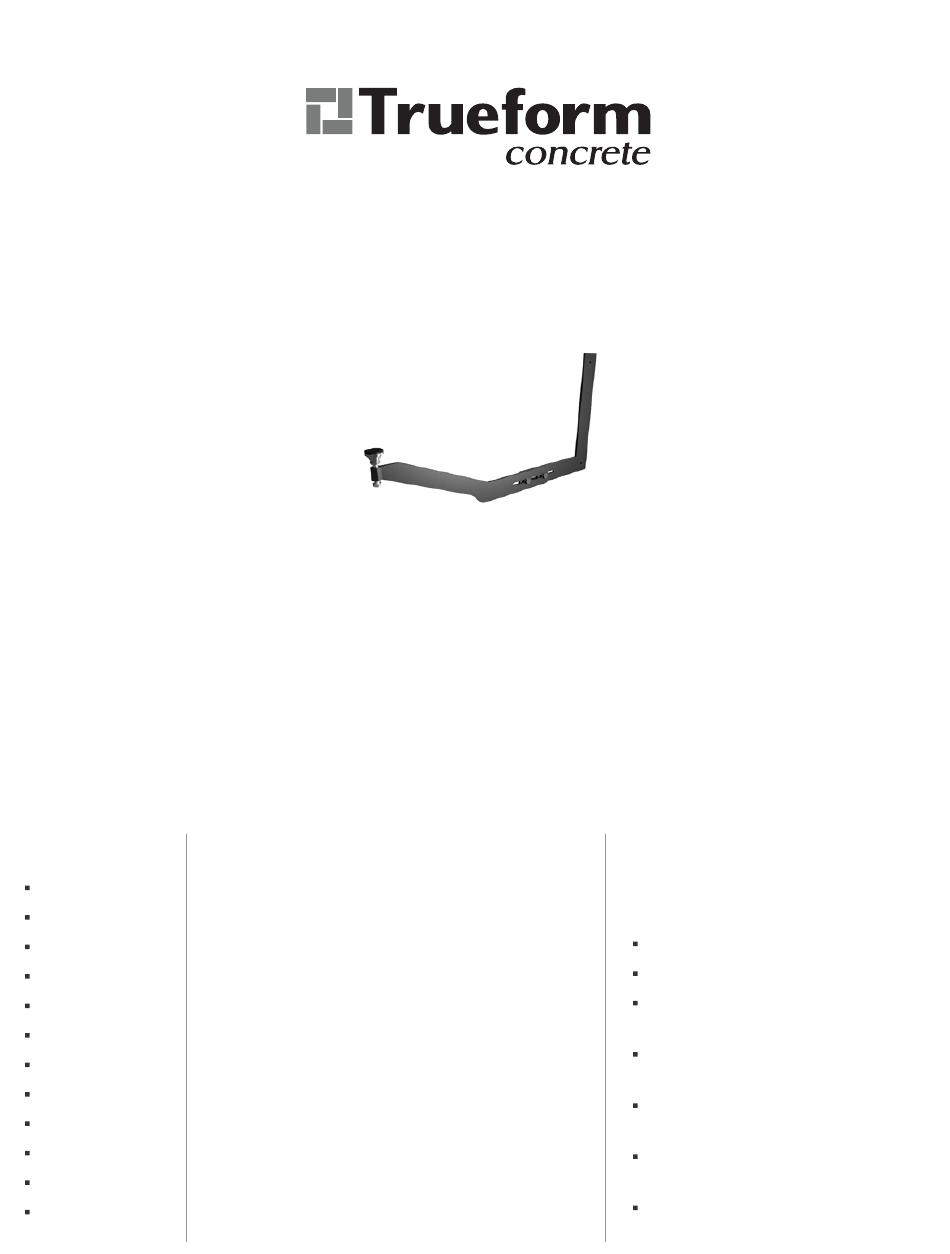

TRUEFORM concrete FSB-B1-AS Installing

Adjustable stud brackets

Advertisement

APPLICATIONS

Trueform Adjustable Stud Brackets can be mounted to either wood studs or steel studs*.

TOOLS NEEDED

Pencil
Tape Measure
Laser level
Torpedo level
2 C-clamps
Drill
3/16" drill bit
5/16" drill bit
1/2" socket
1/2" box wrench
9/16" socket
Silicone
INSTALLING YOUR CONCRETE RAMP SINK USING
ADJUSTABLE STUD BRACKETS
MOUNTING TO WOOD STUDS
Complete mounting hardware is included for wood
stud applications.
*MOUNTING TO STEEL STUDS (MIN. 18 GA)
Although these brackets are engineered for both
wood and steel studs, Trueform strongly
recommends outfitting the wall with wood studs
when possible. Therefore, mounting screws are not
included for steel stud applications.
If brackets must be installed on steel studs, we
recommend using 5/16" hex-head sheet metal
screws. Also note that applicable steel studs should
be no thinner than 18 gauge.
FSB-B1-AS
FSB-B1-AL

INCLUDED HARDWARE

Each Adjustable Stud Bracket (FSB-B1-AL
or FSB-B1-AS) includes the following:
Part B1
Part AL or AS (depends on sink depth)
3/8" swivel foot
(1 per bracket)
3/8" x 2" hex head screw
(1 per bracket)
5/16" x 1-1/2" hex head wood screw
(2 per bracket)
5/16"-18 x 1 bolt
(2 per bracket)
5/16"-18 nut
(2 per bracket)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the concrete FSB-B1-AS and is the answer not in the manual?

Questions and answers

Summary of Contents for TRUEFORM concrete FSB-B1-AS

  • Page 1 INSTALLING YOUR CONCRETE RAMP SINK USING ADJUSTABLE STUD BRACKETS FSB-B1-AS FSB-B1-AL APPLICATIONS Trueform Adjustable Stud Brackets can be mounted to either wood studs or steel studs*. TOOLS NEEDED MOUNTING TO WOOD STUDS INCLUDED HARDWARE Complete mounting hardware is included for wood...
  • Page 2 Each Adjustable Stud Bracket has 2 parts: B1: Stud Mount AL or AS: Supporting Arm Step 1. Installing the Stud Mount (Part B1) It is important to note that brackets must be mounted to wood (or steel*) studs and must be perfectly leveled, both independently and to each other.
  • Page 3 Step 2. Attaching & Setting the Supporting Arm (AS or AL) Attach Parts AS or AL slightly less than hand-tight to Part B1 using the 5/16”-18 nuts and bolts so you can adjust their final location. Set the distance from the center of the swivel feet to the finished wall, which is determined by subtracting 1-3/4”...
  • Page 4 Warranties, Limitations of Liability and Exclusive Remedies TRUEFORM warrants for a period of one (1) year from the date of delivery that its Products shall perform in a good and workmanlike manner in accordance with applicable standards; comply with any applicable laws, rules or regulations; and not violate or infringe upon any presently issued patent or copyright of any third party.
