TIDRADIO UV82 8W Programming Guide
INTRODUCTION

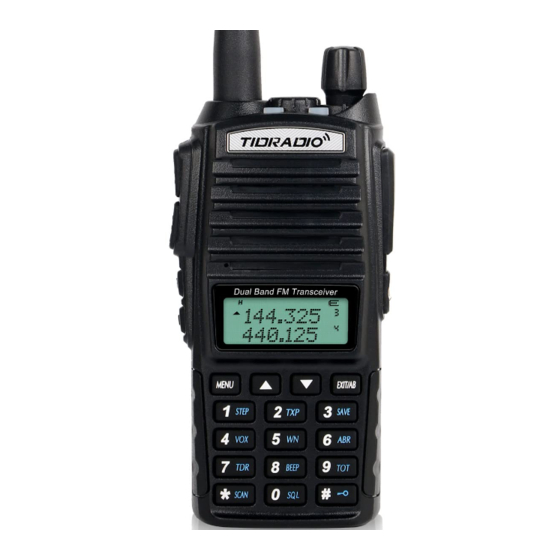

TIDRADIO UV82 8W is a dual-band (VHF, UHF) versatile amateur radio. It offers 128 channels,
you can add or remove channels from scanning list and give channels alphanumeric names via
programming with a computer. This Programming Guide will help you get a quick start to
program the radio.
Contents
1. Driver Install Guide............................................................................................... 2
2.Radio Reading ........................................................................................................ 4
3.Channel Information ............................................................................................. 6
4.Optional Feature .................................................................................................... 7
1) Basic Setting ....................................................................................................................... 8
2) Channel Mode ................................................................................................................... 8
3) DTMF .................................................................................................................................... 9
4) Frequency mode ................................................................................................................10
5) Backlight and Sound .........................................................................................................11
6) FM Radio ..............................................................................................................................11
5. Write and Save .......................................................................................................11
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TIDRADIO UV82
Summary of Contents for TIDRADIO UV82
-
Page 1: Table Of Contents
TIDRADIO UV82 8W Programming Guide INTRODUCTION TIDRADIO UV82 8W is a dual-band (VHF, UHF) versatile amateur radio. It offers 128 channels, you can add or remove channels from scanning list and give channels alphanumeric names via programming with a computer. This Programming Guide will help you get a quick start to program the radio. -
Page 2: Driver Install Guide
Driver Install Guide Driver Download Website: walkietalkiesoftware.com Click “Software” Select the driver compatible with your computer system, and then download to install WINDOWS TROUBLESHOOTING HELP(How to check the COM Port): 1.Get into “Window Setting”, then search “Device Manager”. - Page 3 2.Open “Device Manager”, and unfold Port (COM & LPT) to check the existing port. 3.If there is no yellow warning triangle,your system install the correct driver and you are ready to Software Website : walkietalkiesoftware.com load your programming software. ( 4.If there is a yellow warning triangle under 'Ports' or 'Other Devices',you operating system has a previous driver that may cause incompatibility issues and you will need to update the driver to the latest driver:...
-
Page 4: Radio Reading
2. Radio Reading Programming software download link: walkietalkiesoftware.com Download and run the TD-UV82 programming software, click Setting – Port menu, select the corresponding port number, click “OK”. Read the current information from the radio to your PC to create an initial program template. -
Page 5: Channel Information
3. Channel Information The TD-UV82 radio has 128 channels, you can edit the channel number and channel information according to your needs. The following is an introduction to each term. Name Meaning Setting Description RX Freq Receiving frequency VHF:136-174MHz UHF:400-520MHz... -
Page 6: Optional Feature
Scan OFF/ON In the scan mode, whether add the channel to the scan list. ON: the channel is added to scan list; OFF: channel cannot scanned. Signal Signal code 1-15 Selects 1 of 15 DTMF codes. The DTMF codes are programmed with software and are up to 5 digits each Name... -
Page 7: Basic Setting
1) Basic Setting Name Meaning Settings Description TOT(Time Transmission 15-600(s) This feature provides a limits transmission Out) time-out timer time to a programmed value. This will promote battery conservation by not allowing you to make excessively long-time transmissions and in the event of a stuck PTT switch, it can prevent interference to other users as well as battery depletion. -
Page 8: Dtmf
3) DTMF Name Setting Description OFF: No DTMF Side Tones are heard DTMF ST Determines when DTMF side tones (DTMF side tone of KB Side Tone: Side Tones are heard only can be heard from the transceiver transmit code) from manually keyed DTMF codes speaker ANI Side Tone: Side Tones are heard only from... -
Page 9: Frequency Mode
signal. Uncheck: No matter if the channel is occupied, the radio will transmit the signal when you press the [PTT] key. Beep(keypad beep) Allows audible confirmation of a key press 4) Frequency mode STEP: Select the amount of frequency change in VFO/Frequency mode when scanning or pressing the keys. -
Page 10: Backlight And Sound
Click Program - Write Data To Radio, or click the icon to write and save the setting to the radio. *If you have any problem with the TD-UV82 radio using or programming, please don’t hesitate to contact us via support: walkietalkiesoftware.com. It’s always our honor to help.
