TIDRADIO TD-H6 Programming Guide
INTRODUCTION

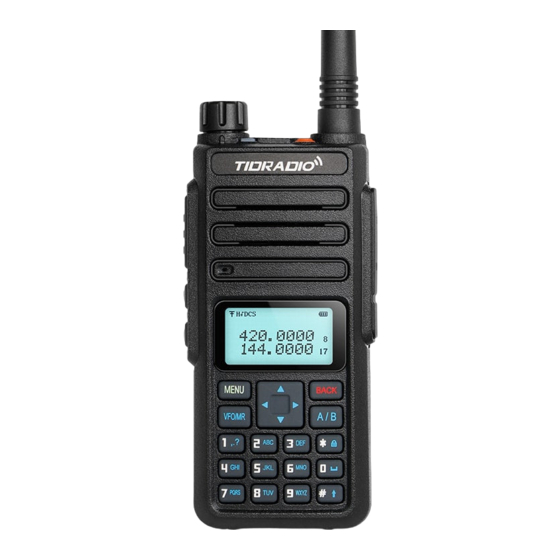

TIDRADIO TD-H6 is a dual-band (VHF, UHF) versatile amateur radio. It offers 128
channels, you can add or remove channels from scanning list and give channels
alphanumeric names via programming with a computer. With the enhanced
capabilities of the TD-H6 radio, this Programming Guide will help you get a quick
start to program the radio.
Contents
1. FTDI Cable Use Guide........................................................................................... 2
2.Radio Reading ........................................................................................................ 5
3.Channel Information ............................................................................................. 6
4.Optional Feature .................................................................................................... 7
1) Basic Setting ....................................................................................................................... 8
2) Channel Mode ............................................................................................................. ...... 8
3) DTMF ........................................................................................................................... .......... 9
4) Frequency mode ................................................................................................................ 10
5) Backlight and FM Radio.................................................................................................... 11
5. Write and Save ....................................................................................................... 11
1
Advertisement
Table of Contents
Related Manuals for TIDRADIO TD-H6
Summary of Contents for TIDRADIO TD-H6
-
Page 1: Table Of Contents
With the enhanced capabilities of the TD-H6 radio, this Programming Guide will help you get a quick start to program the radio. -
Page 2: Ftdi Cable Use Guide
A：walkietalkiesoftware.com is an excellent resource site. Also visit our Facebook pages (TIDRADIO) for more help. ERROR: Failed to Connect to the transceiver (Radio) If it says it cannot connect to the radio - this means the cable is working but is not installed correctly into the radio. - Page 3 WINDOWS TROUBLESHOOTING HELP: 1.Get into “Window Setting”, then search “Device Manager”. 2.Open “Device Manager”, and unfold Port (COM & LPT) to check the existing port. 3.If there is no yellow warning triangle, your system install the correct driver and you are ready to Software Website : walkietalkiesoftware.com load your programming software.
- Page 4 4.If there is a yellow warning triangle under 'Ports' or 'Other Devices', you operating system has a previous driver that may cause incompatibility issues . 5. click the error device and click “Uninstall device” and you will need to update the driver to the latest driver: IF THIS HAPPENS UPDATE THE DRIVER AND DOWNLOAD THE LATEST DRIVER AT : http://www.ftdichip.com/Drivers/VCP.htm...
-
Page 5: Radio Reading
2. Radio Reading Programming software download link: walkietalkiesoftware.com Download and run the TD-H6 programming software, click Setting – Port menu, select the corresponding port same as the port number viewed by Device Manager, click “OK”. Read the current information from the radio to your PC to create an initial program template. -
Page 6: Channel Information
3. Channel Information The TD-H6 radio has 128 channels, you can edit the channel number and channel information according to your needs. The following is an introduction to each term. Name Meaning Setting Description RX Freq Receiving frequency VHF:136-174MHz UHF:400-520MHz... -
Page 7: Optional Feature
OFF: channel cannot scanned. Signal Signal code 1-15 Selects 1 of 15 DTMF codes. The DTMF codes are programmed with software and are up to 5 digits each Name Customize channel name Up to 10 digits. Support alphanumeric channel name. 4. -
Page 8: Basic Setting
1) Basic Setting Name Meaning Settings Description TOT(Time Transmission 15-600(s) This feature provides a limits transmission Out) time-out timer time to a programmed value. This will promote battery conservation by not allowing you to make excessively long-time transmissions and in the event of a stuck PTT switch, it can prevent interference to other users as well as battery depletion. -
Page 9: Dtmf
3) DTMF Name Setting Description DTMF ST OFF: No DTMF Side Tones are heard Determines when DTMF side tones (DTMF side tone of can be heard from the transceiver KB Side Tone: Side Tones are heard only transmit code) from manually keyed DTMF codes speaker ANI Side Tone: Side Tones are heard only from... -
Page 10: Frequency Mode
keyboard is locked. AutoLock(automatic When ON, the keypad will be keypad lock) locked if not used in 8 seconds. Pressing the [#╓O] key for 2 seconds will unlock the keypad. BCL(busy channel Lock- Check: If the channel is occupied, out) when you press the [PTT] key on this channel, the radio will make a beep tone and will not transmit any... -
Page 11: Backlight And Fm Radio
Click Program - Write Data To Radio, or click the icon to write and save the setting to the radio. *If you have any problem with the TD-H6 radio using or programming, please don’t hesitate to contact us via support: walkietalkiesoftware.com. It’s always our honor to help.
