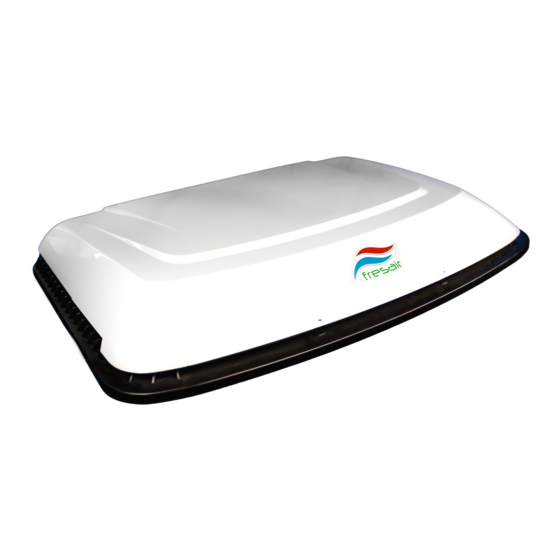

Fresair S6 Manual

Van conversion kit
Hide thumbs Also See for S6:
Table of Contents

Advertisement

Quick Links

Download this manual
S6 - VAN CONVERSION KIT MANUAL
© Fresair, LLC. | All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S6 and is the answer not in the manual?

Questions and answers

Related Manuals for Fresair S6

Summary of Contents for Fresair S6

  • Page 1 S6 - VAN CONVERSION KIT MANUAL © Fresair, LLC. | All Rights Reserved...

  • Page 2: Table Of Contents

    Dear User Congratulations on your new purchase! As a Fresair Air Cooling Unit owner, you’re about to enjoy the fruits of an innovative, high quality product designed exclusively to provide you with extreme comfort in hot climates. We take pride in our products and want you to feel confident installing and operating the Fresair Air Cooling unit, that’s why we prepared this manual.

  • Page 3: Main Components

    ➊ Remote Control IR receiver ➋ Low Water LED ➌ Water Pump on LED ➍ Fan on LED ➎ Fan On/Off ➏ Water Pump On/Off ➐ Interior Light On/Off ➑ Cycle through Fan Speeds (5 Fan speeds) © Fresair, LLC. Fresair.com 3 of 25...

  • Page 4: Safety Information

    Children must be supervised to ensure that they do not play with the product. Do not undo the upper cover of the Fresair Air Cooling Unit in case of a fire. Use approved extinguishing agents instead. Do not use water to extinguish fires.

  • Page 5: Technical Data

    Only install the Fresair Air Cooling Unit using the installation instructions provided in the manual. The Fresair unit uses minimal 12V power to pull air from the outside of the vehicle, through an anti-bacterial and anti-fungal pine straw filter, delivering strong directional air through the four adjustable air vents.
  • Page 6 Capacity 18L water tank Autonomy 15-22 hours Double fan with ohmic resistance Voltage Maximum Nominal Current 12V/10A Fan Speed 4000 rpm Weight Maximum Air Flow 400 m³/h Insulation Class 1Ω © Fresair, LLC. Fresair.com 6 of 25...
  • Page 7 Cool with air flow (ceiling fan or window.) Use directional air from vents on the body. Daytime cooling only. For enclosed RV/VAN/Trailer sleeping you will need traditional AC. NOTE These figures are estimates based upon aggregated data. Fresair is not responsible for exact achievable temperatures or comfort zones as installations differ.

  • Page 8: Technical Assistance

    Technical Assistance Fresair is committed to providing guidance to ensure optimal performance, understanding routine maintenance and preventative care. Should you need any assistance or guidance on performance, preventative care, maintenance or general questions please contact an authorized dealer or reach out to us directly at support@fresair.com.

  • Page 9: Operation Information

    Fresair Air Cooling unit. • Do not insert foreign objects into the system. Observe the following instructions to ensure your Fresair Air Cooling Unit is used properly and efficiently. It is recommended that you: Park your vehicle in the shade when possible.

  • Page 10: Warranty Information

    In no case will Fresair exchange the product for a replacement solely due to a defective component. A. Damages caused by accidents;...

  • Page 11: Parts: Maintenance

    Water Pumps INJECTION: The injection pump is located on the outside of the water reservoir and sends water to the Fresair unit. RETURN: The return pump is located in the tray and returns excess water to the reservoir.
  • Page 12 NOTICE! Periodical maintenance is essential for optimal performance and prolonging the life of your Fresair Air Cooling unit. We recommend preventative maintenance and replacing of wearable parts annually or as outlined in the manual, coinciding with your yearly vehicle maintenance.

  • Page 13: Parts: Installation

    Bag #1 (2) 4mm x 50mm (2) M5 x 10mm (10) Zip Ties (5) Tie Mounting Washer Head Screws Pads Screws (2) Fresair Decals (4) M5 x 15mm (1) Remote Control Fresair Owner's Screws Manual Water Reservoir —OR— 18L Water...
  • Page 14 (4) M8 x 40mm Bolts (4) M8 x 60mm Bolts (4) M8 x 80mm Bolts (4) M8 x 100mm Bolts (8) M8 Self (4) Red End Caps (8) M8 Flat Locking Nylon Washers Nuts © Fresair, LLC. Fresair.com 14 of 25...

  • Page 15: How To Install

    Prep Tip: It is very important that the roof surface is clean to ensure a weather-tight seal between the base of the Fresair unit and your roof. Take time to determine where you wish to install your Fresair. Ensure that the unit is placed between roof support bars so you don’t compromise roof integrity.
  • Page 16 Step 3 - Testing the Fit What you’ll need: Fresair Unit Test the fit of the Fresair Unit by lowering it in the area you’ve just cut out and make any necessary adjustments accordingly. Be careful not to crimp or damage the water hoses ©...
  • Page 17 How to Install Step 4 - Drop in the Bolts What you’ll need: Fresair Unit, Screwdriver, 8MM/5/16” drill bit Remove the cover of the Fresair unit and locate the black push tabs that release the pine filter (note how the filter slots into the Red End Cap front channel of the base.) (See figure 1)
  • Page 18 Step 5 - Adhering the Sealing Foam Tape What you’ll need: Fresair Unit, Sealing Foam Tape With the unit still in place and secure, use a permanent marker to draw an outline around the outside base of the unit on the roof.
  • Page 19 How to Install Step 6 - Mounting the Fresair Unit What you’ll need: Fresair Unit, 4 Bolts, 4 Washers, 4 Nuts, 4 Waterproof Bolt Caps, 6 Cover Screws, 2 Finishing Frame Screws, *Screwdriver, *Crescent Wrench(es), *Selfleveling lap sealant/Silicone Choose the ideal bolt length for your installation and roof finish. (Excess bolt length can always be removed with an angle-grinder later.) The bolts you choose will need...
  • Page 20 Connect the negative wire (black) to the negative terminal of your fuse block. Ensure both wire connections are tightened properly and completely secured to the fuse block. Next, test the power (using the Fresair power button on the unit) to ensure your unit turns on. Electrical Diagram...
  • Page 21 Connect the electrical connectors to the float sensor and injection pump. Once you’re ready, fill your reservoir with water and seal with the provided cap. Finally, power on your Fresair and ensure there are no leaks. Additionally, test all functions to ensure your Fresair is working properly...
  • Page 22 How to Install Figure 5 Vertical Orientation Return Water Line Negative Wire Fuse Positive Wire Float Sensor Water Pump & Connector Water Injection Line © Fresair, LLC. Fresair.com 22 of 25...
  • Page 23 How to Install Horizontal Orientation Figure 6 Water Injection Line Return Water Line Water Pump & Connector Float Sensor Negative Connection Fuse Positive Connection © Fresair, LLC. Fresair.com 23 of 25...

  • Page 24: Cleaning & Care

    Cleaning & Care Please observe the following tops for the cleaning and care of your Fresair Air Cooling Unit. Clean the external cover of the unit removing dirt and debris on and around the unit as often as you wash your vehicle.
  • Page 25 Your Local Your Local Dealer Support fresair.com/dealer fresair.com/contact © Fresair, LLC. | All Rights Reserved...
