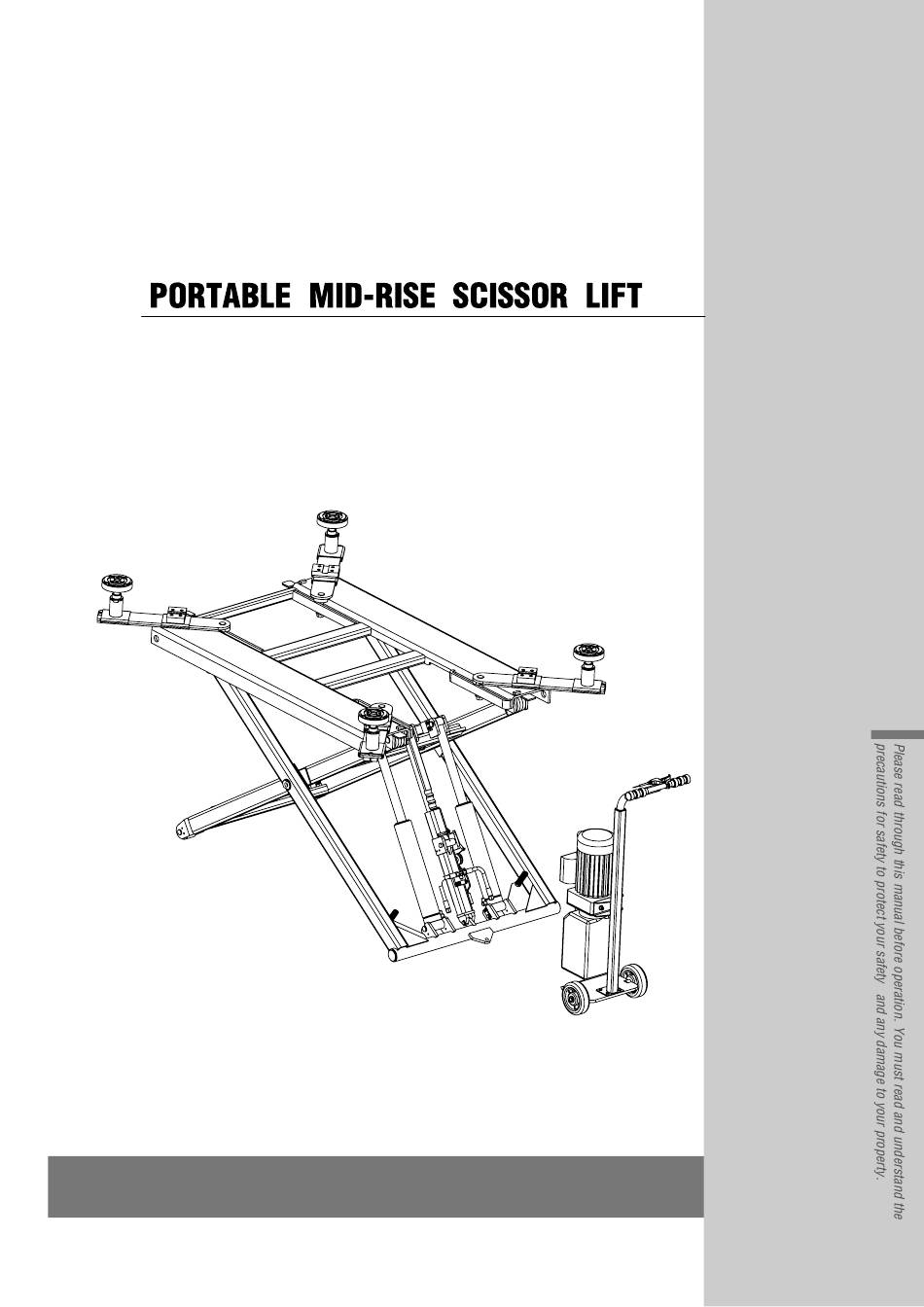

- Page 1 Installation/Operation & Maintenance Manual MODEL: HXL6128 Version: HR202003.1.0-WJ...
- Page 3 Please read this instruction carefully for safe and proper use of the car lift, and keep it handy for future reference. ■ This Manual is for model : HXL6128 ■ As for the assurance of safety in design and construction of car lift, read this Manual first.
-
Page 5: Table Of Contents
Installation/Operation & Maintenance Manual HXL6128 MID-RISE SCISSOR LIFT TABLE OF CONTENTS TABLE OF CONTENTS PACKING, TRANSPORTATION AND STORAGE MANUAL INSTRUCTION Chapter 1 DESCRIPTION OF THE MACHINE Chapter 2 SPECIFICATIONS Chapter 3 SAFETY Chapter 4 INSTALLATION AND DEBUGGING 4.1 INSTALLATION 4.2 DEBUGGING Chapter 5 OPERATIONS 5.1 OPERATION NOTICE... - Page 6 Installation/Operation & Maintenance Manual HXL6128 MID-RISE SCISSOR LIFT...
-
Page 7: Packing, Transportation And Storage
Installation/Operation & Maintenance Manual HXL6128 MID-RISE SCISSOR LIFT of missing parts, possible defects or damage due to PACKING, TRANSPORTATION AND transport operations. STORAGE If finding missing parts, possible defects or damage due to transport, one should examine damaged cartons according to Packing List to verify the... - Page 8 Installation/Operation & Maintenance Manual HXL6128 MID-RISE SCISSOR LIFT CONSERVING THE MANUAL MAINTENANCE FITTER: person authorized for routine maintenance of the lift. This manual is an integral part of the Manufacturer owns the right to make lift. The manual must be kept in the vicinity of...
-
Page 9: Chapter 1 Description Of The Machine
Chapter 2 SPECIFICATIONS MACHINE Main Technical Parameter: Machine Application: Model No. HXL6128 HXL6128 portable mid-rise scissor lift can lift cars, Capacity 2800kg vans and light-duty trucks whose weight is less than Max. Lifting Height 1050mm 3000kg, which is ideal for tyre, wheel and brake Max. - Page 10 Installation/Operation & Maintenance Manual HXL6128 MID-RISE SCISSOR LIFT Model……………………….…………...…Gear Pump The lift will also handle customized or non-standard vehicles provided they are within the maximum Max. Flux………………......………4.3cc/r specified carrying capacity. Joint Type……………...……Joint Overfull Valve Also the personnel safety zone must be defined in Continuous Working Pressure…………….210bar...
- Page 11 Installation/Operation & Maintenance Manual HXL6128 MID-RISE SCISSOR LIFT prohibited. During operations persons are admitted Never remove or deactivate the guards and ● to the area beneath the vehicle only when the mechanical, electrical, or other types of safety vehicle is already in the elevated position, when the devices;...
-
Page 12: Chapter 3 Safety
Installation/Operation & Maintenance Manual HXL6128 MID-RISE SCISSOR LIFT Chapter 3 SAFETY Be sure to lift only approved vehicles, never ● exceed specified carrying capacity, In the manual all safety notices are shown as maximum height, and projection (vehicle length follows: and width);... - Page 13 Installation/Operation & Maintenance Manual HXL6128 MID-RISE SCISSOR LIFT Fig. 8 Risk of Impact Fig. 7 RISK OF FALLING OFF (PERSONNEL) During up and down operations, personnel are There is nothing abnormal should be prohibited from entering the platforms and the left on the safety modules to prevent safety gear vehicle to avoid falling off.
-
Page 14: Chapter 4 Installation And Debugging
Installation/Operation & Maintenance Manual HXL6128 MID-RISE SCISSOR LIFT Chapter INSTALLAION DEBUGGING RISK OF ELECTRIC SHOCK Risk of electric shock in areas of insulated and shattered electric equipments. S K I L L E D A N D A U T H O R I Z E D... -
Page 15: Debugging
Installation/Operation & Maintenance Manual HXL6128 MID-RISE SCISSOR LIFT Press the lift button. Check if the machine is ● lifted up. (if the machine is with 3-phase motor and the lift does not go up, change the Only skilled special person is allowed connection of any two of the three live lines.) -
Page 16: Chapter 5 Operations
Installation/Operation & Maintenance Manual HXL6128 MID-RISE SCISSOR LIFT Chapter 5 OPERATIONS 5.3 OPERATION PROCEDURE Drive the car onto the lift. ● Stop the car when the center of gravity of car ● Only skilled and having been trained and lift are together. Apply the brake. -
Page 17: Chapter 6 Maintenance And Caare
Installation/Operation & Maintenance Manual HXL6128 MID-RISE SCISSOR LIFT Chapter MAINTENANCE CARE Skilled personnel only is allowed to perform the operations. All bearings and hinges on this machine must ● be lubricated once a week by using an oiler. Fig. 14 Make sure that the locking mechanism works ●... -
Page 18: Chapter 7 Trouble Shooting Guide
Installation/Operation & Maintenance Manual HXL6128 MID-RISE SCISSOR LIFT Chapter 7 TROUBLE SHOOTING GUIDE 7.1 PUMP MOTOR DOES NOT RUN: a) Breaker tripped or fuse blown. Check breaker and incoming power. b) Motor thermal overload tripped. Wait for overload to cool. -
Page 19: Appendix A Special Notes
Installation/Operation & Maintenance Manual HXL6128 MID-RISE SCISSOR LIFT APPENDIX B SPARE PARTS APPENDIX A SPECIAL NOTES B.1 SPARE PARTS A.1 DISPOSAL OF USED OIL When replacing parts and making repairs, comply Used oil, which is removed from the power unit and... - Page 20 Installation/Operation & Maintenance Manual HXL6128 MID-RISE SCISSOR LIFT...
- Page 21 Installation/Operation & Maintenance Manual HXL6128 MID-RISE SCISSOR LIFT...
- Page 22 Installation/Operation & Maintenance Manual HXL6128 MID-RISE SCISSOR LIFT PARTS NAME QUANTITY PARTS NAME QUANTITY PLATFORM ASSEMBLY LOCKING PLATE MOVING ARM ASSEMBLY CYLINDRICAL PIN ELASTICAL CYLINDRICAL FIXED ARM ASSEMBLY RUBBER PAD INNER SUPPORTING BAR SUPPORTING PLATE LOCKING BAR SUPPORTING BRACKET INNER HEXGON NUT...
