RAYN Installation Guide
Lyda Lamp Head and LED Driver
The Lyda lamp head ships complete the LED driver and the cables required for On/Off
operation utilizing mains power.
7

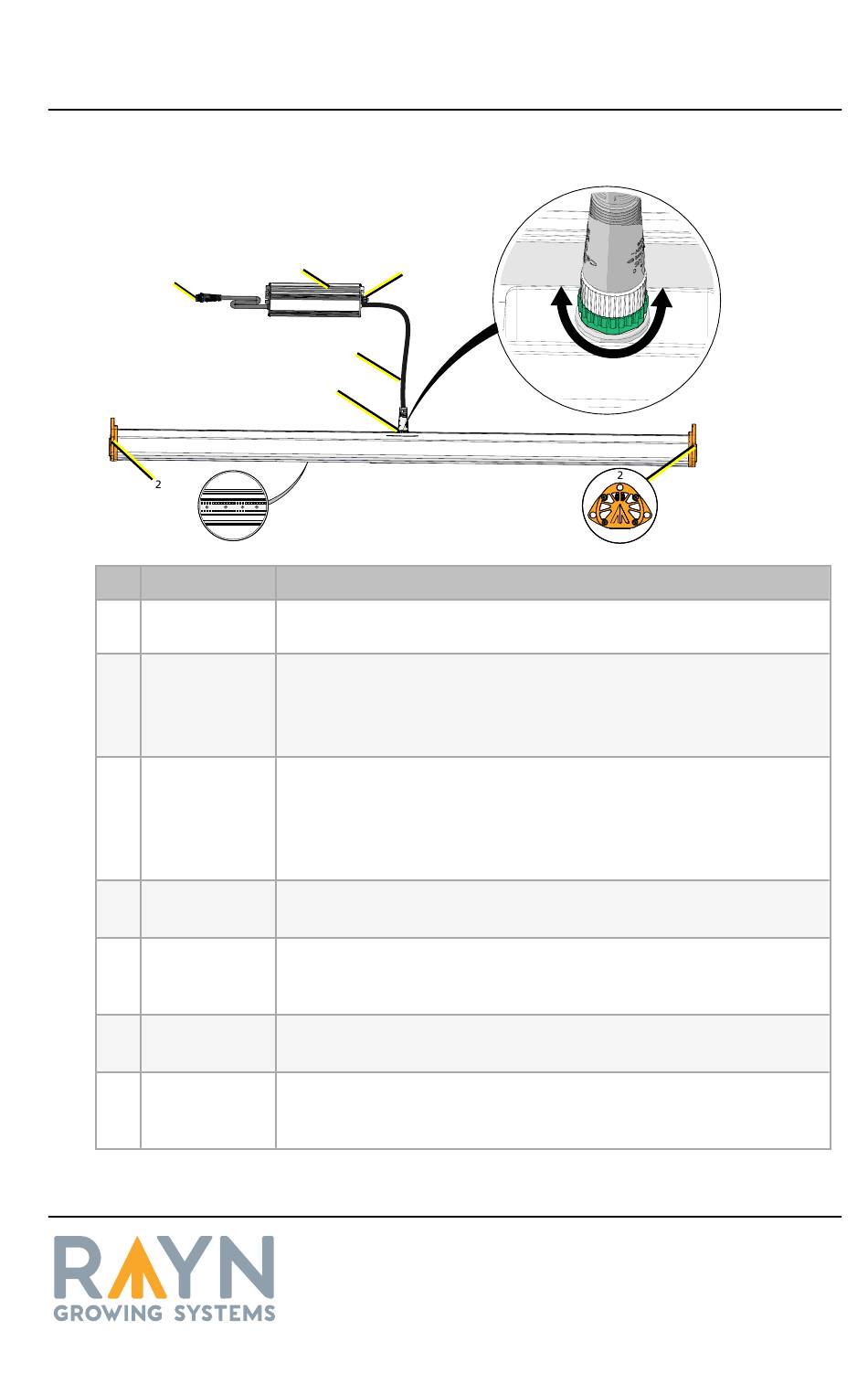

ID
Description
1
LEDs
2
Suspension
Points
3
Lamp Cable
Input
4
Lamp Cable
5
1-10 V
Dimming
Input
LED driver
6
7
Input Power
Cable
Adapter
6
4
(3 m [10 ft])
3
1
Notes
Available in Sun Spectrum (5000K) LEDs or White plus Deep
Red LEDs
Each end cap offers three suspension points. One on top for
straight down installation, and two others for sideways
installation. The lamp head must be supported on both ends
when installed.
Attach the lamp cable from the LED Driver to the lamp head
input receptacle. Rotate the locking ring counter-clockwise to
connect the Lamp Cable to the lamp head. Rotate the locking
ring clockwise to disconnect the Lamp Cable from the lamp
head.
The lamp cable between the driver and the lamp head is
provided (3 m [10 ft]).
Optional use for dimming control. Remove the protective
cover for connection of a DMX Adapter or a third-party 1-10 V
dimming controller.
The power source for one Lyda lamp head and auxiliary power
for the DMX Adapter accessory. See
Attachment point for a regional specific power cable. Available
with regional specific connector or bare ends. See the Lyda
System Installation and User Manual for details.
RAYN Growing Systems | Middleton, WI | +1 844 907 RAYN
© 2022 RAYN Growing System, LLC. | All Rights Reserved.
Trademark and patent
information and specifications subject to change. | RAYN intends this
document to be provided in its entirety.
7431M2100 Rev B Released 2022–05
r a y n g r o w i n g s y s t e m s . c o m
Rotate
clockwise
5
to disconnect
info: rayngrowingsystems.com/ip
Rotate
counter-
clockwise
to connect
Electrical
for details.
