DRAWN BY:
J. SMITH
CHECKED BY:
J. OLSON

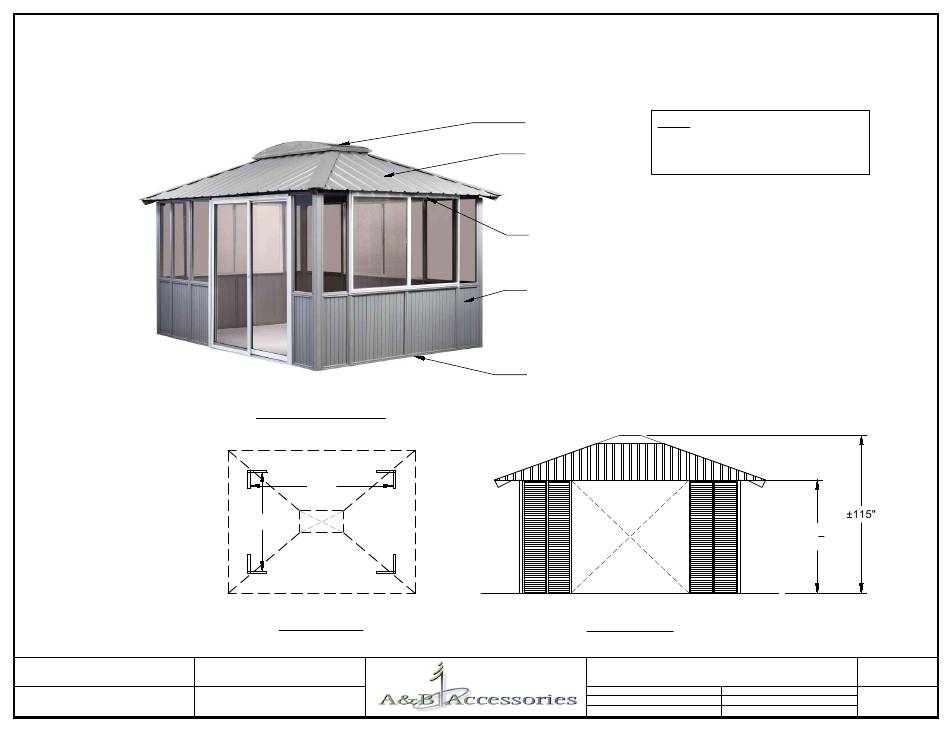

BASIC 10' x 14' GAZEBO
QUICK REFERENCE OVERVIEW SHOWING BASIC COMPONENTS
ISOMETRIC VIEW
156"
108"
PLAN VIEW
SCALE: 1/8" = 1'-0"
SCALE:
AS NOTED
DATE:
12/28/2015
NOTE: MAKE SURE BUILDING SITE IS
SKYLIGHT
LEVEL AND HAS NO OBSTRUCTIONS
(ROOF OVERHANGS, ELECTRICAL
MAINTENANCE
WIRES, TREE BRANCHES, ETC.)
FREE ROOF
SILL FRAME
CORNER PILLARS
(DESIGN STYLES VARY
FROM MODEL TO MODEL)
EXISTING DECK OR
PATIO SURFACE
ELEVATION
SCALE: 3/16" = 1'-0"
10' x 14' Gazebo
TITLE:
Overview
REVISION NUMBER:
82 3
"
8
JOB #:
10x14
DATE:
DWG #:
PAGE 1
Advertisement
Table of Contents
Related Manuals for A&B Accessories BASIC 10' x 14' GAZEBO
Summary of Contents for A&B Accessories BASIC 10' x 14' GAZEBO
- Page 1 BASIC 10' x 14' GAZEBO QUICK REFERENCE OVERVIEW SHOWING BASIC COMPONENTS NOTE: MAKE SURE BUILDING SITE IS SKYLIGHT LEVEL AND HAS NO OBSTRUCTIONS (ROOF OVERHANGS, ELECTRICAL MAINTENANCE WIRES, TREE BRANCHES, ETC.) FREE ROOF SILL FRAME CORNER PILLARS (DESIGN STYLES VARY...
- Page 2 PART A: PART B: PART C: SIDE PART D: DIAGONAL CORNER RAFTER MIDDLE RAFTER UPPER SILL PLATE PART C1: SILL PLATE PART C2: SILL PLATE CORNER GUSSET QTY: 4 SIZE: 78" (1980mm) QTY: 6 SIZE: 57 1/2" (1460mm) QTY: 4 SIZE: 79"...
- Page 3 PART T1: BRACKET PART T2: BRACKET PART T4: BRACKET PART T6: BRACKET PART T3: BRACKET QTY: 4 QTY: 4 QTY: 2 QTY: 4 QTY: 4 PART U2: SCREW PART U3: SCREW PART U4: SCREW PART U5: SCREW PART U6: SCREW PART V: SHIM QTY: 32 SIZE: 1/8 x 3"...
- Page 4 10' x 14' GAZEBO WALL PANEL ASSEMBLY INSTRUCTIONS: CORNER UNPACK AND CHECK ALL COMPONENTS FOR PILLARS ANY DAMAGE OR MISSING ITEMS. MOUNT OPTIONAL SPACERS ON BOTTOM OF PANELS (SEE PAGE 27 OF "ACCESSORIES AND OPTIONS"). ATTACH TWO (CAS545#) HOLD-DOWN BRACKETS TO EACH CORNER PILLAR (SEE PAGE 75 OF "ACCESSORIES AND OPTIONS").
- Page 5 FOUR SIDES OPEN: REQUIRES 4 HEADER BEAMS THREE SIDES OPEN: REQUIRES 3 OF 4 HEADER BEAMS HEADER HEADER HEADER BEAM BEAM BEAM HEADER BEAM HEADER HEADER BEAM HEADER NOTE: YOUR GAZEBO CAN USE UP BEAM BEAM TO FOUR HEADER BEAMS OVER OPEN SPACES.
- Page 6 STEP #1: STEP #2: A. LAY OUT PIECES ON A FLAT SURFACE. A. SCREW FOUR CORNER RAFTERS (A) TO SKYLIGHT FRAME (Q). B. ATTACH CORNER BRACES (D & D1) AS SHOWN. C. CONNECT SILL PLATES (C1 & C2) ON 10' SIDES. D.
- Page 7 STEP #5: STEP #6: (U4) A. SECURE RAFTERS TO SILL PLATES A. ATTACH SIX MIDDLE RAFTERS (B) TO SKYLIGHT FRAME (Q). BY SCREWING BRACKETS (T3) INTO PLACE AT EACH CORNER. (U3) (U2) TIP: VERIFY THAT WALLS TIP: DO NOT ATTACH RAFTERS ARE LEVEL AND SQUARE TO SILL PLATES UNTIL ALL ROOF (T3)
- Page 8 STEP #9: STEP #10: A. ATTACH BOTTOM OF RAFTERS (6X) TO BEAMS A. POSITION LARGE CENTER PANELS (K, L & S3/S4), THEN (C & C1) WITH BRACKETS (T3) AS SHOWN. SCREW INTO PLACE THROUGH PRE-DRILLED HOLES. B. POSITION LOWER CORNER PIECES (M & N), ALIGN LOWER EDGES, THEN SCREW INTO PLACE.
