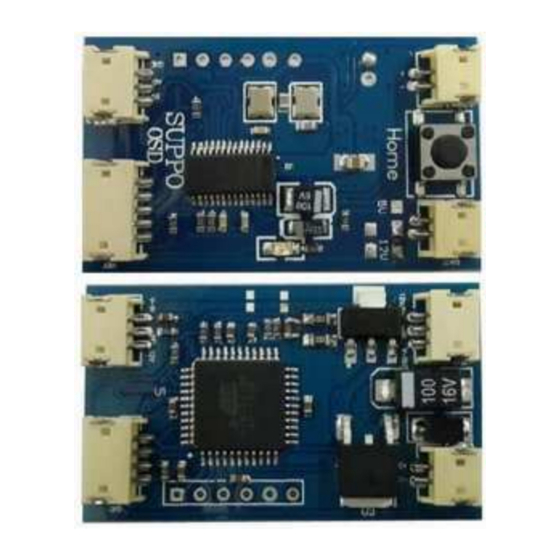

SUPPO OSD v3.51 10HZ
New feature: support distance unit in meter /km and feet/ML, speed at kmh /
mph
Config panel
Connect to
button panel
Camera
Connect to
your camera
Configuring OSD:
Press button
"Menu"
on "Config Panel" to enter system configuration
Use "Option SW" and "Select" button to configure
Connetion Pins
Connector's description
Power in
Connect to power source for your
OSD
(as Voltage 4.5V shown on left)
Video out
For the OSD video output
RSSI
Connect to your radio receiver's
RSSI port
Main Batt
Connect to your airplane's battery
(to RC plane's
pack ( monitor plane's voltage
battery)
Max 28V).
As 11.7v shown on left)
GPS
Connect to GPS unit
Advertisement
Related Manuals for SUPPO OSD v3.51
Summary of Contents for SUPPO OSD v3.51

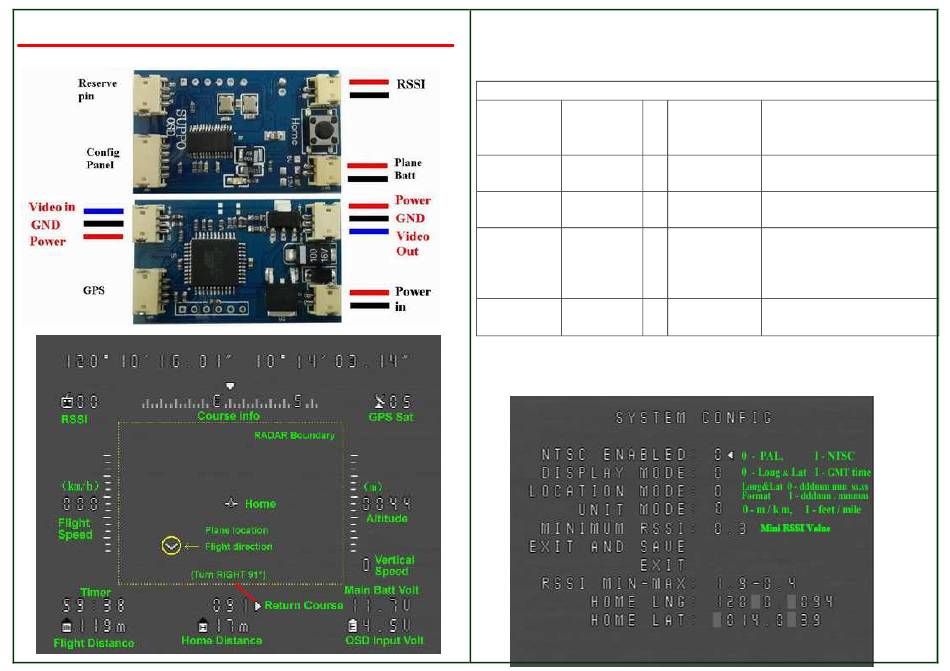

- Page 1 SUPPO OSD v3.51 10HZ Connetion Pins New feature: support distance unit in meter /km and feet/ML, speed at kmh / Connector’s description Config panel Connect to Power in Connect to power source for your button panel (as Voltage 4.5V shown on left)
- Page 2 Connect RSSI to your RC Receiver (Warning: potential dangerous, could damage your RX. not recommend to do so if you don’t well understand your Radio RX) Connect 9-12V power to Suppo V-tx to power up Suppo V-Tx, OSD and the camera. Important Notice, care fully check the power wire connect Camera, OSD and Video Tx.
- Page 3 Setting RSSI Min – Max value: On ground power up TX and RX, press “set home” button, OSD will record RSSI Max; Specifications: On ground, power off TX, press “Menu” button, OSD will record RSSI Min value. Input Volt Weight Size Select Save and Exit to save RSSI Min Max value.
