- Page 1 Jump Starter/ Power Pack OWNER’S MANUAL MODEL SL1452 PLEASE SAVE THIS OWNER’S MANUAL AND READ BEFORE EACH USE. This manual will explain how to use the unit safely and effectively. Please read and follow these instructions and precautions carefully. 0099002257E-00...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INSTRUCTIONS ............5 PERSONAL PRECAUTIONS ................. 6 PREPARING TO USE THE UNIT ..............7 FOLLOW THESE STEPS WHEN CONNECTING TO A BATTERY ....7 FEATURES ..................... 8 CHARGING THE JUMP STARTER ............... 8 OPERATING INSTRUCTIONS ..............9 MAINTENANCE INSTRUCTIONS ..............11 STORAGE INSTRUCTIONS .................11 TROUBLESHOOTING ..................11... -
Page 3: Important Safety Instructions
Jump Starter/Power Pack MODEL SL1452 OWNER’S MANUAL PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE. This manual will explain how to use the unit safely and effectively. Please read and follow these instructions and precautions carefully. 1. IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS. -
Page 4: Personal Precautions
1.12 Do not set the unit on flammable materials, such as carpeting, upholstery, paper, cardboard, etc. 1.13 Never place the unit directly above battery being jumped. 1.14 Do not use the unit to jump start a vehicle while charging the internal battery. 2. -
Page 5: Preparing To Use The Unit
3. PREPARING TO USE THE UNIT WARNING! RISK OF CONTACT WITH BATTERY ACID. BATTERY ACID IS A HIGHLY CORROSIVE SULFURIC ACID. 3.1 Make sure the area around the battery is well ventilated while the unit is in use. 3.2 Clean the battery terminals before using the jump starter. During cleaning, keep airborne corrosion from coming into contact with your eyes, nose and mouth. -
Page 6: Features

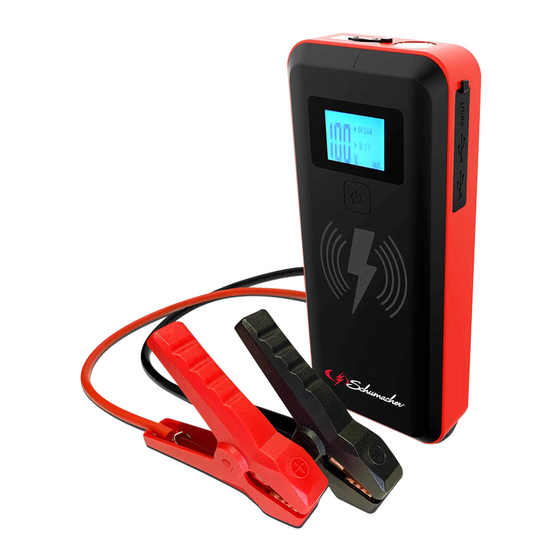

5. FEATURES 1. Display button 8. Pad for wireless charging 2. LCD display 9. Battery clamps/ 3. Jump start output socket smart cable 4. LED light Not shown: 5. 2A USB input port 10. USB charging cable for recharging 11. Carrying bag 6. -
Page 7: Operating Instructions
6.2 CHARGING THE INTERNAL BATTERY Use a 2A USB charger (not included), to quickly recharge the jump starter. 1. Plug the USB end of the charging cable into the charger port. Next, plug the USB end of the charging cable into a charger’s USB port. 2. - Page 8 NOTE: Cold weather may affect the performance of the jump starter’s lithium battery. If you hear only a click and the engine does not turn over, try the following: With the jump starter connected to the car battery and the green LED illuminated on the smart cable, turn on all lights and electrical accessories for one minute.
-
Page 9: Maintenance Instructions
7.4 USING THE LED LIGHT 1. Hold down the display button for 2 seconds. 2. Once the LED light is on, press and release the display button to cycle through the following modes: • Steady glow • Flash for an SOS signal •... -
Page 10: Specifications
PROBLEM SOLUTION When cable is connected only The vehicle battery voltage is lower than to the battery: Solid Red LED, 10.5V. User can connect to jump starter (Green LED off). and turn key to jump start the vehicle. When cable is correctly “Fake”... -
Page 11: Replacement Parts
12. REPLACEMENT PARTS Battery clamps/smart cable ..........94500901Z USB charging cable ........... 3899004188Z Learn more about automotive tools on our website.
