Giant Alarm System ESP-M1 Product Manual

product manual
Fentures
■ SOC characteristics
●
Built-in Tensilica L106
Consumption 32-bit cpu, the main frequency
Can be 80MHz and 160MHz, also support
RTOS;
●
Built-in TCP/IP protocol stack;
●
Built-in 1 channel 10-bit high precision ADC;
●
The outeide interfaces have HSPI, UART,I2C,
I2S,IR Remote Control, PWM, GPIO;
●
The deep-sleep current is about 10uA, and the
Cut-off current is smaller than 5uA;
●
Can be wake-up within 2 ms, and connect to
Transmit data package;
●
the consume power is smaller than 1.0mW
(DTIM3) when at standby status;
●
Built-in 1M byte for SPI Flash.
■ Wi-FI characteristics
●
Support 802.11 b/g/n/e/i
●
Support three modes: Station, SoftAP, and
SoftAP+STA;
●
Support Wi-Fi Direct(P2P);
●
Support hardware acceleration for CCMP
(CBC-MAC,computation mode),TKIP(MIC,
RC4), WAPI(SMS4), WEP(RC4), CRC;
●
P2P find, P2P GO mode/GC mode and P2P
Power management;
1
ESP-M1/M2
Ver V1.0
ultra-low power
Peripheral for Module
●
2*UART
●
1*En;
●
1*ADC;
●
1*wakeup pin;
●
1*HSPI;
●
1*I2C;
●
1*I2S;
●
MAX 10* GPIOs;
■
Working temperature:-40℃-125℃
■
Module size:
12.3*mm*15mm;(M1 version)
12.3*mm*20mm;(M2 version)
Application
●
Serial Transparent transmission;
●
WiFi prober;
●
Smart power piug/Smart LED light;
●
Mesh networks;
●
Sensor networks;
●
Wearable electronics;
●
Securit ID label;
●
Wireless location recognition;
●
Wireless location system beacon;
●
Industrial wireless control;

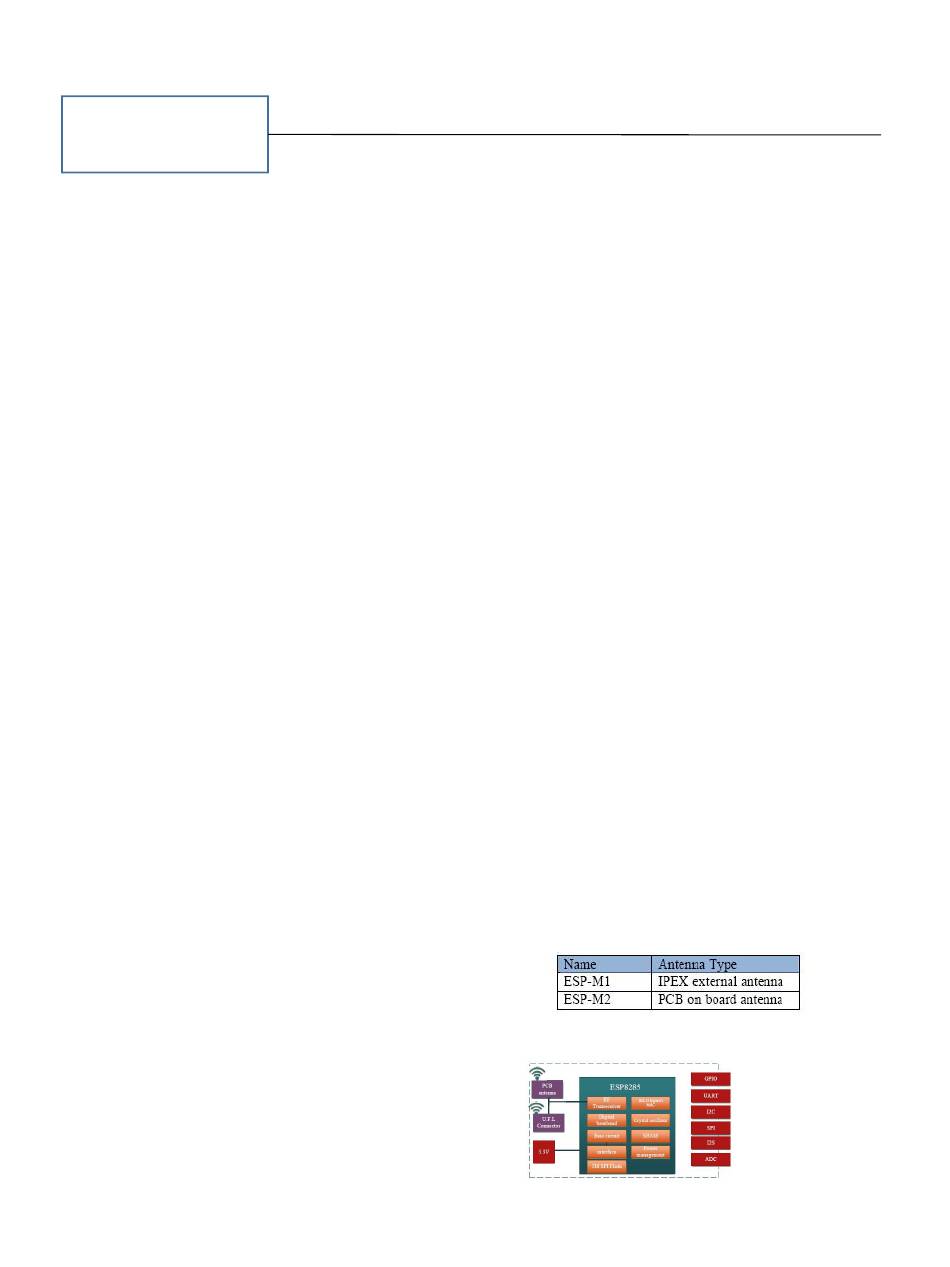

Module Type
Module Structure
