Giant Alarm System JJ-RC-SM24-LT Quick Start Manual

Manual of JJ-RC-SM24-LT

Description:

 Frequency: 310mhz、315mhz、318mhz、372mhz、390mhz etc.
 Working current: 13ma±2ma
Operation：

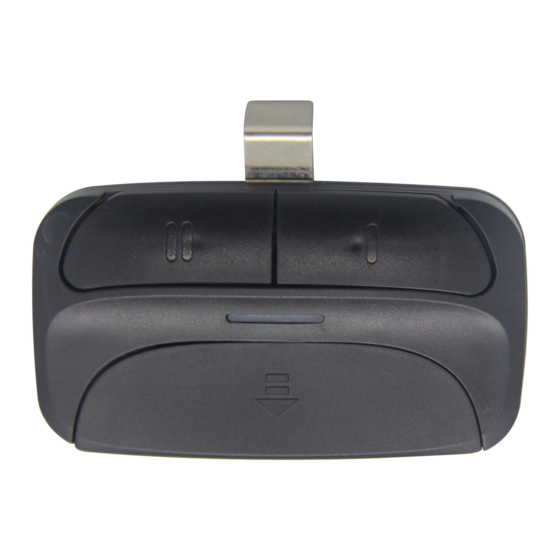

 Open the sliding cover, you will see the program button and Dip Switch.

How to select the brand?

 Press the program button, release the button until LED lights.
 Select a button to program. According follows table to select brand.
 Press button__ times ensuring LED stops flashing after each press. Then
press another button to confirm.
 LED flashes, select brand is successfully.
NOTE: Button 1 and Button 2 is independly. It can select different brand
and frequency.
#of times to
press button
1 Linear
2 Chamberlain
3 Chamberlain
4 Chamberlain
5 Genie
6 Genie
7 Stanley
8 Liftmaster
9 Wayne Dalton
10 Chamberlain
11 Chamberlain
12 Genie
Brand
Mega code
Orange
Purple
Green
Overhead door Intelli code
Overhead door Intelli code
Secure Code
Frequency hopping
to avoid Frequency
interference
Rolling code
9 Position
9 Position
12
Type/Color of Smart/Learn
Position
Frequency
318M
390M
315M
390M
315M
390M
310M
310/315/390
372.5M
390M
315M
390M
