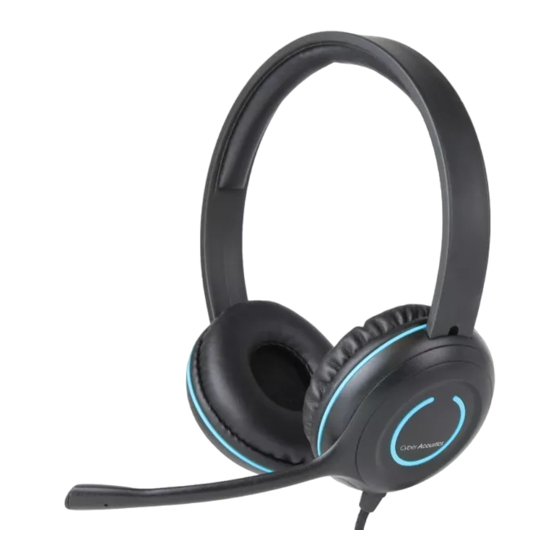

Cyber Acoustics AC-5008 Quick Start Manual

Cyber Acoustics AC-5008 Quick Start Manual

Usb headset

Advertisement

Quick Links

Do Not Throw Away
Quick Start Guide
AC-5008
USB Headset
In-line volume & mute control
Refer to the Frequently Asked
Questions on pages 5 & 6 if there
are problems with the headset
functioning properly
www.CyberAcoustics.com
CA P/N: AC-5008 Rev. A00
2022-03

Advertisement

loading
Need help?

Need help?

Do you have a question about the AC-5008 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cyber Acoustics AC-5008

  • Page 1 Do Not Throw Away Quick Start Guide AC-5008 USB Headset In-line volume & mute control Refer to the Frequently Asked Questions on pages 5 & 6 if there are problems with the headset functioning properly CA P/N: AC-5008 Rev. A00 www.CyberAcoustics.com 2022-03...
  • Page 2 In the Package Quick Start Guide AC-5008 USB Headset In-line volume & mute control CA P/N: AC-5008 Rev. A00 www.CyberAcoustics.com 2022-03 Quick-Start Guide Headset with USB Type A plug In-line volume & mute control AC-5008 USB Headset In-line volume & mute control...
  • Page 3: Table Of Contents

    Table of Contents Pages Using the AC-5008 USB Headset Getting Started Controls Technical Specifications Frequently Asked Questions 5, 6 Customer Support Safety and Precautions Compliance Information...
  • Page 4: Using The Ac-5008 Usb Headset

    Using the AC-5008 USB Headset Best for Use In Music Skype, Zoom & Other Internet Calls Plug and Play Page 1...
  • Page 5: Getting Started

    Getting Started Insert the end of the USB Headset Cable into the USB Type A port on your computer as shown. The Headset features full plug and play support for Windows, MacOS & Chromebooks. After plugging the headset into the computer’s USB Type A port, you may start any application that accepts a headset, such as Skype and begin using your headset.
  • Page 6: Controls

    Controls Mic On / Off Volume up / down - If the microphone is not functioning properly, check to make sure the Mic Mute shown above is selected to the On position. - If there is no sound from the headphones, check to make sure the volume is turned up with the volume adjustment shown above and the volume setting on your computer is also turned up.
  • Page 7: Technical Specifications

    Technical Specifications Specifications Sensitivity: • -62dBV / microbar • -42dBV / Pascal +/- 4dB • Headset: 20 - 20,000Hz Frequency response • Microphone: 100 - 16,000Hz • Headset: 32 ohms Impedance • Microphone: 2.2k ohms Recommended system requirements Supported operating systems Windows 10, Windows 8, Windows 7, Mac OS X 10.4.11, or higher.
  • Page 8: Frequently Asked Questions

    • Double click on “Sound”, then click on the “Playback” tab. • Select “AC-5008 USB Headset” then click Set Default. • Verify green circle with a check mark next to “AC-5008 USB Headset”. • Double click on “Sound”, then click on the “Recording” tab.
  • Page 9 Frequently Asked Questions Frequently Asked Ques�ons Possible Solu�ons Headset does not have sound / Microphone is not working • Check the computer’s and headset’s volume level. • Make sure the headset USB cable is plugged in all the way to your computer. •...
  • Page 10: Customer Support

    Customer Support If you have a question about your Headset, our Customer Support Team wants to assist you. Contact us at: www.cyberacoustics.com/support/contact We are dedicated to your success with our products. Page 7...
  • Page 11: Safety And Precautions

    - Do not expose to excessive heat (e.g. from storage in direct sunlight, fire or the like) 2022 Cyber Acoustics or its subsidiaries. All rights reserved. Cyber Acoustics and other trademarks are trademarks of Cyber Acoustics or its subsidiaries. Other trademarks may be trademarks of their respective owners.
  • Page 12: Compliance Information

    Unique Identifier: (AC-5008) Responsible Party - Cyber Acoustics LLC 3109 NE 109th Ave., Vancouver, WA 98682 cyberacoustics.com Compliance Information Statement: FCC Part 15 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
