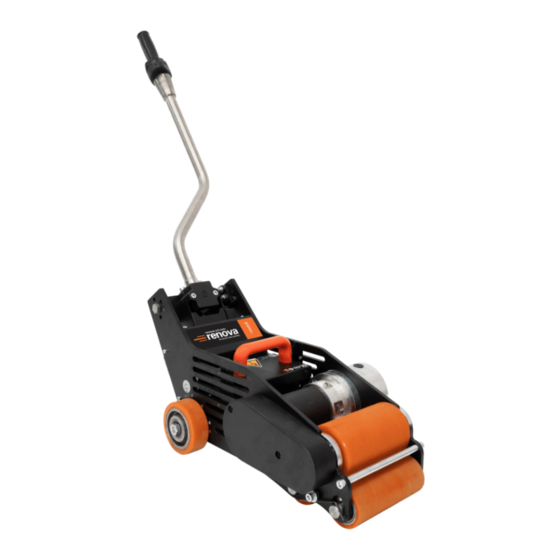

Renova moviroll MRE 100 L Operating Instructions Manual

Battery roll pusher
Hide thumbs
Table of Contents

Advertisement

Quick Links

operating instructions
Renova srl – viale Rimembranze 93 – 20099 Sesto San Giovanni - Italy – tel: +39.02.2700.7394 – fax: +39.02.2570.8635
www.renova-srl.com – email: support@renova-srl.com
MRE
100 L |
MRE
MRE
200 L |
MRE
MRE
300 L |
MRE
MRE
500 L
|---------------------------...--.......
battery roll pusher
100 LP |
MRE
200 LP |
MRE
300 LP |
MRE
100 LPT
200 LPT
300 LPT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the moviroll MRE 100 L and is the answer not in the manual?

Questions and answers

Related Manuals for Renova moviroll MRE 100 L

Summary of Contents for Renova moviroll MRE 100 L

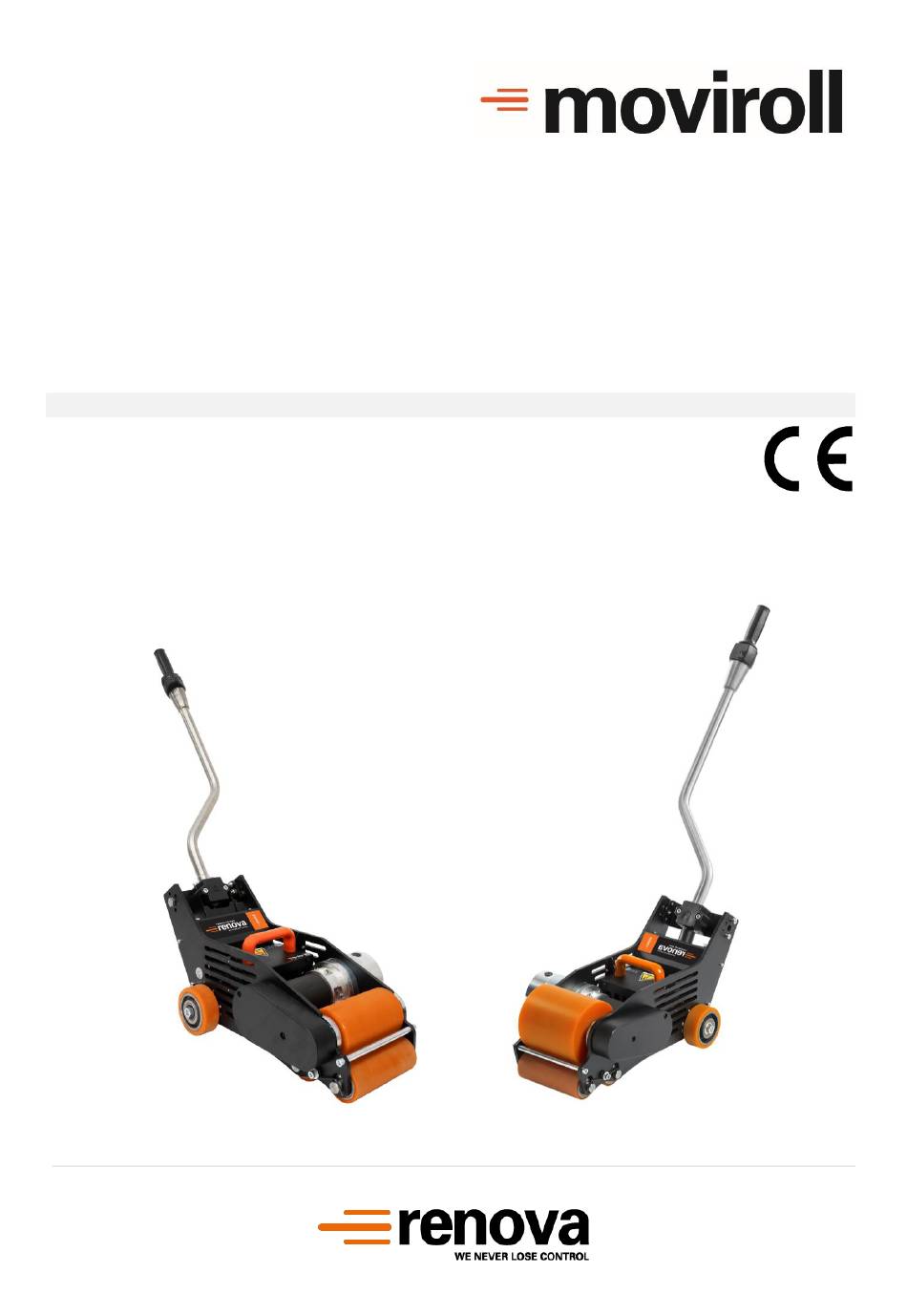

  • Page 1 200 LP | 200 LPT 300 L | 300 LP | 300 LPT 500 L |---------------------------...--……. operating instructions Renova srl – viale Rimembranze 93 – 20099 Sesto San Giovanni - Italy – tel: +39.02.2700.7394 – fax: +39.02.2570.8635 www.renova-srl.com – email: support@renova-srl.com...
  • Page 2 This product complies with the Directive 2006/42/CE © Copyright Renova Srl, 2013. All rights reserved. MANMRELENA4V0421...

  • Page 3: Table Of Contents

    index introduction ………………………………………………………..……..……………….…….…… page 4 warning ….………………………………………………….….………………….…….……………… page 4 general warnings ………………………………………………..……….…………………..…… page 4 assistance ………………………………………………………………………………………………… page 5 general instructions …………………………………………………………….………….……… page 5 initial content of the box………………………………………………………….… page 5 content description ……………………………………………………………………. page 5 packaging …………………………………………………………………………….….… page 6 serial number ..…………………………….……..………………..…………………… page 6 instructions for use ………………………………………………………………….……….……..

  • Page 4: Introduction

    Dear customer, Thank you for purchasing Renova’s MRE L / MRE LP / MRE LPT moviroll – battery roll pusher. We also thank you for the preference you have reserved for this innovative product. We are certain it will satisfy you with its technologically advanced solutions, its in-line and elegant design and its professional quality.

  • Page 5: Assistance

    Renova is worldwide present with Agents and Distributors. Contact Renova support support@renova-srl.com general instructions INITIAL CONTENT OF THE BOX MRE L / MRE LP / MRE LPT moviroll x2 (optional) batteries battery charger shipment kit CONTENT DESCRIPTION MOVIROLL - In the box you can find the moviroll model as previously ordered: MRE L / MRE LP / MRE LPT BATTERIES - MRE L / MRE LP / MRE LPT moviroll (all models) is provided with a second battery (optional).

  • Page 6: Serial Number

    Please do not throw away the wood packaging of your moviroll as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to Renova srl. SERIAL NUMBER Each moviroll is provided with its serial number.

  • Page 7: Battery Status

    The battery status LEDs (see the picture at page 10): GREEN LED charged battery YELLOW LED 50% battery charge (when active) RED LED discharged battery ATTENTION! Use the moviroll only when GREEN and YELLOW LEDs. Do not use the moviroll with RED battery status LED to avoid any irreparably damage to the electronic unit and the battery.

  • Page 8: Malfunctions Diagnosis

    Turn off/on with throttle in zero position (backward gear) Battery tension too low Charge the battery Battery tension too high Use another battery and contact Renova Throttle not at position zero at start Turn off/on with throttle in zero position Broken throttle (potentiometer) Replace the throttle...

  • Page 9: Components Descriptions And Codes

    components descriptions and codes MRE 100 L / MRE 200 L / MRE 300 L...
  • Page 10 POSITION CODES – FOR MODELS MRE L DESCRIPTION MRE 100 L MRE 200 L MRE 300 L C10-0012 C10-0012 C10-0012 Double chain C30-0004 C30-0004 C30-0004 Ball bearing C30-0008 C30-0008 C30-0008 Ball bearing D10-0001 D10-0001 D10-0001 D14-0002 D14-0002 D14-0002 D16-0001 D16-0001 D16-0001 E50-0015 E50-0015...
  • Page 11 MRE 500 L POSITION CODES – FOR MODEL MRE 500 L DESCRIPTION A70-0024 Seeger C10-0021 Triple chain C30-0035 Bearing for flange C30-0008 Ball bearing D10-0001 D14-0001 Wheels nut D16-0001 E50-0014 Connector I30-0017 Triple sprocket I30-0028 Triple sprocket M65-0032 Gear motor MREP0016 Rear wheels axis MREP0098...
  • Page 12 MREP0023 MREP0027 Spring MREP0035 Fixed battery centering holder MREP0061 Bottom battery holder MREP0063 Electronic unit front cover MREP0070 Fixed battery centering guide MREP0077 Fixed battery holder MREP0091 Tilting handle pivot MREP0393 Open flange for roller drive MREP0168 Electronic unit back cover MREP0392 Roller drive MREP0390...
  • Page 13 MRE 100 LP / MRE 200 LP / MRE 300 LP POSITION CODES – FOR MODELS MRE LP DESCRIPTION MRE100 LP MRE200 LP MRE300 LP C10-0012 C10-0012 C10-0012 Double chain C30-0004 C30-0004 C30-0004 Bearing flange C30-0008 C30-0008 C30-0008 Bearing for rubber roller D10-0001 D10-0001 D10-0001...
  • Page 14 MREP0104 MREP0104 MREP0104 Cover for motor wires MREP0145 MREP0145 MREP0145 Open flange for roller drive MREP0187 MREP0187 MREP0187 Electronic unit holder for ON/OFF switch MREP0206 MREP0206 MREP0206 Right frame (gearbox side) MREP0207 MREP0207 MREP0207 Left frame (motor side) MVRP0020 MVRP0020 MVRP0020 Spring holder MVRP0024...
  • Page 15 POSITION CODES – FOR MODELS MRE LPT DESCRIPTION MRE100 LPT MRE200 LPT MRE300 LPT C10-0020 C10-0020 C10-0020 Double chain C30-0004 C30-0004 C30-0004 Bearing for flange C30-0008 C30-0008 C30-0008 Bearing for rubber roller D14-0002 D14-0002 D14-0002 Nut for wheels E50-0001 E50-0001 E50-0001 Connector I30-0001...
  • Page 16 MREK0029 handle MREK0016 handle KITBATTC 24 V battery for MRE L models KITBATTLP 24 V battery for MRE LP and MRE LPT models KITCHRC charger 220V 50-60 Hz KITCHRUSAC charger US 110V 50-60 Hz SPARE PARTS REQUEST Please always communicate the serial number of your moviroll when requiring spare parts together with the code of the spare parts needed.

  • Page 17: Instructions For A Proper Use

    instructions for a proper use moviroll uses the power of a gear motor, which generates the capability of moving small or big loads through a pyramidal transmission with rollers. The power transmission from the motor to the rollers begins when moviroll is touching the roll/load. The rollers on the ground allow the movement of the load in a continuous and regular way and the overcoming of small obstacles.
  • Page 21 NOTES...
  • Page 22 NOTES...
  • Page 23 NOTES...
  • Page 24 Renova srl – viale Rimembranze 93 – 20099 Sesto San Giovanni - Italy – tel: +39.02.2700.7394 – fax: +39.02.2570.8635 www.renova-srl.com – email: support@renova-srl.com...
