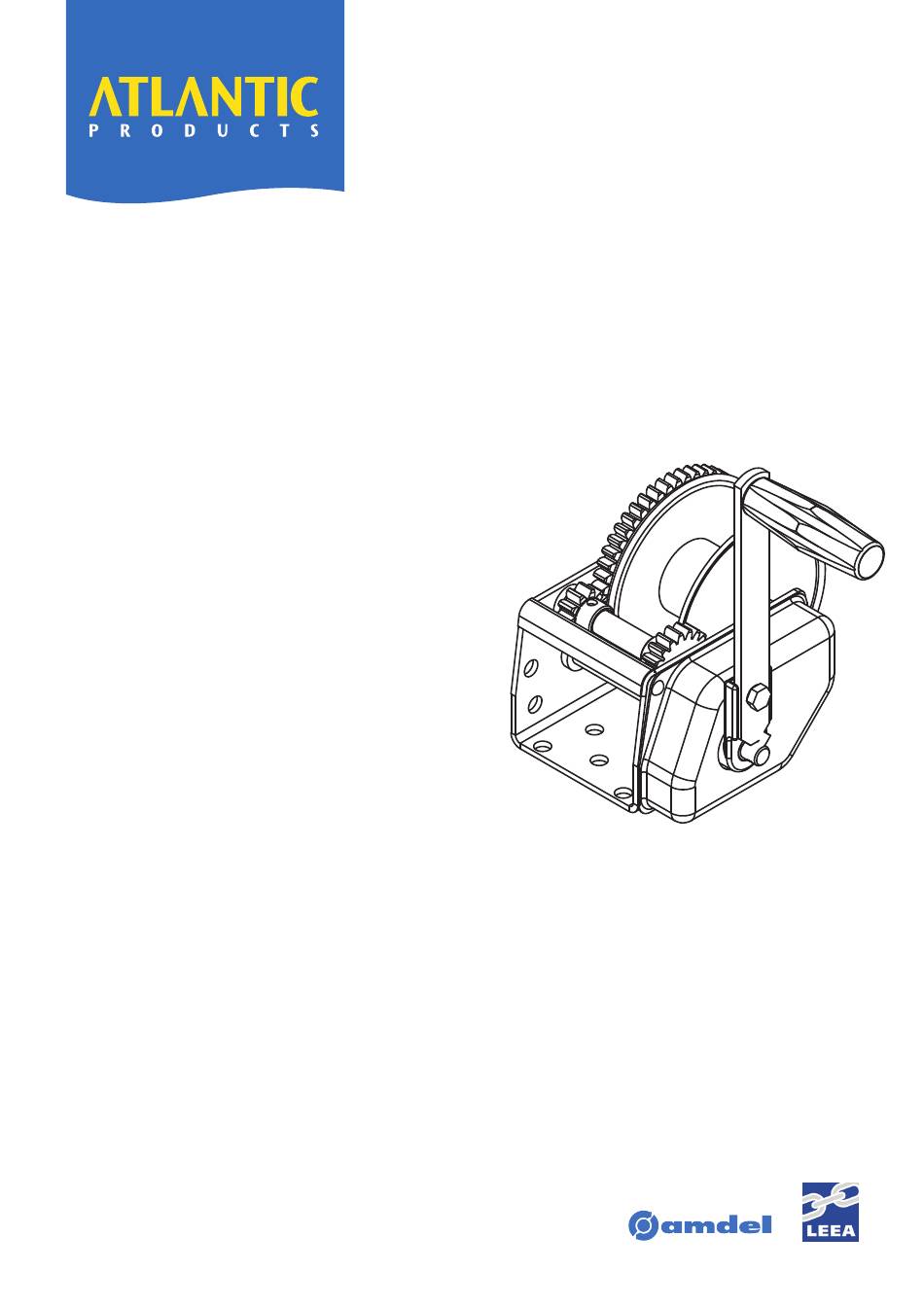

- Page 1 BW230C BW240NC BW260C BW280NC BW290C Compact Brake Winch Series Installation instructions and operating manual for Atlantic Compact Brake Winches. PLEASE READ CAREFULLY BEFORE OPERATING THE WINCH...
- Page 2 Winch Dimensions Bolt-down Specifications...
- Page 3 Brake Winch Spare Parts Listing BW52C (BW230/40/60/80) BR52K (BW210/20) SAMPLE 31A (BW210/20/30/40) 10111B (BW260/80) BR51F (BW210/20/30/40) - (Pre-Pack) 10111G (BW260/80) - (Pre-Pack)
- Page 4 Important Safety Information Installation of the Winch DO THE FOLLOWING: DO NOT DO THE FOLLOWING: GENERAL THEORY OF OPERATION ATTACHING THE HANDLE INSTALLING WIRE CABLE / ROPE Instruction for securing a cable to a winch • Read carefully and comply with the •...
- Page 5 Preparation for Operation Inspections Operations of the Brake Winch including non-technical periodic inspections, Technical inspections of the Brake Winch from pre-operational to periodic maintenance requirements and adhering to the safety considerations outlined in inspections including major repairs (lubricants, torque specifications) are to be this instruction manual are to be performed by a qualified driver.
-
Page 6: Troubleshooting Guide
Inspections (continued) Troubleshooting Guide Problem Possible Cause(s) Corrective Action Handle turns, drum doesn’t turn • Loose or broken pins • Inspect winch, repair as necessary • Loose, stripped or broken gears • inspect gears and repair as necessary Handle turns hard or not at all •... - Page 7 A N O T H E R Q U A L I T Y A T L A N T I C P R O D U C T www.atlanticproducts.com.au All documentation meet AS1418.1 and AS1418.2. Last updated Aug 2021...
