security
Made in Italy
BT2014/35/UE
EMC2014/30/UE
FEATURES
Dual element digital sensor: 1
Microwave sensor: 24,125GHz
High immunity: 30Vm
Nominal supply voltage: 12V±10%
Maximum absorption: 30mA
Coverage: 6mt
Coverage angle: L: 50°; V: 10°
Signaling LED: escludible
Degree of security: 1
Environmental class: 2
Dimensions (L): 100mm
Dimensions (H): 21mm
Dimensions (P): 31mm
The volumetric detector is equipped with a circuitry made in SMT technology to ensure greater stability
during use and greater immunity to electromagnetic disturbances.
The sensitivity adjustment allows it to be installed on doors and windows up to a maximum size of 6mt.
The "Alarm Memory" function, which allows you to check whether the sensor has gone into alarm
during an arming period, is activated and reset by connecting to the "+12 int" terminal of our burglar
alarm units.
Lead free
Pb

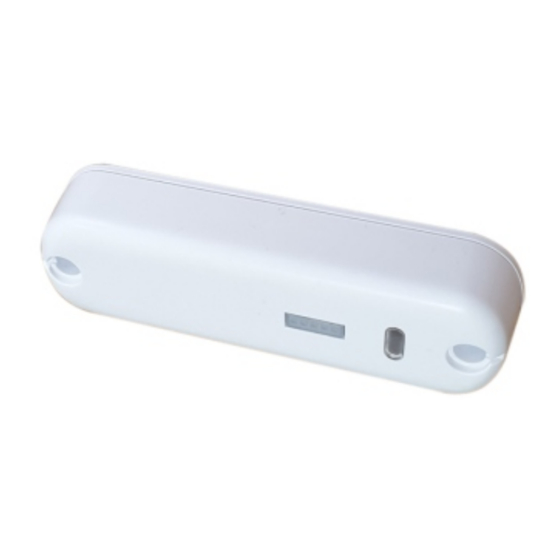

"ATEND" mini detector with double technology curtain for doors and windows
RoHS
compliant

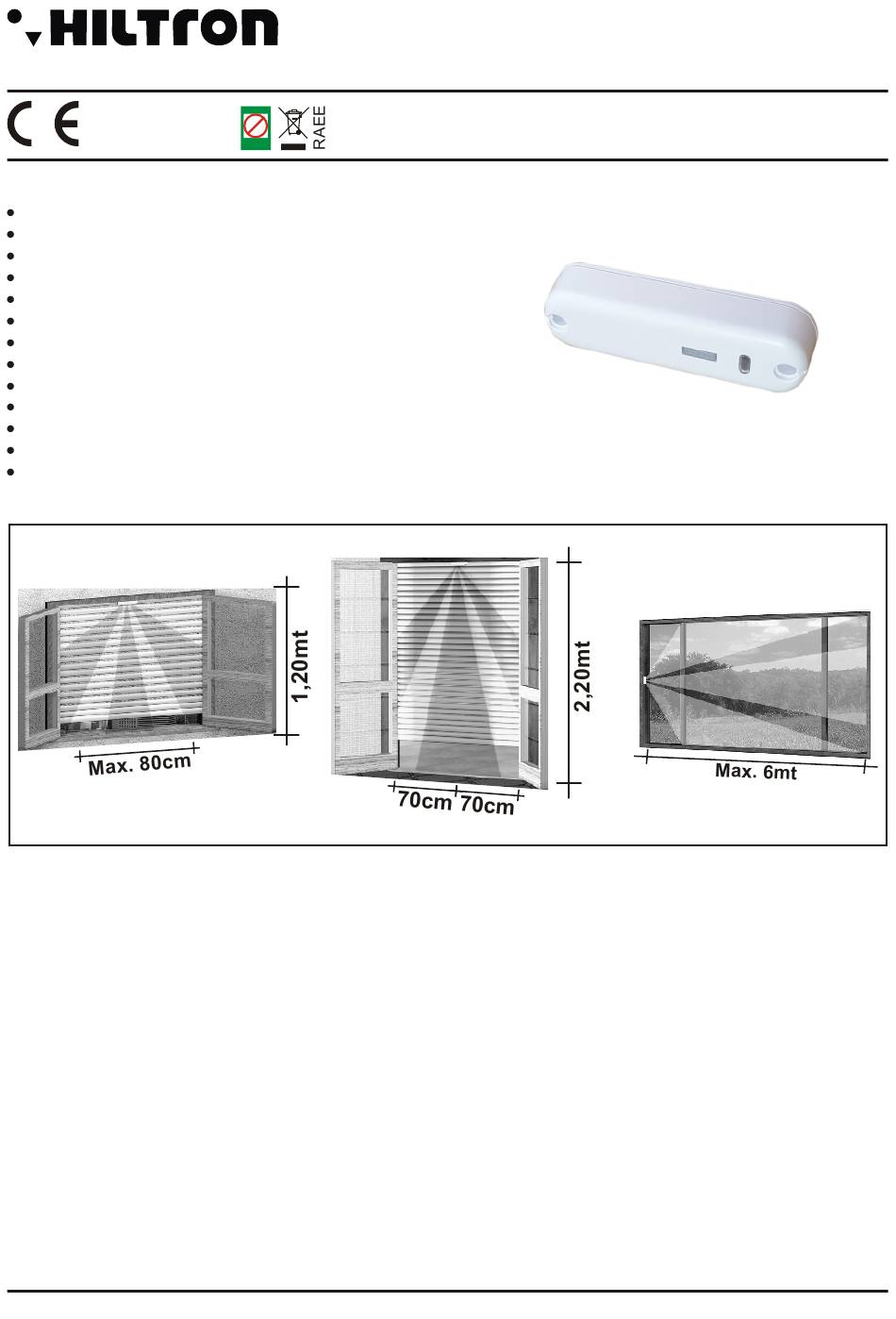

RECOMMENDED INSTALLATION
DT7 ATEND
1
Advertisement
Table of Contents
Related Manuals for Hiltron security DT7 ATEND
Summary of Contents for Hiltron security DT7 ATEND
- Page 1 DT7 ATEND security Made in Italy Lead free BT2014/35/UE “ATEND” mini detector with double technology curtain for doors and windows EMC2014/30/UE RoHS compliant FEATURES Dual element digital sensor: 1 Microwave sensor: 24,125GHz High immunity: 30Vm Nominal supply voltage: 12V±10% Maximum absorption: 30mA Coverage: 6mt Coverage angle: L: 50°;...
- Page 2 DT7 ATEND - Installation security INSTALLATION Install inside the frame and mount it at the top center of the frame (see figure), with the lens facing down. Secure the sensor base with two plugs, or use the double-sided adhesive strip supplied.
- Page 3 DT7 ATEND - Operating security OPERATING The detector works in "dual technology"; this means that only if both technologies are alarmed (typical AND operation) is a real intrusion detected and the alarm is given with the opening of the NC contacts.
- Page 4 DT7 ATEND - Operating security PULSE COUNTERI If the number of pulses is programmed to one, the detector immediately activates the output as well (opening of the NC contacts) and signals the detection to the burglar-alarm central unit. If the number of programmed pulses is greater than one, the red LED signals each detection with a flash and then remains off for about two seconds.
