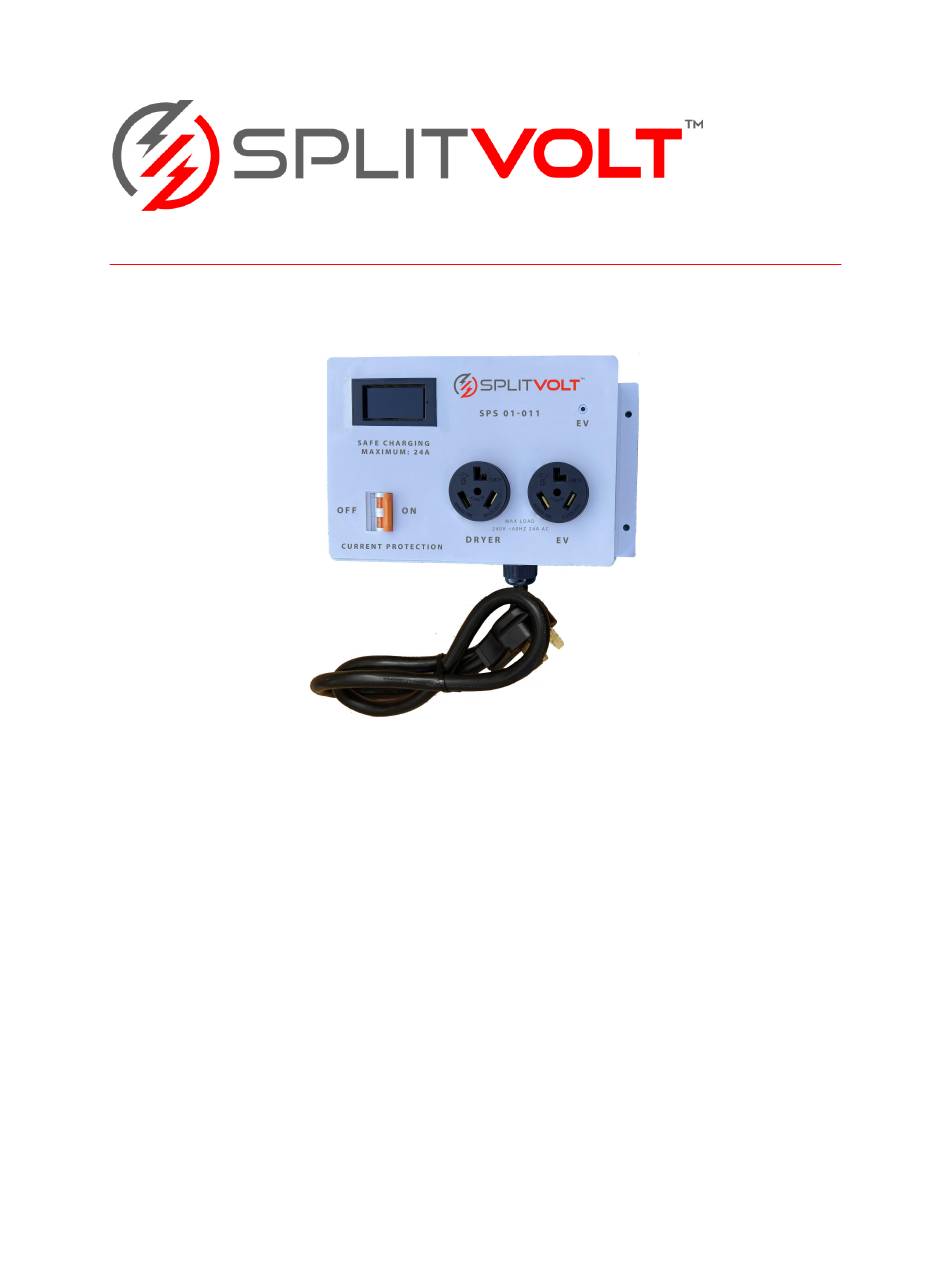

Splitvolt™ Splitter Switch™
QuickStart User Guide
Models: SPS 01-011, SPS 02-022, SPS 01-031, SPS 02-032
Please note that this User Guide applies only to the model numbers listed above.
Thank you for choosing the Splitvolt™ Splitter Switch™! Charging your electric vehicle (EV)
just got easier!
The Splitter Switch allows you to share your existing 240V dryer circuit safely and
automatically with your dryer and EV charger to get Level 2, fast home charging, but avoiding
the high cost and complexity of having an electrician install a new, dedicated 240V charging
circuit.
The Splitter Switch switches full power between your EV charger and clothes
dryer—automatically provides power for EV charging any time the dryer is not running.
This new category of product can save you thousands of dollars and weeks of time. Just plug
it in, and Splitvolt monitors, displays, and switches full 24-amp power on-demand between
Copyright © 2022 Splitvolt, Inc. All rights reserved.
Advertisement
Table of Contents
Related Manuals for Splitvolt SPS 01-011
Summary of Contents for Splitvolt SPS 01-011
- Page 1 Models: SPS 01-011, SPS 02-022, SPS 01-031, SPS 02-032 Please note that this User Guide applies only to the model numbers listed above. Thank you for choosing the Splitvolt™ Splitter Switch™! Charging your electric vehicle (EV) just got easier! The Splitter Switch allows you to share your existing 240V dryer circuit safely and...
-
Page 2: Contact Information
Please read this manual before use. Contact Information Splitvolt, Inc. www.splitvolt.com Santa Clara, California www.splitvolt.com/help Splitvolt Splitter Switch QuickStart User Guide Models covered in this guide Model Wall Plug Pigtail Dryer Socket EV Socket... -
Page 3: Features And Capabilities
The NEMA 14-50 plug is for convenient access to common charger plugs; the maximum safe charging rate on the socket is 24 amps ● Integrated wall-mount screw holes and 3.3 ft (1 m) pigtail plug for easy installation Splitvolt, Inc. -
Page 4: Specifications
Get to know your Splitvolt Splitter Switch ● Automatic safety circuit breaker ● 3-line color LCD real-time power display ● Displays real-time watts, amps, volts, and accumulated kWh ● Optional manual power-off switch ● Resettable accumulated kWh — use a pen to press and hold the flat reset button on the right side of the screen for 5 seconds ●... -
Page 5: Quick Start
3. Plug the EV charger into the right outlet labeled “EV” of the SPS 4. If using NEMA 14-50, restrict amps to 24 amps on either your EV charger or vehicle 5. Switch the circuit breaker to the ON position Splitvolt, Inc. -
Page 6: Optional Wall Mount
If an electrical supply line, connectors, or other circuit elements are worn or damaged, do not use and consult a qualified electrician. The Splitvolt Splitter Switch is intended only for use with electrical circuits and wiring that is in good condition and meets local building safety codes. -
Page 7: Troubleshooting
These warranties are valid only in the United States. In no event shall Splitvolt, Inc. be liable for any direct, indirect, incidental, special, consequential, or multiple damages arising out of the use or misuse of the Splitvolt Splitter Switch devices. -
Page 8: Need More Help
Verify that your EV or EV charger is only charging at 24 amps. If it is keeps tripping off not, set it to charge at only 24 amps or less. If you are unable to change this setting, or/and the internal breaker keeps tripping, please contact us at www.splitvolt.com/help. Need more help? Please visit www.splitvolt.com/help for information and assistance.
