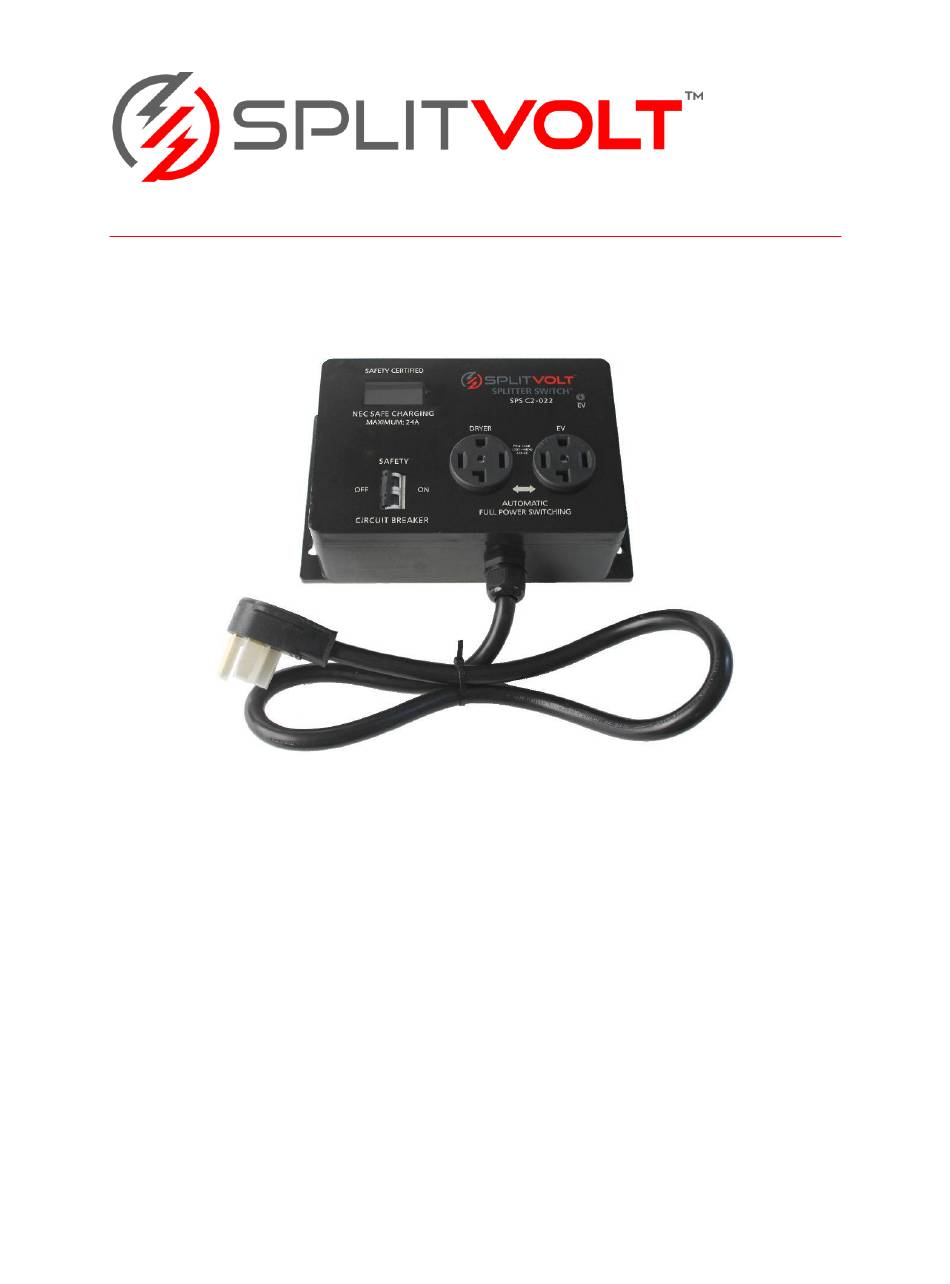

Splitvolt™ Splitter Switch™
QuickStart User Guide
Applies only to Splitter Switch Models: SPS C1-011, SPS C2-022, SPS C2-032
Please note that this User Guide applies only to the model numbers listed above.
Thank you for choosing the Splitvolt™ Splitter Switch™! Charging your electric vehicle (EV)
just got easier!
The Splitter Switch allows you to share your existing 240V dryer circuit safely and
automatically with your dryer and EV charger to get Level 2, fast home charging, but avoiding
the high cost and complexity of having an electrician install a new, dedicated 240V charging
circuit.
The Splitter Switch switches full power between your EV charger and clothes
dryer—automatically provides power for EV charging any time the dryer is not running.
