Electronic command system for marine engines (69 pages)
Summary of Contents for Flexball 4500 CPP

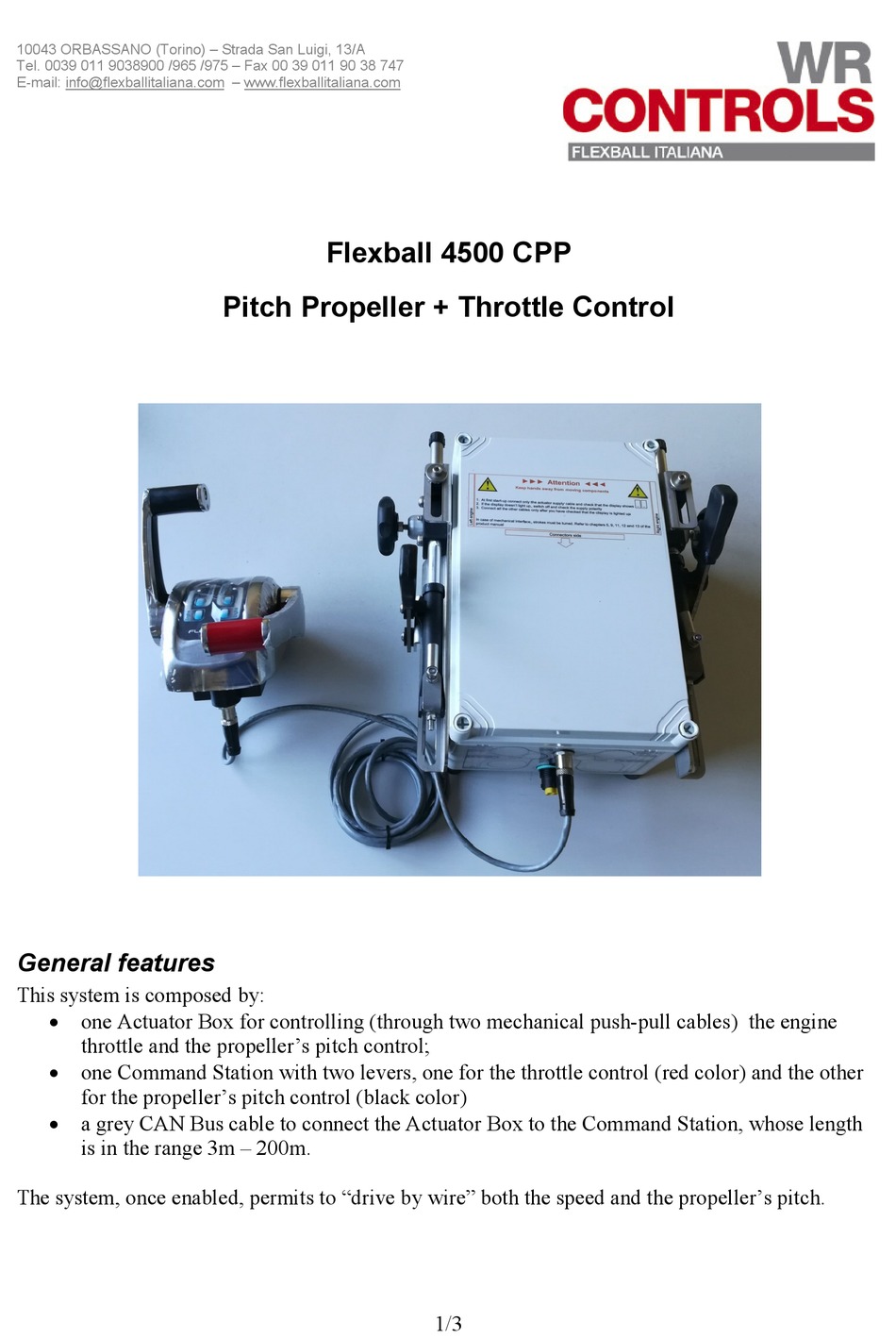

Page 1
10043 ORBASSANO (Torino) – Strada San Luigi, 13/A Tel. 0039 011 9038900 /965 /975 – Fax 00 39 011 90 38 747 E-mail: info@flexballitaliana.com – www.flexballitaliana.com Flexball 4500 CPP Pitch Propeller + Throttle Control General features This system is composed by: ...
Page 2
Installation To have general information about installation of the Flexball 4500 Electronic System please refer to “Operating manual & mounting instructions” supplied together with the system. Here we report only the peculiar features of the Flexball 4500 CPP system. Propeller’s Pitch control...
Page 3

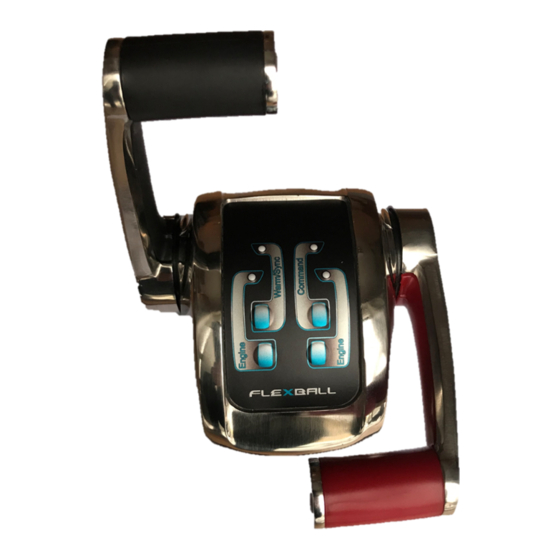

Pilot instructions Once you have connected all the cables and powered up the system, the Command Station will do an “all leds” flash and - after that - only the two green leds will stay on. Now: 1. move the left lever to its central (detent) and the throttle lever to its minimum; 2.
