ATTENTION:
This fan kit should be installed by a qualified installer
DO NOT install this blower in fireplaces that are "Clean Face", making the lower louver area
inaccessible after installation.
All wiring must comply with local ordinances and the National Electrical Code.
WARNING:
Prior to installing the blower, ensure all power to the fireplace is disconnected and that the breaker
is shut off.
The internal blower kit will increase the circulation of heated air in the room where the fireplace is installed.
If you desire to distribute the heat in different rooms, please refer to central heating and zone heating kits (FO-
FDHB6-1, FO-FDHC6, FO-FDHCZ1 and FO-FDHCZ2).

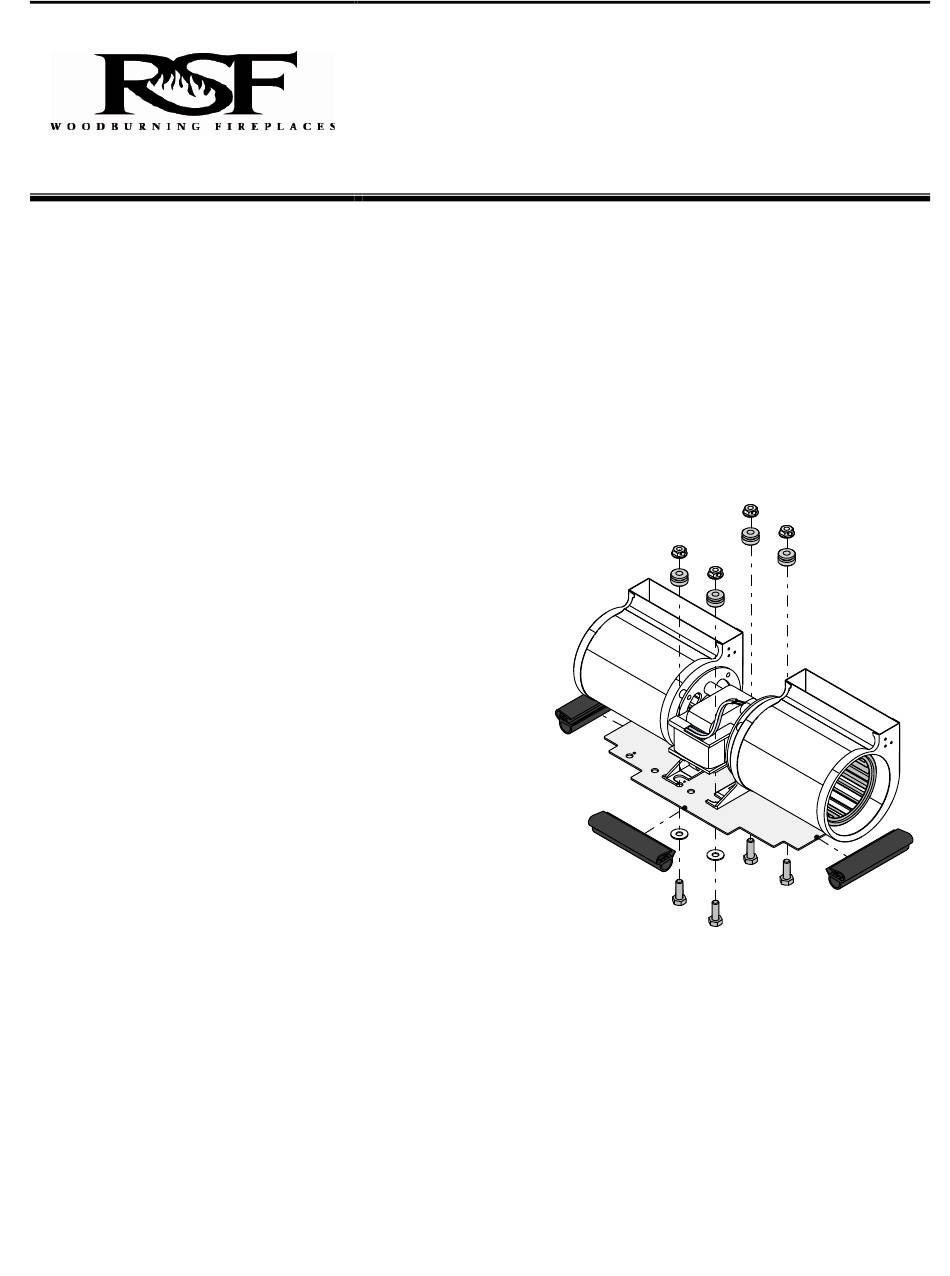

This blower kit includes:
Blower Assembly
•
•
Thermal Switch Assembly
Variable Speed Switch
•
•
Wiring
Instructions
•
Powering the blower:
Electrician Required
Power must be brought to the fireplace for the blower to
operate.
OPTION 1: THREE PRONG PLUG INSTALLATION
The three-prong plug setup is best for new installations
where the internal blower is the only option that will require
electricity.
1. An electrical junction box with a three-prong plug outlet
should be installed in the bottom of the fireplace by a certified electrician in an accessible location.
2. Ensure no wires contact the firebox.
OPTION 2: TERMINAL BLOCK INSTALLATION
The terminal block setup is best for replacing existing blowers that are already wired through the terminal block or
for systems that will utilize the terminal block to power multiple options. For example, systems combining the
Internal Blower with Central Heating Blower (FO-FDHB6-1) and Central Heating Control (FO-FDHC6). There is no
terminal block in the Pearl 3600 or Focus 3600 fireplaces.
1. Have a certified electrician connect terminals 5 and 6 of the terminal block to a 120V circuit with 14/2 wiring.
Do not forget to attach the ground wire to the fireplace ground screw which is next to the terminal block.
2. Ensure no wires contact the firebox.
FO-HB9
Internal Blower
.
FO-HB9-2022-02
Advertisement
Table of Contents
Related Manuals for RSF Woodburning Fireplaces FO-HB9
Summary of Contents for RSF Woodburning Fireplaces FO-HB9
- Page 1 FO-HB9 Internal Blower ATTENTION: This fan kit should be installed by a qualified installer DO NOT install this blower in fireplaces that are “Clean Face”, making the lower louver area inaccessible after installation. All wiring must comply with local ordinances and the National Electrical Code.
- Page 2 Pass the blower through the bottom louver opening and push the blower to the back of the fireplace. Center the mounting plate between the two brackets and face the air outlet upwards. See below. Terminal block Thermal switch Internal Blower Floor heat shield FO-HB9-2022-02...
- Page 3 Remove the vibration rubber dampers from the mounting plate and reinstall them on the blower openings (right). Install the blower inside the lower louver opening with the blower outlet facing the rear of the fireplace. Center the blower in the middle of the fireplace, with the blower outlet facing the back of the unit. FO-HB9-2022-02...
- Page 4 Space the switch 1/8” from the fireplace bottom, the magnet will hold the thermal switch in place. If the fireplace is equipped with an ash pan, make sure that it is still possible to remove the ash pan once the thermal switch is installed. Wiring for three-prong plug installation Connect the wiring as shown below. FO-HB9-2022-02...
- Page 5 Wiring for terminal block installation Connect the wiring as shown below. 120V from break er Ground FO-HB9-2022-02...
