Infinity FS-ITM Installation Manual page 2

Included –

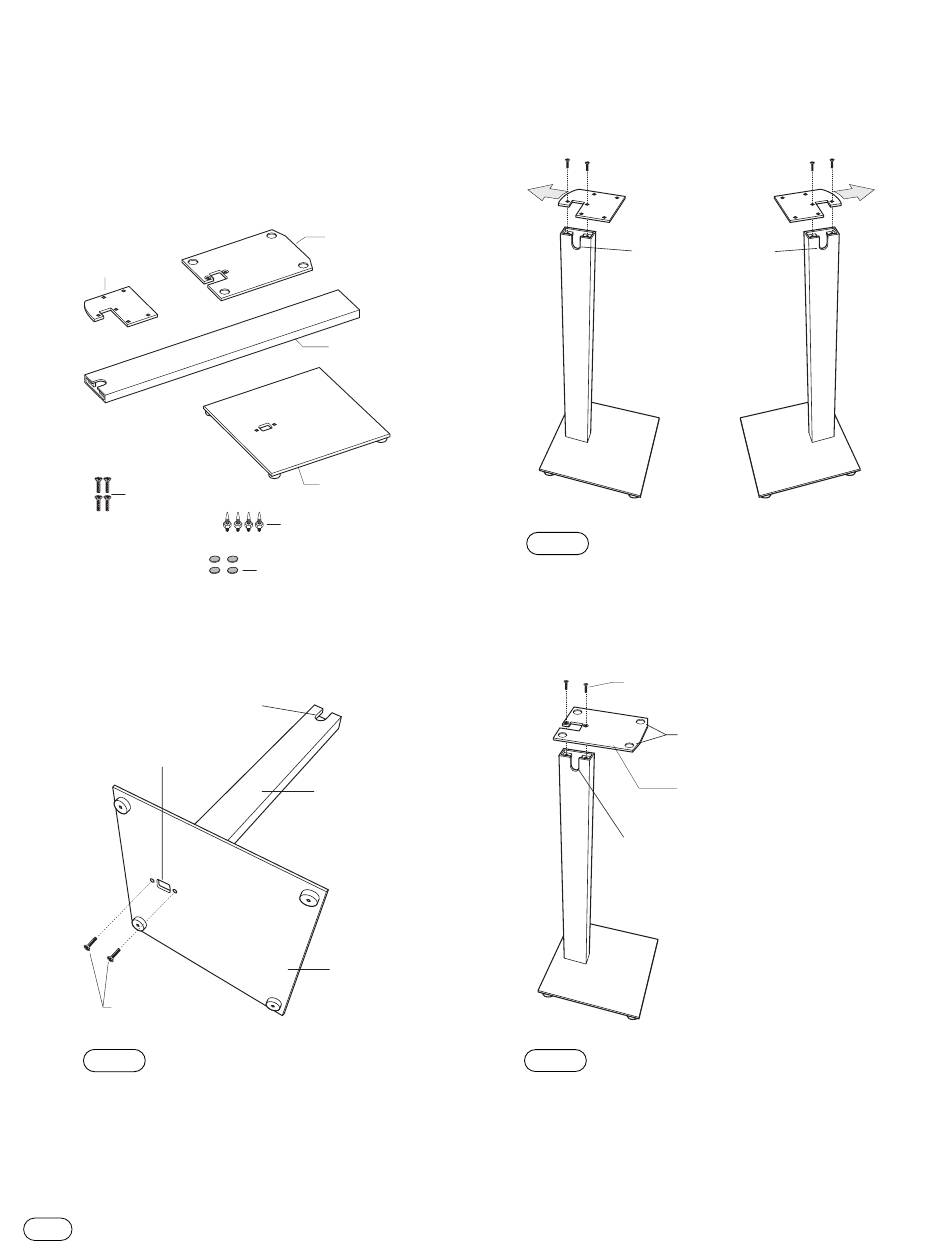

This Infinity speaker stand is designed to be used with the
Intermezzo 2.6 or Interlude IL10 speaker. Below are the pieces that are
included for this speaker stand.
INTERMEZZO 2.6
MOUNTING
PLATE
5/16 x 18 FLAT HEAD
SCREWS (4)
Cord access slot
in tower top
Cord access slot
in base bottom
5/16 x 18 FLAT
HEAD SCREWS (2)
S 1 Screw Tower to Base with (2) 5/16 x 18 Round Head
TEP
Screws. Note that it is important which direction the slot in the
Tower Top faces depending on the application desired. See
Steps 2A and 2B for possible applications.
FS-ITM/IL
2
INTERLUDE IL10
MOUNTING
PLATE
TOWER
BASE
SPIKED FEET with
NUT assemblies (4)
FOOT PADS (4)
TOWER
BASE
5/16 x 18
FLAT HEAD
SCREWS (2)
Outer
The Intermezzo Mounting Plate
side
is simply turned over for left or
right application
Note: The slot for cord and
wire access is facing the rear
Assembly
for RIGHT
side use
Assemblies viewed
from the rear
S 2A
Intermezzo 2.6 – When used with Intermezzo 2.6
TEP
speakers, the rounded edge of the Mounting Plate should face
the outer side of the stand assembly; the same side as the
decorative side panel on the front of each Intermezzo speaker.
5/16 x 18 FLAT
HEAD SCREWS (2)
Note: Place recessed holes
for Interlude Foot Pads
face up.
Interlude Mounting
Plate
Note: When assembled, the slot
for wire access on the tower top
should face the left side.
Right side
Assembly viewed
from the left
Back
Front
Left side
S 2B
Interlude IL10 – When used with Interlude IL10
TEP
speakers, the assembly process is the same, regardless of LEFT
or RIGHT placement.
5/16 x 18
FLAT HEAD
SCREWS (2)
Outer
side
Assembly
for LEFT
side use
