Quickstart Guide
V1.2
GSM Communicators
GC-36

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GC-36 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NIBBLE GC-36

Summary of Contents for NIBBLE GC-36

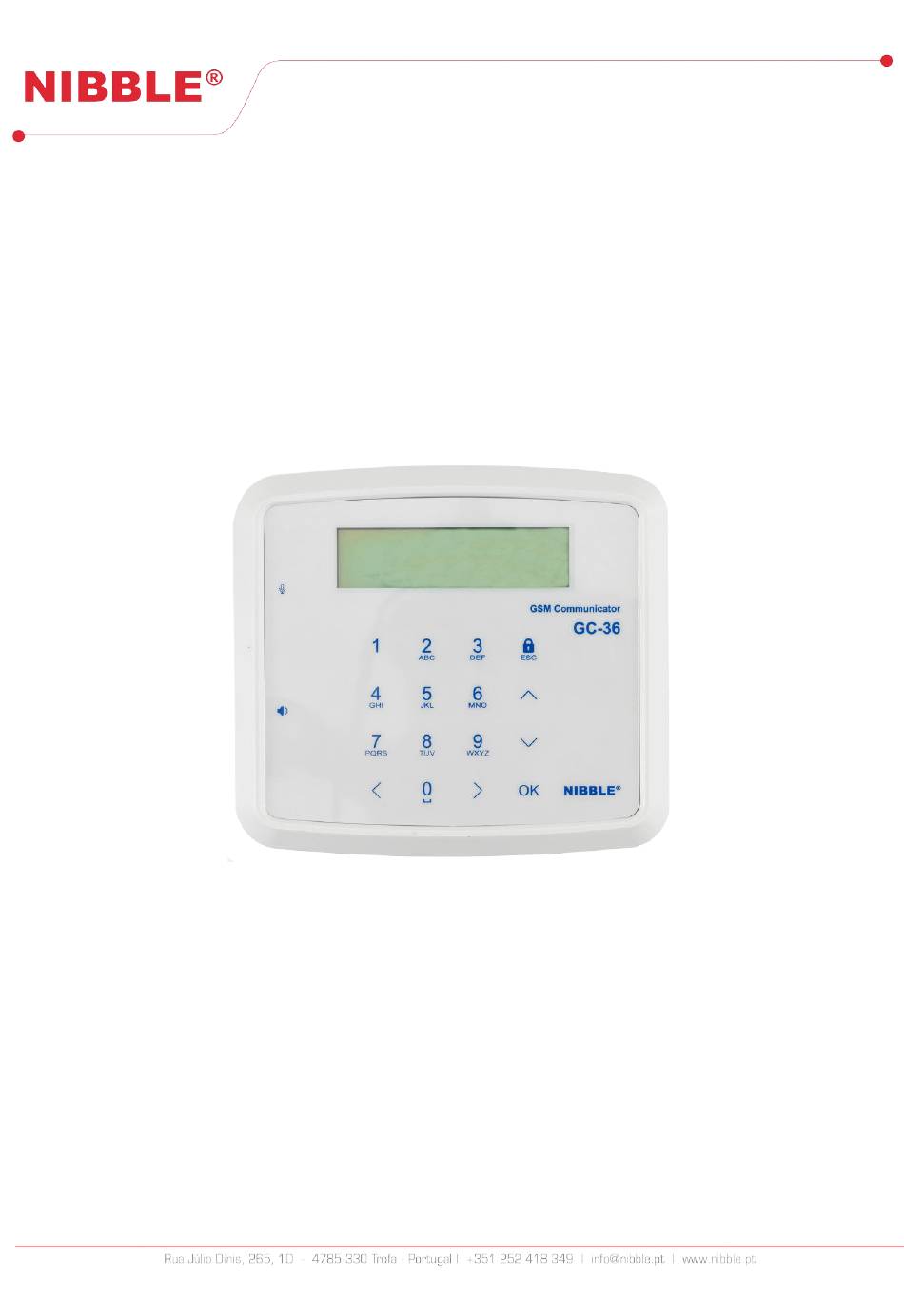

  • Page 1 Quickstart Guide V1.2 GSM Communicators GC-36...

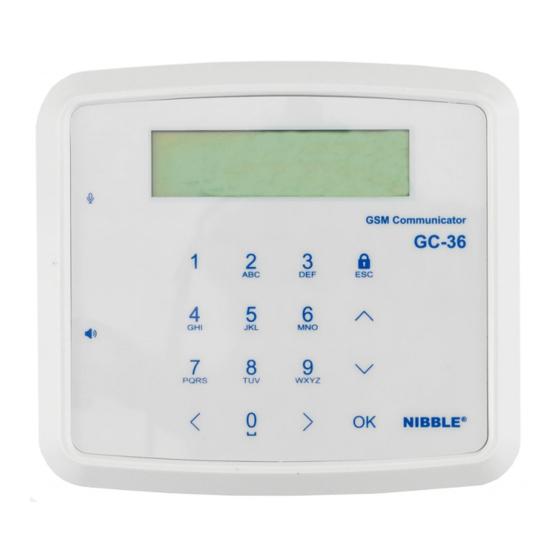

  • Page 2 GC-36 Congratulations on your purchase of the NIBBLE GC-36 GSM Communicator module! The NIBBLE GC-36 module was developed taking into account security and remote maintenance needs. Therefore, the module can operate completely by itself providing remote maintenance functions, automatic output actuation (actuation on incoming call and on input changes) and automatic input alerts (SMS and audio).
  • Page 3 Technical Characteristics • 2×16 LCD and capacitive keypad; • 6 bidirectional input/outputs; • Micro-USB; • 150 users; • SMS and voice message alerts for each input; • Periodic test calls; • Disarm code; • Access levels 2 and 3; • Output actuation with input changes: •...
  • Page 4 Bidirectional Inputs/Outputs The module provides 6 bidirectional input/output terminals, accessible at terminals IO1 to IO6. Each IO terminal is accompanied by a ground terminal to facilitate the connections and allows the application of voltage levels from 0V to 40V. Inputs The inputs are activated with a negative signal, that is, they are activated when a ground signal is applied in terminal IO.
  • Page 5 The figure shows a navigation diagram of the menu. From the lock screen, the user can: • Arm the system by pressing the button with the lock symbol; • Disarm the system by entering the disarm code (factory default 1234); •...
  • Page 6 SMS commands Arm/Disarm System and inputs SMS command Field [PIN],SS,[ARM],[IO] PIN – Level 3 access code. ARM – Field to arm/disarm the system: • A – Arm • D – Disarm IO – Index of input to arm/disarm, 1 to 6 Example: 123456,SS,A Arms the complete system Example: 123456,SS,A,1...
  • Page 7 Damages and losses NIBBLE is not liable for damages or losses that may arise from the use of its products. NIBBLE's liability for any claim based on breach of contract, negligence, breach of any right or responsibility in the product shall not exceed the amount paid to NIBBLE for that product.
  • Page 8 Rua Júlio Dinis, 265, 1D 4785-330 Trofa | Portugal 41º 20’ 14,01’’, -8º 33’ 44,10’’ (+351) 252 418 349 Distributed by:...
