Panasonic CQ-RDP102S Service Manual

Panasonic CQ-RDP102S Service Manual

Cd player / receiver with cd changer control
Hide thumbs
Table of Contents

Advertisement

Quick Links

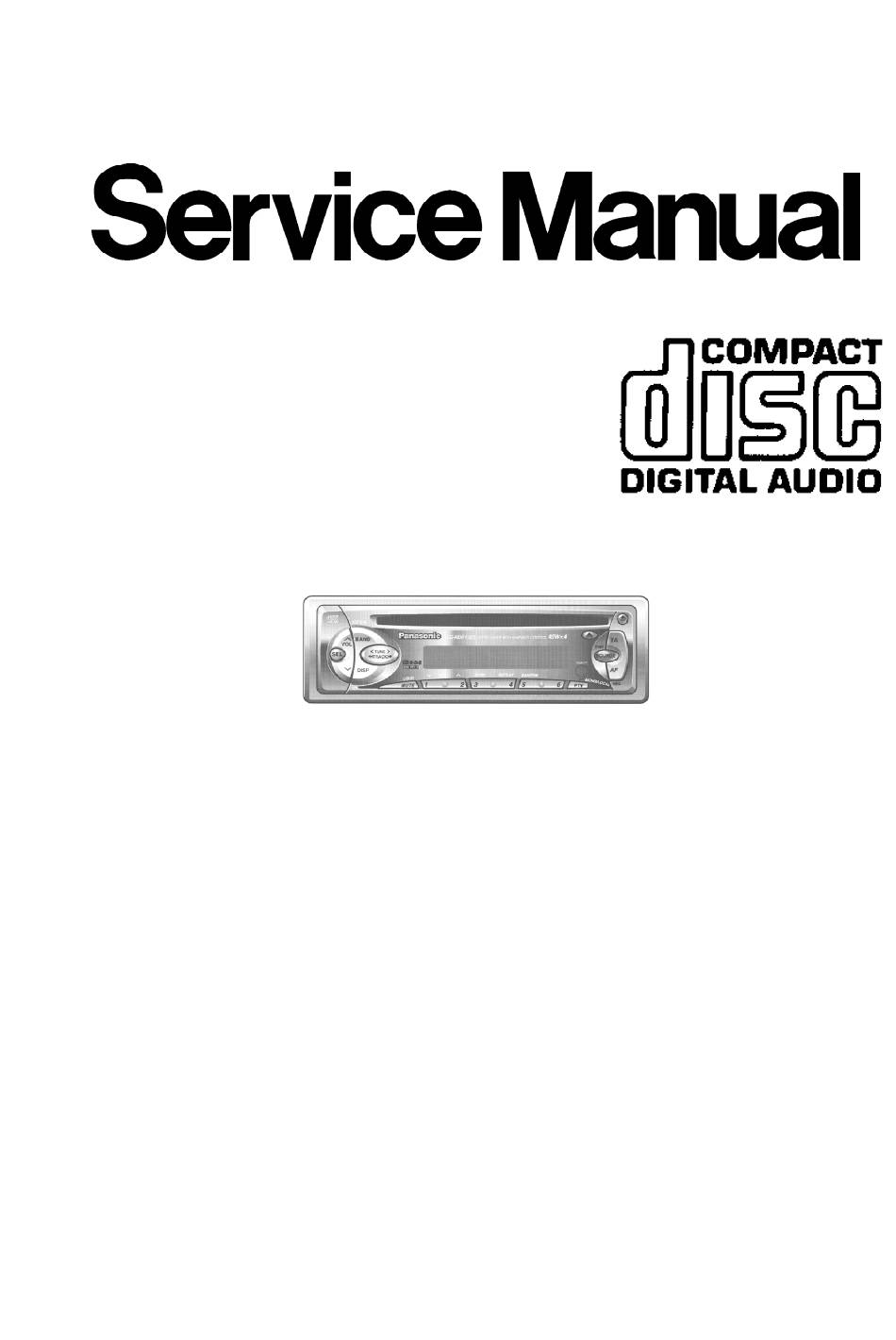

ORDER No. ACED020485C3
AUTOMOTIVE CONSUMER ELECTRONICS
CQ-RDP102S
CD Player / Receiver with CD Changer Control
SPECIFICATIONS
Specification*
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CQ-RDP102S and is the answer not in the manual?

Questions and answers

Isaac
June 12, 2025

Standard connecting diagram

0

Related Manuals for Panasonic CQ-RDP102S

Summary of Contents for Panasonic CQ-RDP102S

  • Page 1 ORDER No. ACED020485C3 AUTOMOTIVE CONSUMER ELECTRONICS CQ-RDP102S CD Player / Receiver with CD Changer Control SPECIFICATIONS Specification*...
  • Page 2 General Power Supply DC 12V (11V - 16V), Test Voltage 14.4V Negative Ground Tone Controls Bass ; ±12dB at 100Hz Treble ; ±12dB at 10kHz Current Consumption Less than 2.5A (CD play mode, 0.5W×4ch) 45W×4ch (at 4 Maximum Power Output Power Output 20W×4 (DIN45 324, at 4 Speaker Impedance...

  • Page 3: Laser Products

    1. FEATUERS - PLL (Phase Locked Loop) synthesized tuning. - 18-FM, 6-AM presets with preset scan - RDS (Radio Data System) reception. - Digital servo for reliable CD playback. - Removable face plate. 2. LASER PRODUCTS 3. REPLACEING THE FUSE Use fuses of the same specified rating (15A).

  • Page 4: Wiring Connection

    5. NOTES [RADIO BLOCK] Do not align the AM/FM package block. When the package block is necessary, it will be supplied already aligned at the factory. [CD DECK BLOCK] This model has no servo alignment points because microcomputer controls the servo circuit. 6.

  • Page 5: Block Diagram

    8. BLOCK DIAGRAM...

  • Page 6: Terminals Description

    9. TERMINALS DESCRIPTION...
  • Page 7 9.1. Main Block IC600 : C2CBHF000217 Pin No. Port Descriptions I/O(V) FM (V) AM (V) CD (V) (Connecting to ground) (Connecting to ground) (Connecting to ground) AVSS Analog ground AF MUTE AF mute AMP-CNT Power Amp. stand-by AVREF Reference voltage CD-MISO CD data CD-MOSI...
  • Page 8 Pin No. Port Descriptions I/O(V) FM (V) AM (V) CD (V) No connection No connection No connection TEL-MUTE Not used PANEL-DET Panel detect CD-ON CD power control PWR CNT Power control ACC-DET ACC detection RDS DATA RDS data /RESET Reset input Remocon data input BATT Battery detection...
  • Page 9 Pin No. Port Descriptions I/O (V) SEG1-8 LCD segment 9-35 SEG9-35 LCD segment 36-39 No connection 40-43 COM1-4 LCD common 44-49 KS1-6 Key data output 50-54 KI1-5 Key data input TEST (Connecting to ground) +5V power supply VDD1 Ground through capacitor VDD2 Ground through capacitor Ground...
  • Page 10 Pin No. Port Descriptions Vol.(V) LRCKIN DAC LRCK signal LRCK DAC LRCK signal HOLD/WDCK Not used Not used D.GND Digital logic Ground C16M Not used LIMIT (Connecting to VDD) D.VDD Digital logic power supply LOCK EFM SYNC detection RFCK Not used MIRR/WFCK Not used PLCK...

  • Page 11: Package And Ic Block Diagram

    Pin No. Port Descriptions Vol.(V) Photo detector E input A.VDD Analog logic power supply REFOUT Reference voltage output Focus error amp input Focus error amp output Tracking error amp input Tracking error amp output Tracking error amp output Tracking comparator input A.GND Analog logic Ground PD detection...
  • Page 14 IC201 : YEAMEA6320TT...
  • Page 15 IC270 : C1EA00000028 IC650 : C0JBAZ000904...
  • Page 16 IC900 : YEAMDA7479D...
  • Page 18 IC400 : C1BB00000541...
  • Page 19 10.2. Display Block IC902 : YEAMSBX8035F 10.3. CD Servo Block IC2 : C0GBY0000020...

  • Page 20: Replacement Parts List

    11. REPLACEMENT PARTS LIST Notes : 1. Be sure to make your orders of replacement parts according to this list. 2. Important safety notice: Components, identified by mark have special characteristics important for safety. When replacing any of these components, use only manufacturer's specified parts.
  • Page 21 3. Location keys in the remarks column indicates the general location of the parts shown in the exploded drawing, as in a road map. 4. The marking (RTL) indicates that Retention Time is limited for this item. After the discontinuation of assembly in production, the item will continue to be available for a specific period of time.
  • Page 22 Ref. No. Part No. Part Name & Description Remarks D202 B0EAKP000011 Diode D203 B0EAKP000011 Diode D204 B0EAKP000011 Diode D301 B0EAKP000011 Diode D302 B0EAKP000011 Diode D303 B0EAKP000011 Diode D304 B0EAKP000011 Diode D602 LN25RP D702 YEAD1SS133T Diode D703 B0BA5R700006 Diode D705 YEAD1SS133T Diode D706 YERAD0001...
  • Page 23 Ref. No. Part No. Part Name & Description Remarks C308 YECUZ1C333KX Ceramic, 0.033 F 16WV C309 YECUZ1H562KX Ceramic, 5600PF 50WV C310 ECEA0JKA101I Electrolytic, 100 F 6.3WV C311 ECEA1CKA470I Electrolytic, 47 F 16WV C312 YERCC121J1H Ceramic, 120PF 50WV C330 ECEA1CKA100I Electrolytic, 10 F 16WV C331 ECEA1CKA100I Electrolytic, 10...
  • Page 24 C716 YECUS1C474KX Ceramic, 0.47 F 16WV Ref. No. Part No. Part Name & Description Remarks C717 YECUS1C474KX Ceramic, 0.47 F 16WV C720 YECUZ1E104ZF Ceramic, 0.1 F 25WV C721 YECUS1C474KX Ceramic, 0.47 F 16WV C723 ECEA0JKA470I Electrolytic, 47 F 6.3WV C731 YECUZ1E104ZF Ceramic, 0.1 F 25WV C732...
  • Page 25 Ref. No. Part No. Part Name & Description Remarks R409 ERJ3GEYJ563V Chip, 56k 1/16W R411 ERJ6GEYJ100 Chip, 10 1/10W R601 ERJ3GEYJ473V Chip, 47k 1/16W R602 ERJ3GEYJ473V Chip, 47k 1/16W R604 ERJ3GEYJ473V Chip, 47k 1/16W R608 ERJ3GEYJ102V Chip, 1k 1/16W R609 ERJ3GEYJ102V Chip, 1k 1/16W R610...
  • Page 26 Ref. No. Part No. Part Name & Description Remarks R714 ERDS2TJ681 Carbon, 680 1/4W R720 ERJ3GEYJ103V Chip, 10k 1/16W R721 ERJ3GEYJ103V Chip, 10k 1/16W R722 ERJ3GEYJ473V Chip, 47k 1/16W R723 ERJ3GEYJ222V Chip, 2.2k 1/16W R724 ERJ3GEYJ821V Chip, 820 1/16W R725 ERJ3GEYJ154V Chip, 150k 1/16W R726...
  • Page 27 Ref. No. Part No. Part Name & Description Remarks DIODEs D901 MA8056L Diode D902 MA8056L Diode D903 MA8056L Diode D904 MA8056L Diode D905 MA8056L Diode D906 B3AAB0000080 Diode D925 LN1361C6TR Diode D926 LN1361C6TR Diode D927 LN1361C6TR Diode D929 LN1361C6TR Diode D930 LN1361C6TR Diode...
  • Page 28 Ref. No. Part No. Part Name & Description Remarks SWITCHEs SW902 YEAS09312 Switch SW903 YEAS09312 Switch SW904 YEAS09312 Switch SW906 YEAS09312 Switch SW908 YEAS09312 Switch SW909 YEAS09312 Switch SW910 YEAS09312 Switch SW912 YEAS09312 Switch SW913 YEAS09312 Switch SW914 YEAS09312 Switch SW915 YEAS09312 Switch...
  • Page 29 Ref. No. Part No. Part Name & Description Remarks YECUZ1E104ZF Ceramic, 0.1 F 25WV YECUZ1E104ZF Ceramic, 0.1 F 25WV YECUZ1E104ZF Ceramic, 0.1 F 25WV YECUZ1E104ZF Ceramic, 0.1 F 25WV YECUZ1E104ZF Ceramic, 0.1 F 25WV YECUZ1H103KX Ceramic, 0.01 F 50WV YECUZ1H103KX Ceramic, 0.01 F 50WV ECEV1CA100SR Electrolytic, 10 F 16WV...
  • Page 30 Ref. No. Part No. Part Name & Description Remarks J608 ERJ8GEY0R00V Chip, 0 1/8W J609 ERJ8GEY0R00V Chip, 0 1/8W J610 ERJ8GEY0R00V Chip, 0 1/8W J611 ERJ8GEY0R00V Chip, 0 1/8W J612 ERJ6GEY0R00V Chip, 0 1/10W J613 ERJ6GEY0R00V Chip, 0 1/10W ERJ3GEYJ103V Chip, 10k 1/16W ERJ3GEYJ103V Chip, 10k 1/16W...
  • Page 31 Ref. No. Part No. Part Name & Description Remarks INSTALLATION PARTs YEFA131551 Front Panel Case YEFC05589 Trim Plate Mechanical Parts MISCELLANEOUS YEAF02015 Fuse, 15A ANT51 YERAA0001 Antenna Receptacle YEATSD00405 Terminal, GND (CD) AT1-3 YERAT0001 Terminal, GND (Main) K4ZZ01000043 Clamp Wire YEFA031842 Top Cover YEFA05844...

  • Page 32: Exploded View (Unit)

    Ref. No. Part No. Part Name & Description Remarks XTB3+6FFX Screw, M3x6 YEJT03156 Screw, M2.6x8 YERJT01008 Cup Tite Screw, M2x4 YEJT03009 Screw, M3x6 XTN2+8GFZ Screw, M2x8 YEJT03267 Screw, M2.8x5 YERJT01006 Screw, M2x3 YERJT01007 Tap Tite Screw, M3x5 XTB3+8GFX Screw, M3x8 12.

  • Page 33: Cd Player Mechanical Parts List

    13. CD PLAYER MECHANICAL PARTS LIST...
  • Page 34 Ref. No. Part No. Part Name & Description Remarks YERFA01001 Frame M (1-C) YERFA01002 Top Cover M (4-C) YERFS04001 Dumper F (1-B) (1-C) YERFS04002 Dumper R (2-C) YERFA01003 Chassis Rivet Ass'y (M) (3-B) YERFX046001 Change Plate Rivet Ass'y (M) (2-C) YERFX007001 Clamper Ass'y (3-C)

  • Page 35: Exploded View (Cd Deck)

    Ref. No. Part No. Part Name & Description Remarks YERFW04004 Roller Guide (2-A) (1-B) YERFX005007 Roller Guide Spring (2-A) YERFX046015 Disc Stopper Arm (1-A) (2-A) YERFX005008 Disc Stopper Arm Spring (2-A) YERFX046016 LD Gear Bracket (2-B) YERFX046017 L Slide Plate (2-C) YERFX005009 Loading Plate Spring...

  • Page 36: Wiring Diagram

    15. WIRING DIAGRAM 15.1. Display Block 15.2. Main Block (Top View) 15.3. Main Block (Bottom View)

  • Page 37: Schematic Diagram For Printing With A4 Size

    15.4. CD Servo Block 16. SCHEMATIC DIAGRAM -1 16.1. Display Block 17. SCHEMATIC DIAGRAM -2 17.1. Main Block 17.2. CD Servo Block 18. SCHEMATIC DIAGRAM for Printing with A4 Size 18.1. Main Block (Left Side) 18.2. Main Block (Right Side) 18.3.
  • Page 39 17 SCHEMATIC DIAGRAM -2 17.1. Main Block...
  • Page 40 CQ-RDP102S...
  • Page 41 [E-9136] [BOTTOM VIEW] CQ-RDP102S CD SERVO PCB...
  • Page 42 [E-9188] [TOP VIEW] [E-9188] [BOTTOM VIEW] CQ-RDP102S DISPLAY PCB...
  • Page 43 [E-6896A] [BOTTOM VIEW] CQ-RDP102S MAIN PCB...
  • Page 44 [E-6896A] [TOP VIEW] CQ-RDP102S MAIN PCB...
  • Page 45 CQ-RDP102S CD DECK Printed in Japan (K) 2002.4 (Recycled Paper)
  • Page 46 CQ-RDP102S 17.2. CD Servo Block...
  • Page 47 CQ-RDP102S CD DECK Printed in Japan (K) 2002.4 (Recycled Paper)
