NextCentury LS4 Operation And Installation Manual

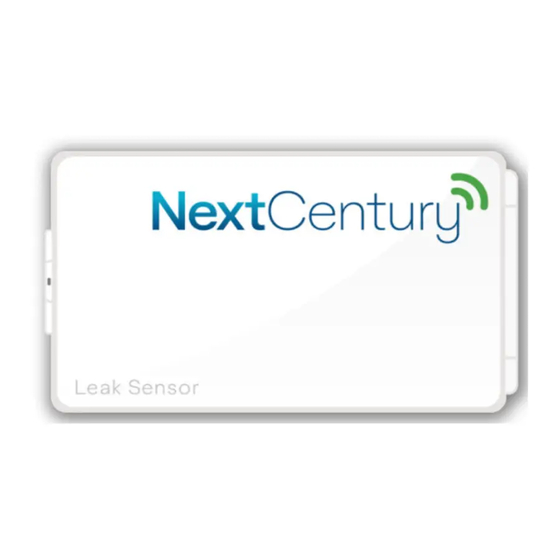

LS4 Leak Sensor
Wireless Leak Sensor
Operation and Installation Guide
1| Product Overview
The LS4 Leak Sensor introduces advanced water
detection and alerting to the NextCentury platform.
Featuring LeakSense+™ technology, the LS4
protects against costly water damage claims and
repairs.
2| Technical Specifications
2.1 – Certifications
FCC: 2AB8I-LS4 IC: 20949-LS4
2.2 – Wireless Communication
• Two-way NextCentury RF Connect™
• 902-928 MHz Unlicensed Band
2.3 – Sense Cable Options
• Connect additional Sense Cables on to each other
to extend detection area (additional Sense Cables
sold separately)
• Up to 12' of Sense Cable length
2.4 – In-Field Setup
• Simple programming and verification using mobile
app
2.5 – Battery
• Preinstalled, field-replaceable CR18505
• Estimated 10-year battery life*
*Note: 10-year battery estimated with operating temperatures
between 60ºF-90ºF, and 6-hr device check-in. Achieved battery
life can be greater or less than 10 years depending on the meter
type, system configuration, and lifetime operating temperature.
2.6 – Dimensions
• 3.3in x 1.8in x 1.3in (84mm x 46mm x 33mm)
2.7 – Operation Environment:
• -20°C to 60°C (-4°F to 140°F )
• Indoor installation
4| Package Contents
A – LS4 Leak Sensor
C - Mounting Plate
4| In-Field Installation
4.1 – Mounting Plate Installation
• Peel off backing on the included adhesive pad and mount
• (Optional) For additional holding strength, the included
sales@nextcenturymeters.com
www.nextcenturymeters.com
B – Sense Cable
D – Mounting screws & anchors
onto the wall
screws and plastic anchors can be used. Pre-drill using a
7/32" (5.5mm) drill bit
V. 051222
