VERNA

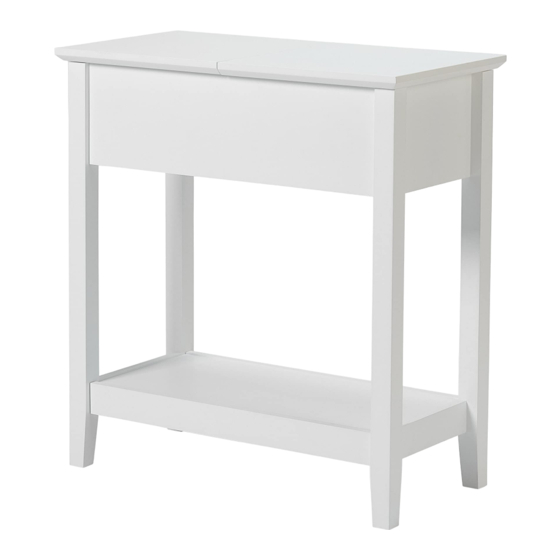

STORAGE END TABLE
Item#: 64017
ATTACH YOUR RECEIPT
Keep a copy of your proof of purchase
or order confirmation, which will be
needed if you need to contact us about
warranty coverage.
Purchase date:
Questions, problems, missing parts?
Before returning to your retailer, our Florida-based customer service team is available:
Call toll-free
Email
Live Chat
(866) 985-7877
cservice@welltraveled.net
www.balkenehome.com
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
9 am – 9 pm, EST
9 am – 6 pm, EST, Monday – Friday
10112021
Advertisement
Table of Contents
Related Manuals for Balkene Home VERNA 64017
Summary of Contents for Balkene Home VERNA 64017
- Page 1 VERNA STORAGE END TABLE Item#: 64017 ATTACH YOUR RECEIPT SAVE THESE INSTRUCTIONS Keep a copy of your proof of purchase FOR FUTURE REFERENCE. or order confirmation, which will be needed if you need to contact us about warranty coverage. Purchase date: Questions, problems, missing parts? Before returning to your retailer, our Florida-based customer service team is available: Call toll-free...
-
Page 2: Before You Begin
INFORMATION BEFORE YOU BEGIN Before beginning assembly, make sure all parts are present. Compare parts received with the "Parts List." If any part is missing or damaged, do NOT attempt to assemble the product. Please read and understand this entire manual before attempting to assemble this product. -
Page 3: Parts List
PARTS LIST PART DESCRIPTION HARDWARE CONTENTS Table Lid Tabletop End Panel Right Side Left Side Bolt Dowel 6x35mm 6x30mm Cabinet Bottom Qty: 18 Qty: 18 Qty: 8 Shelf Shelf Support YOU WILL NEED FOR ASSEMBLY: (not included) Screw Hinge Bumper Foot Pad Philips-head screwdriver 3x25mm... - Page 4 ASSEMBLY Insert a Cam Bolt into the hole near the center of each of the 2 Shelf Supports . Use a Philips-head screwdriver to tighten the threads fully into the Shelf Supports. Hardware Required: Cam Bolt x2 ×2 Place the Shelf upside-down (with surface holes facing up).
- Page 5 ASSEMBLY Insert a Dowel into each of the 2 remaining holes in one End Panel . Then, slide the assembled Shelf onto the Dowels and Cam Bolts at the base of the End Panel. Fasten the components together by inserting Cam Nuts into the holes adjoining each Cam Bolt and turning clockwise to secure.
- Page 6 ASSEMBLY Install 4 Cam Bolts in the underside of the Tabletop Hardware Required: Cam Bolt x4 Insert a Cam Nut into each of the 4 remaining holes in the interior of the cabinet, rotated so the arrows point up. Attach the Tabletop by inserting the Cam Bolts into the holes in the top edge of the table base as shown.
- Page 7 ASSEMBLY Place the Table Lid upside-down on top of the Tabletop with flat edges aligned. Open and insert the Hinges into the aligned oblong cavities. Fasten each Hinge using 4 Screws clockwise to secure. Apply the Bumpers to the exposed tops of the legs.
- Page 8 EXTEND YOUR WARRANTY When you purchase a Fire Sense or Balkene Home product from any authorized retailer, you'll have peace of mind in knowing that it comes with a one-year warranty. Extend your warranty for an additional year when you review your item at balkenehome.com within 365 days of purchase.
