Summary of Contents for RSI EZdesk

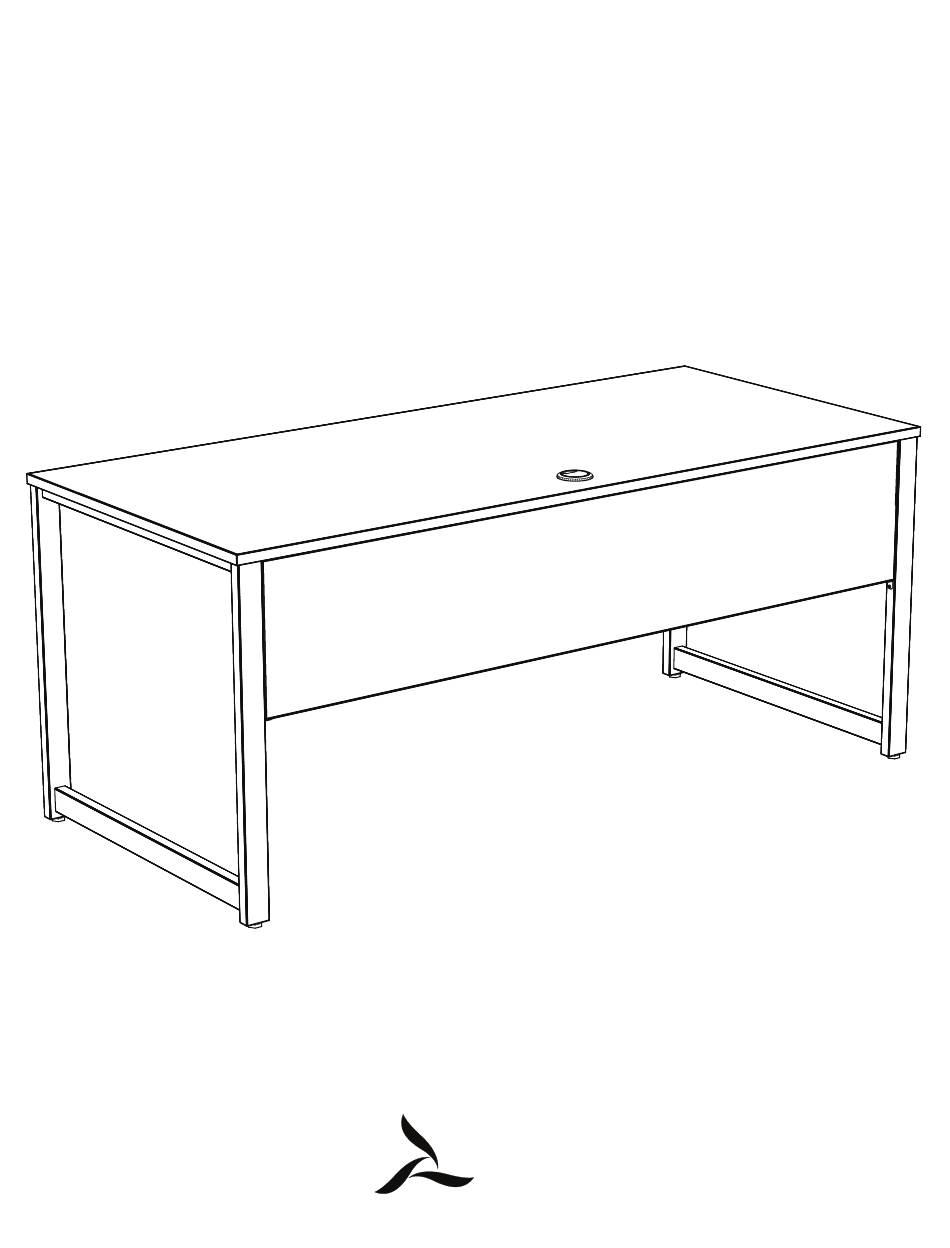

- Page 1 Install Guide desk R S I R S I S Y S T E M S F U R N I T U R E . C O M...
- Page 2 Hardware desk Part: PHW-L-BRACKET Part: PHW-XD-MOD-L-BRKT Desc: Modesty / Surface L-Bracket Desc: Modesty / Leg L-Bracket Color: Black Color: Charcoal / Silver Qty: 2 Qty: 2 Part: PHW-SCREW-10-P-3/4-FL Part: PHW-SCREW-8-FFT-5/8 Part: PHW-SCREW-10-PT-3/4 Desc: #10 X 3/4 Coarse Thread Flat-Head Phillips Screw Desc: #8 X 5/8 Flat-Head F-Type Machine Screw Desc: #10 X 3/4 Pan-Head Tapping Screw Color: Black...
- Page 3 Step: 1 Remove desk from box and flip legs up Step: 2 Attach 16-Qty (Fig-5) screws into the pre-drilled holes on the desk. Step: 3 Attach 2-Qty (Fig-1) brackets using 6-Qty (Fig-3) screws into pre-drilled holes on the modesty panel.
- Page 4 Step: 4 Attach 2-Qty (Fig-2) brackets using 2-Qty (Fig-4) screws into pre-drilled holes on metal legs. Step: 5 Attach modesty to desk using 6-Qty (Fig-3) screws into pre-drilled holes on desk. Step: 6 Attach modesty to metal leg using 2-Qty (Fig-3) screws...
