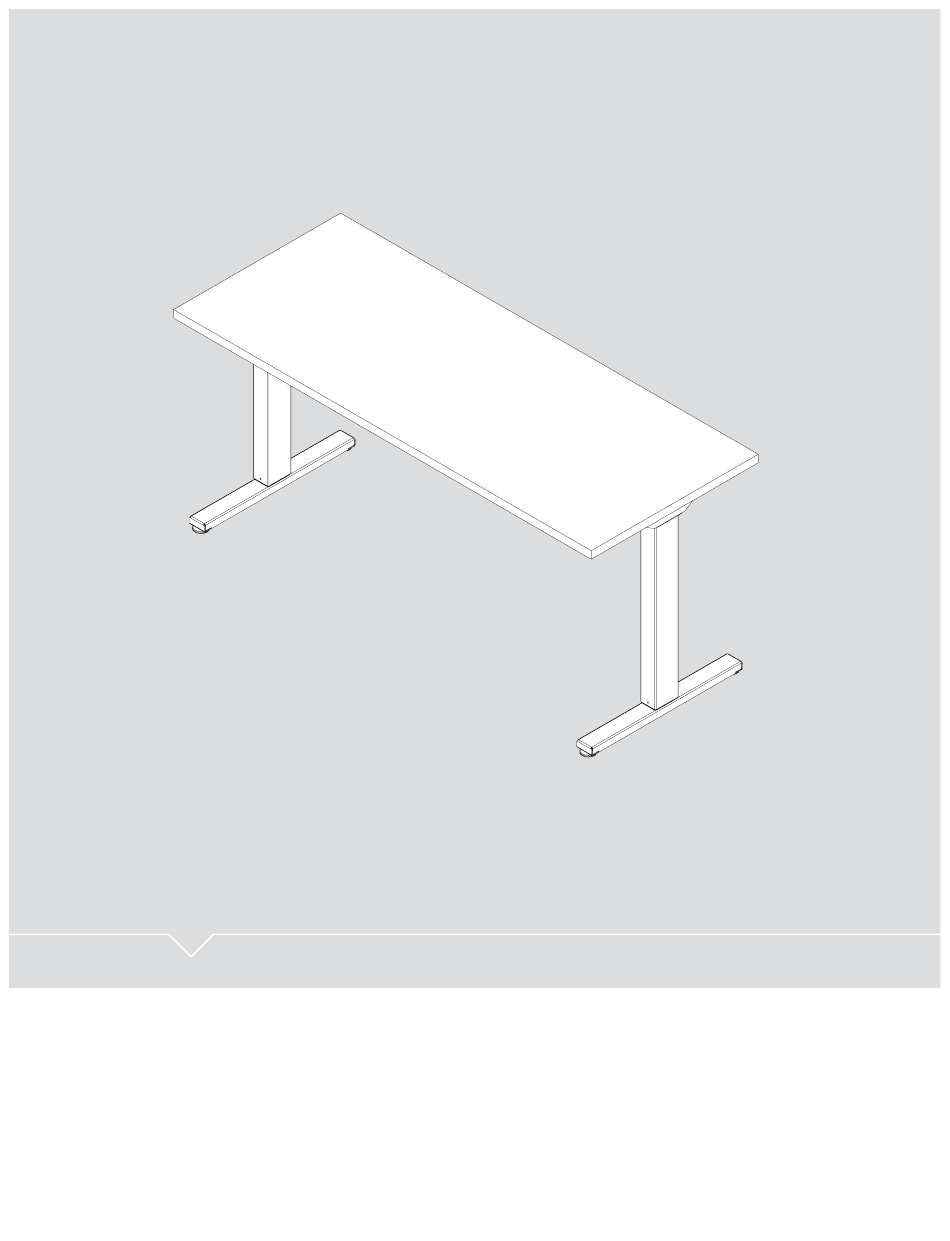

  • Page 1 PIVOT HEIGHT ADJUSTABLE TABLE USER GUIDE...
  • Page 2 PIVOT HEIGHT ADJUSTABLE TABLE FEATURES • Full table base (add your own work surface) • Meets BIFMA X5.5 standards • UL 962 approved • Easy-order with one part number • Lift capacity up to 250 lb.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS Parts Diagram Independent Table Table with Anti-Sag Bar Safety Information Assembly Instructions 8-11 Operation Initialization and Reset Handswitch Operation Troubleshooting Unit Errors Technical Data Warranty Standards & Certifications This manual explains how this sit-stand desk is assembled, used, and maintained. All sit-stand tables are subjected to functional and quality tests before leaving our facility.
  • Page 4: Parts Diagram

    PIVOT PARTS DIAGRAM INDEPENDENT TABLE For tables up to 60" PARTS Qty/Package 1. Column 2. Handswitch 3. Control Box 4. Power Cord 5. #10 x ¾" Screw...
  • Page 5 TABLE WITH ANTI-SAG BAR For tables over 60" PARTS Qty/Package 1. Column 2. Handswitch 3. Control Box 4. Power Cord 5. Anti-Sag Bar 6. #10 x ¾" Screw...
  • Page 6 SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS Save these instructions. DANGER To reduce the risk of electric shock: Always unplug this furnishing from the electrical outlet before cleaning. WARNING: To reduce the risk of death, serious injury, or property damage, read and follow this safety information and the provided instructions when assembling this product.
  • Page 7: Safety Information

    SAFETY INFORMATION DO NOT OVERLOAD DESK To prevent table from tipping or collapsing, make sure the desk frame is not overloaded by the weight of tabletop and objects on table. Evenly distribute load; excess loads near edges can reduce stability and lead to tip over.
  • Page 8 ASSEMBLY INSTRUCTIONS The assembly of the table frame to be made in accordance with this manual. Changes to the table frame or improper use may affect the safety, function, and life of your product. ASSEMBLY OVERVIEW 1. Assemble the columns to the top 2.
  • Page 9: Assembly Instructions

    ASSEMBLY INSTRUCTIONS ASSEMBLE THE COLUMNS TO THE WORK SURFACE Center the columns front to back on the work surface. Use the #10 x ¾" screws to fasten the top support onto the table top. Be sure motor boxes are mounted 1.5" from edge of work surface.
  • Page 10: Assembly Instructions

    ASSEMBLY INSTRUCTIONS FASTEN THE CONTROL BOX AND HANDSWITCH TO THE TABLE TOP Make sure the control box and handswitch are fastened in a location where all the cables will connect without being in tension. Be sure to use approved screws per the table top supplier.
  • Page 11 ASSEMBLY INSTRUCTIONS CONNECT THE HANDSWITCH (HS) CABLE TO THE CONTROL BOX CONNECT THE SUPPLIED POWER CORD (AC) TO THE CONTROL BOX ATTACH ALL CABLES TO THE TABLE FRAME OR ON THE UNDERSIDE OF THE TABLE TOP Attach cables in order to avoid any damage during operation. Never wrap cables and/or cords around the columns.
  • Page 12: Operation

    OPERATION INFORMATION INITIALIZATION/RESET The desk must be initialized/reset after any of the following: - After assembly - After disconnection from the power supply - After any impact on the table top. To initialize/reset, move the table to the lowest position by pressing the DOWN button on the handswitch until the columns reach the lowest position.
  • Page 13: Troubleshooting

    TROUBLESHOOTI TROUBLESHOOTING UNIT ERROR CODE SOURCE SOLUTION No power supply Plug in the power cord or check the connection Table does not on the control box move No connection or a loose Verify the plug connections of the motor cable connection to the drives to the control box No connection or a loose...
  • Page 14: Technical Data

    TROUBLESHOOTING TECHNICAL DATA GENERAL CONTROL BOX Power supply 120 VAC ±10% / 60 Hz Standby power consumption, primarily <0.3 W Operating temperature 0-35°C Protection class IP 20 Maximum power output 240VA/24V TWO-COLUMN FRAME WITH CONTROL BOX Maximum lift capacity 250 lb (≈ 113 kg / 1112N) Adj.
  • Page 15: Warranty

    TROUBLESHOOTING STANDARDS & CERTIFICATIONS The drive system is tested according to the following standards: UL 962 Issued: 2019/05/21 Ed: 4 Household and Commercial Furnishings CSA C22.2#68 Issued: 2019/05/21 Ed: 8 (R2018) Motor-Operated Appliances (Household and Commercial) Meets BIFMA x5.5 2014. WARRANTY CONTACT YOUR SALES REPRESENTATIVE FOR WARRANTY INFORMATION End of life cycle: Once product is disassembled, all steel components can be recycled at your local metal collector.
  • Page 16 PIVOT USER GUIDE...
