Radio Control FW 18
Table of Contents
Black-and-white control / proportional control
(as from series 1987)
1. SAFETY AND ACCIDENT
REGULATIONS
2. SHORT INSTRUCTIONS
3. PREFACE
4. EXTRACT
FROM
WARRANTY
5. MODEL PLATES
6. TECHNICAL DATA
7. SHORT DESCRIPTION
8. CONTROL AND MONITORING EQUIPMENT
9. COMMISSIONING
10. OPERATING THE RADIO CONTROL
11. PUTTING
OUT
CHANGEOVER
12. SAFETY DEVICES AND TROUBLESHOOTING
13. MAINTENANCE WORKS AND CHECKS,
14. CHANGING AND CHARGING OF BATTERY
1. Safety and Accident
Prevention Regulations
The safety and accident prevention regulations
stipulated in the operating instructions for the
truck-mounted concrete pump are applicable and
binding for the operation with the remote control
too.
•
To avoid any unintended working movement of
the machine and before changing from one control
system to another:
!SET ALL CONTROL ELEMENTS IN THE
DRIVER'S CAB AND ON THE REMOTE
CONTROL PANEL TO ZERO POSITION.
STOP DRIVING ENGINE.
PREVENTION
THE
TERMS
OF
OF
OPERATION
-
Service Manual
Remote Control Cable/Radio
•
Only specialists are allowed to repair the radio
controls.
•
In case of any failure, notify the SCHWING
after-sales service.
•
Only
persons
SCHWING are allowed to open leaded housings.
•
Unauthorized manipulations may result in
great damages and render all warranty claims void.
See also section 4.1.

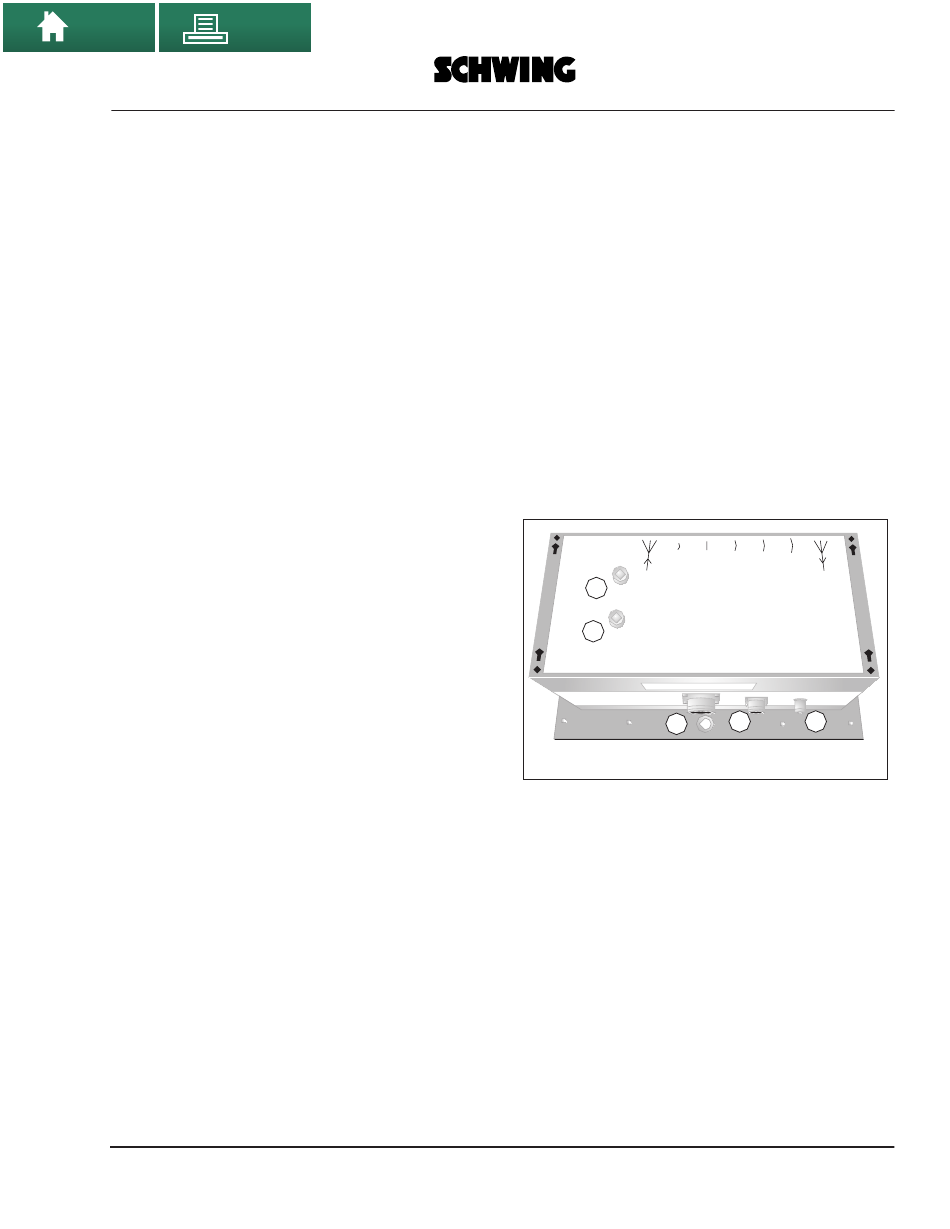

ATTENTION! Before welding the machine, make
absolutely sure that the plugs of the connection
cables are detached from sockets 7, 8, and 9 of the
receiver. Protect the socket by means of a sealing
cap. Non-observance would result in damage to
the electronic control system (see also customer
information K 29).
4
5
7
authorized
by
Messrs.
9
8
553
