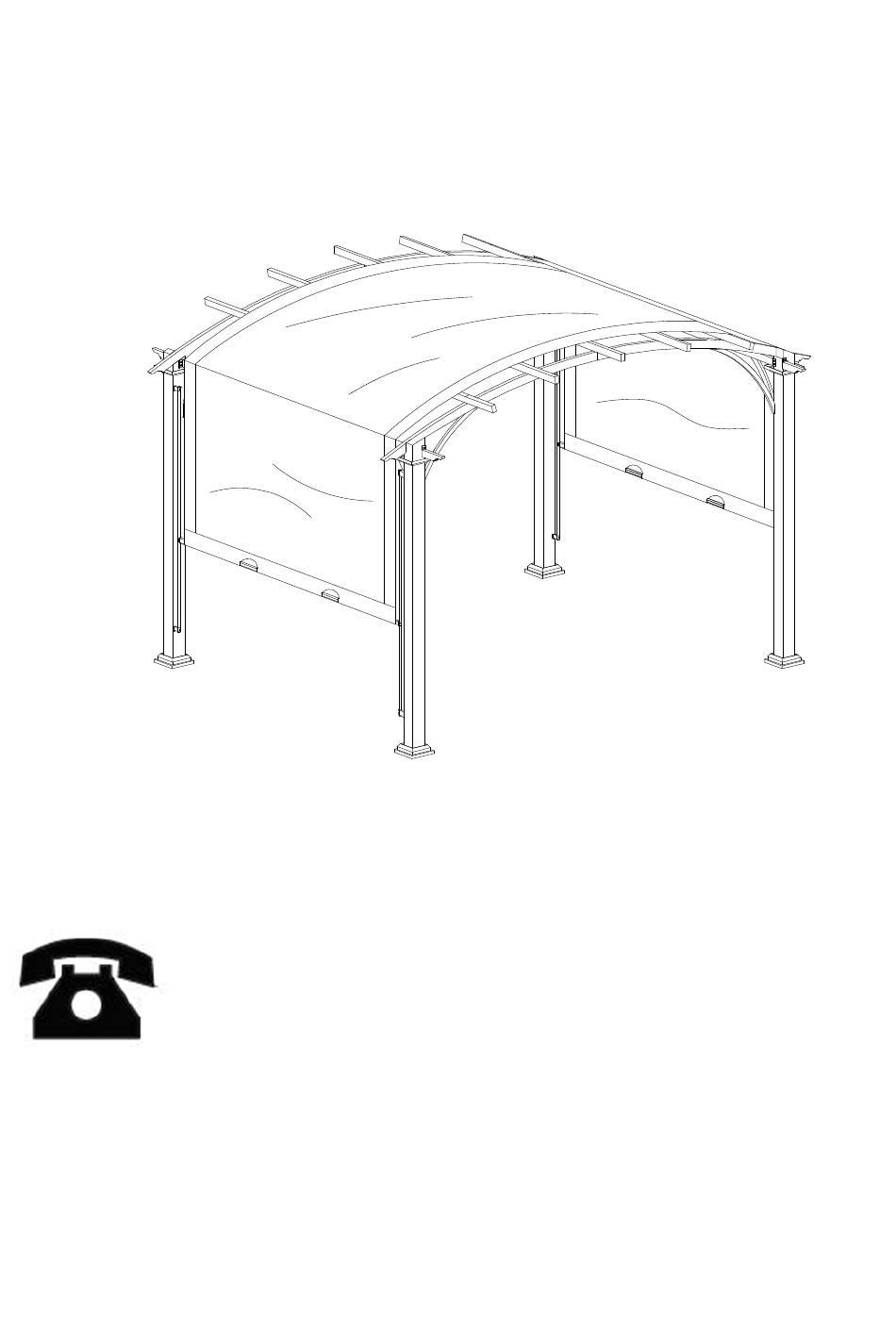

HDO 10x10 Arched Pergola
Model No.: A106004620
Model UPC: 041226176469
Quality Guaranteed:
If you are not completely satisfied with this product, return it
for refund or replacement.
Comments or questions? 800-697-2448
www.interamericanproducts.com
Distributed by Inter-American Products, Cincinnati, OH 45202
Advertisement
Related Manuals for Sunjoy HDO Arched Pergola A106004620
Summary of Contents for Sunjoy HDO Arched Pergola A106004620
- Page 1 HDO 10x10 Arched Pergola Model No.: A106004620 Model UPC: 041226176469 Quality Guaranteed: If you are not completely satisfied with this product, return it for refund or replacement. Comments or questions? 800-697-2448 www.interamericanproducts.com Distributed by Inter-American Products, Cincinnati, OH 45202...
- Page 2 GENERAL BEST PRACTICES F OR ASSEMBLY • Please read and understand this entire manual before attempting to assemble or install the product. • Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. • The assembled gazebo should be located at least 6 feet from any obstruction such as fence, garage, house, overhanging branches, laundry lines or electrical wires. • Some parts may contain sharp edges. Wear protective gloves if necessary, during assembly. • Check all nuts and bolts periodically for tightness and, when required, tighten them again. • Pay attention to the parts orientation. WARNINGS • Install the gazebo on level ground. Stakes are provided to secure the gazebo to the ground. • Do not assemble the gazebo on sandy, muddy or loose soil, as stakes do not have enough anchorage in these types of soil. • If you wish to secure the gazebo to a wood deck or concrete surface, use anchors suited to these surfaces. • Remove all excess snow from the roof. • Do not leave the gazebo where there is a risk of high wind, as possible damage will occur to the structure. •...
-
Page 3: Maintenance
MAINTENANCE • Steel components for this gazebo are treated with rust inhibiting paint that protects it from rusting. However, due to the nature of steel, surface oxidation (rusting) will occur if these protective coatings are scratched. This is not a defect and thus not covered by the warranty. • To minimize this condition, it is recommended to use care when assembling and handling the product to prevent scratching the paint. Should any scratching or damage occur, it is recommended to cover the scratch immediately with rust inhibiting paint (not included). • Surface rust can also be easily removed with a very light application of regular cooking oil or WD‐40. If surface oxidation (rusting) occurs and if no measure is taken to prevent this, the oxidation may start dripping onto deck or patio and caused damaging stains, which may be difficult to remove. This can be prevented if the above‐mentioned measures are taken to keep the product from oxidizing. • Do not use bleach, acid, or other abrasive cleaners on the roof or frame parts. • Keep instruction manual for future reference. • Keep the original packaging to store the gazebo. • Periodically check and ensure that all bolts are well‐tighten during use. Tools Recommended (Not Included) Included ... -
Page 4: Exploded Drawing
Exploded Drawing... -
Page 5: Parts List
Parts List Description Label Part Number Part Image P000200545 Post 1 P000200546 Post 2 P006100202 Base Cover P000100400 Base P005600431 Decoration 1 P005600432 Decoration 2 P005000527 Brace (Short) P005000528 Brace (Long) P000601829 Long Beam P000601828 Short Beam P000601830 Top Beam 1 P000601831 Top Beam 2 P000401061... -
Page 6: Hardware Pack
P005700771 Fabric Tube 1 P005700770 Fabric Tube 2 P006400019 Canopy Hardware Pack Label Part Number Description Spare Part Image H010010003 Bolt M6*15 H050030001 Flat Washer M6 H010010110 Bolt M6*45 H010030522 Bolt M6*10 H010030022 Bolt M6*75 H070010003 Stake Φ8*180 H010030030 Bolt M6*15 H090010017 Wrench M6 H090030002... - Page 17 Country of Origin: China Production Number: 2022300015...
