ESPECIFICACIONES RIEL TÉCNICO RM
3
6
7
8

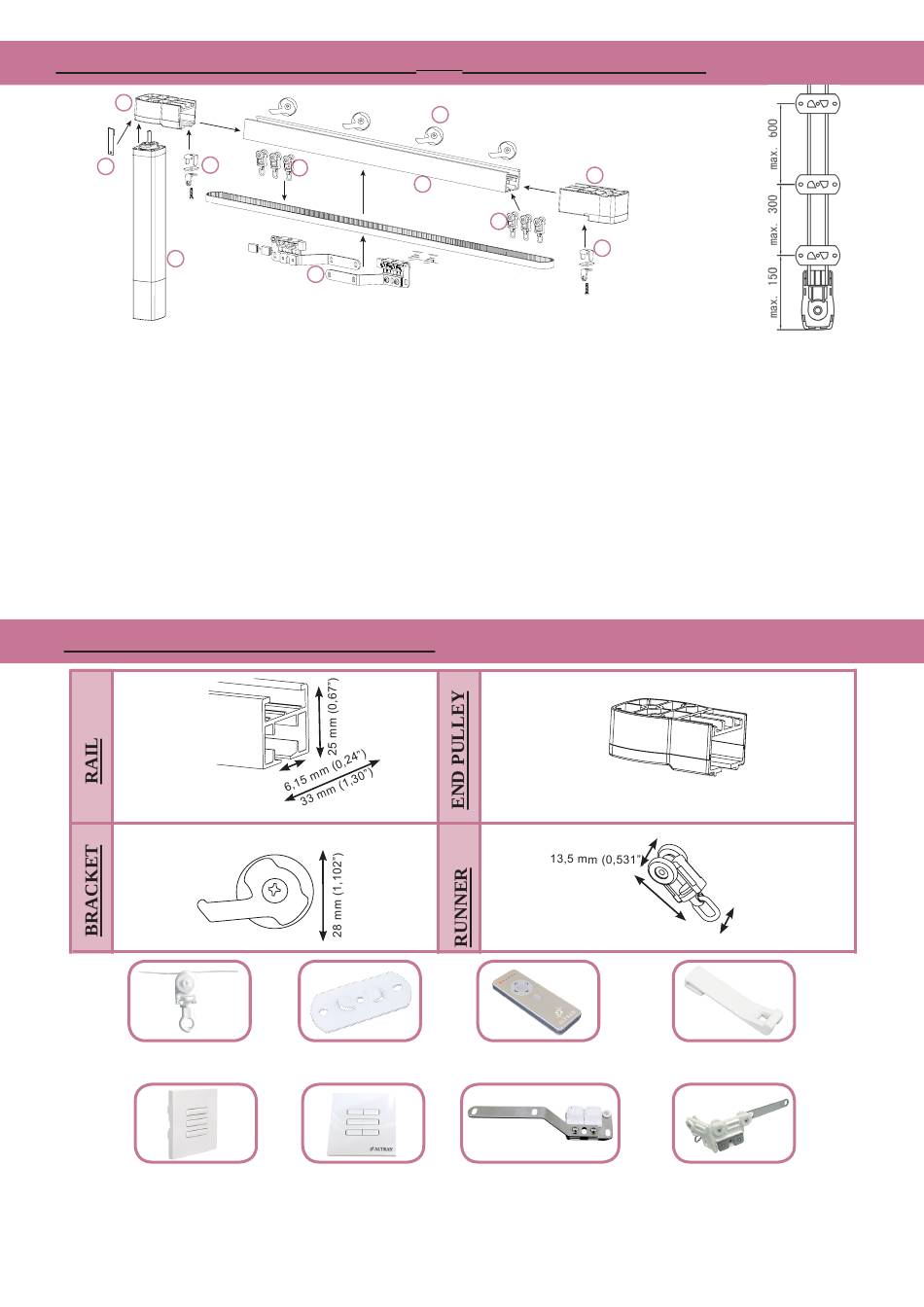

1. Aluminium profile RM09.
2. Plastic wheeled runner with metal hooks to improve
resistance and reliability.
3. End pulley (it may differ depending on the motor
chosen).
4. Master carrier for different opening modes (central,
right or left directions).
5. Swivel ceiling bracket (easy quick installation extra
strong brackets are also available). 1 bracket each 60
cm is recommended. Some additional brackets in the
fabric collection side are recommended.
6. End pulling stop (Ref. J.R104). It sets the end limit
CONTENIDO PRINCIPAL DEL CONJUNTO
Ref. J.R101
Extruded Aluminium
Theoretical Weight: 575 g/ml
Ref. J.R107
Corded Wheeled runner for perfect wave
Space 60mm D.115 / Space 80mm D.116
2 channels wireless wall
switch J.R127
ALTRAN SOLUTIONS SL
Ctra. Valencia-Ademuz, Km 21,9.
46181 · Benissanó · Valencia · SPAIN
L-BATERÍA MOTORIZADO
09-43
5
2
1
4
Extrastrong bracket
Ref. J.R108
2 channels wall switch
J R125
3
2
6
of the curtain. With a hole to connect the last but one
curtain hook and avoid any forcing in the static hook of
the end pulley. (Ref. J.R110).
7. Static hook for end pulley. (Ref. J.R110) as an option.
Easy to install in the same end pulley, it permits the
fabric to cover up the motor.
8. Motor. Refer to our catalogue (motorized tracks section)
for models, options and specific features of each motor,
depending on specific installation needs.
Ref. J.R122
The end pulley differs on the motor chosen. Refer to our cata-
logue for different motorized options.
Ref. J.R106
37 mm (1,456")
7 channels remote control
Ref. R.113
Master carrier
Ref. J.R105
15 mm (0,590")
Static hook for end pulley
Ref. J.R110
Master carrier for curved
rails J.R114
